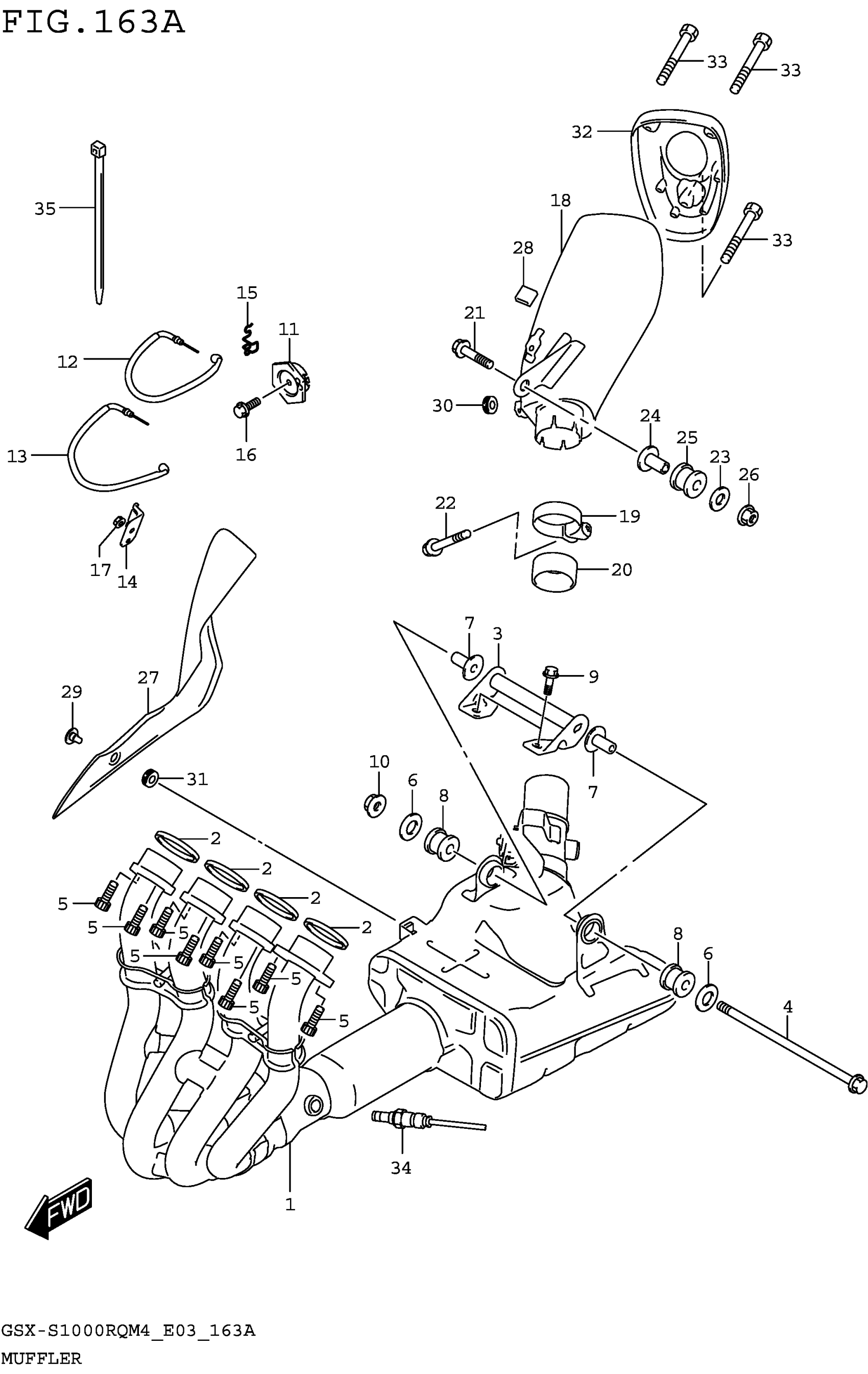

Suzuki GSX-S1000RQM4 (2024) MUFFLER (GSX-S1000RQM4 E03) Diagram

#

Description
Price

1

EXHAUST

14100-48K30

$3,021.52

2

.GASKET,EXHAUST PIPE

14181-04K00

$7.59

3

BRACKET, EXH SPRT

14770-04K00

$29.50

4

BOLT (8X200)

09103-08464

$12.15

5

BOLT (8X25)

09106-08178

$2.97

6

WASHER (8.5X30X2.3)

09160-08503

$2.53

7

SPACER (8.6X12X24.2)

09180-08152

$5.26

8

CUSHION (12X30X24)

09320-12077

$10.78

9

BOLT (8X20)

09135-08007

$3.18

10

NUT

08316-1008A

$2.47

11

PULLEY,CONTROLLER

11269-18G01

$32.50

12

CABLE, EXH VALVE NO.1

11276-48K00

$52.85

13

CABLE, EXH VALVE NO.2

11277-48K00

$53.98

14

BRACKET,EXHAUST VALVE CABLE

14250-21H00

$11.18

15

GUIDE,EXHAUST VALVE CABLE

14252-14J00

$8.32

16

BOLT

01547-0516A

$1.68

17

NUT (6X12)

08316-1006A

$2.19

18

BODY, MUFFLER

14310-48K00-H01

$536.63

19

CLAMP,MUFFLER CONNECTOR

14459-47H00

$27.51

20

CONNECTOR,MUFFLER

14771-24F01

$34.07

21

BOLT (8X45)

09106-08164

$6.95

22

BOLT (8X40)

09106-08162

$5.17

23

WASHER (8.5X30X2.3)

09160-08503

$2.53

24

SPACER (8.6X12X24.2)

09180-08152

$5.26

25

CUSHION (12X30X24)

09320-12048

$4.62

26

NUT

08316-1008A

$2.47

27

COVER, MUF FR

14780-48K00

$282.80

28

GROMMET

14795-10FA0

$5.26

29

SCREW (6X12)

09139-06124

$4.92

30

CUSHION

09320-04011

$6.75

31

CUSHION (8.4X18X6)

09320-08066

$7.44

32

COVER, MUF RR

14791-04K12

$97.02

33

BOLT

09116-06528

$5.27

34

SENSOR,OXYGEN

18213-04K00

$351.27

35

CLAMP (L:145)

09407-14407

$2.80
