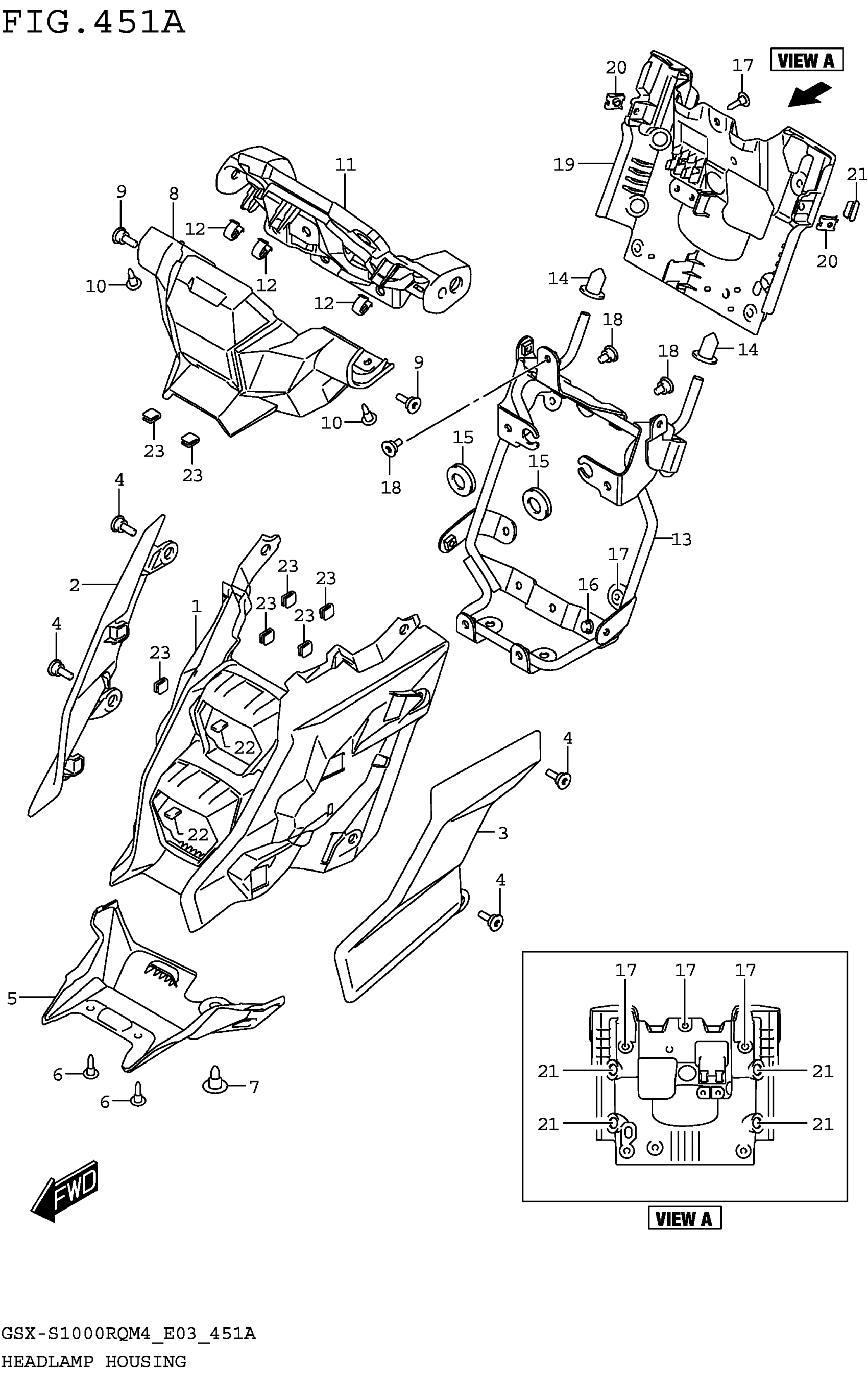

Suzuki GSX-S1000RQM4 (2024) HEADLAMP HOUSING Diagram

#

Description
Price

1

COVER,HEADLAMP FR

51831-48K01

$72.18

2-1

COVER,HEADLAMP,R (BLUE)

51821-48K00-YSF

$53.15

2-2

COVER,HEADLAMP,R (BLACK)

51821-48K00-YVB

$53.15

2-3

COVER, HEADLAMP RH (SILVER)

51821-48K00-QKA

$45.53

3-1

COVER,HEADLAMP,L (BLUE)

51822-48K00-YSF

$53.15

3-2

COVER,HEADLAMP,L (BLACK)

51822-48K00-YVB

$53.15

3-3

COVER, HEADLAMP LH (SILVER)

51822-48K00-QKA

$45.53

4

SCREW (5X18)

09139-05105

$2.63

5

COVER,HEADLAMP LWR

51823-48K00

$17.60

6

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

7

CLIP (D:2.4,ID:23.7)

09409-07333

$2.31

8

COVER,METER

51811-48K00

$40.82

9

SCREW (5X18)

09139-05105

$2.63

10

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

11

BRACKET,METER

51861-48K00

$65.93

12

CLIP (10.5X14.3)

09409-08326

$2.48

13

BRACE COMP,HEAD This part replaces 51850-48K00.

51850-48K01

$128.85

14

CUSHION,HEADLAMP BRACE

51831-21D00

$4.58

15

CUSHION (8X26X7)

09320-08028

$3.04

16

BOLT

01547-0616A

$2.03

17

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

18

SCREW (5X13)

09139-05092

$2.25

19

COVER,HEADLAMP REAR

51841-48K00

$39.03

20

NUT (M5)

09148-05052

$3.37

21

PLUG (D1:12,D2:17)

09250-12005

$1.65

22

CUSHION (30X30X2)

44885-44AA0

$3.18

23

PAD (8X20X2)

73415-70A00

$1.56
