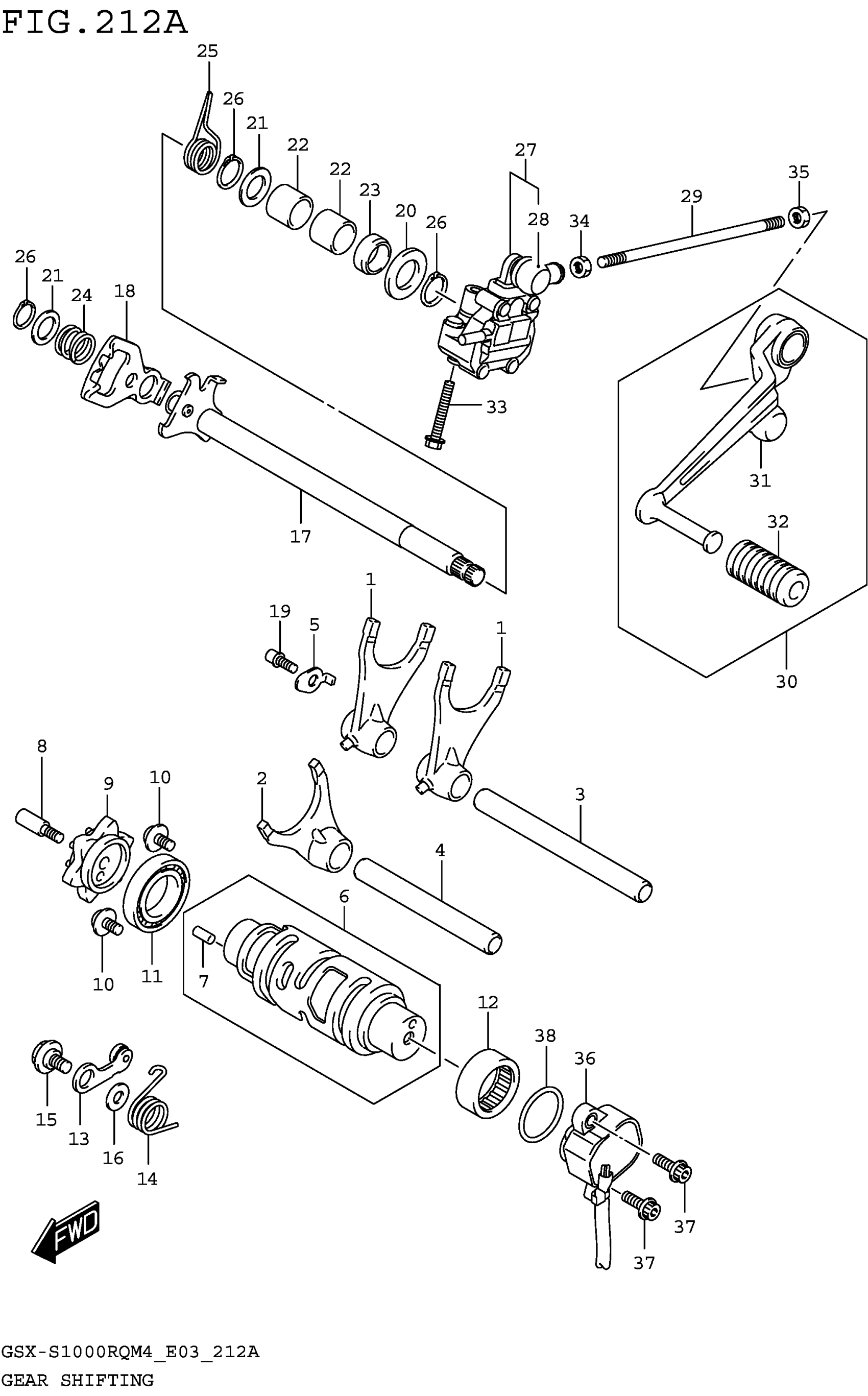

Suzuki GSX-S1000RQM4 (2024) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-35F11

$86.59

2

FORK, GEAR SHIFT NO.3

25231-35F11

$105.82

3

SHAFT,SHIFT FORK NO.2 (L:132)

25411-24F00

$29.10

4

SHAFT,GEAR SHIFT FORK (L:110)

25411-26D01

$25.68

5

RETAINER, GEAR SHIFT FORK | SHAFT

25451-35F00

$6.05

6

CAM, GEAR SHIFT

25310-40F10

$162.52

7

PIN (4X13.8)

04221-04089

$1.49

8

BOLT,GEAR SHIFT CAM PLATE

25312-17K00

$23.08

9

PLATE,GEAR SHIFT CAM

25381-17K00

$43.73

10

SCREW (6X12)

09136-06147

$3.20

11

BEARING (25X47X8)

09262-25006

$25.54

12

BEARING (25X32X12)

09263-25018

$21.39

13

STOPPER, SHIFT CAM

25350-35F00

$34.15

14

SPRING,SHIFT

25355-35F01

$3.97

15

BOLT (6X14.3)

09111-06041

$2.61

16

WASHER

08211-06141

$1.59

17

SHAFT, GEAR SHIFT

25510-48K00

$66.93

18

PLATE,GEAR SHIFT CAM DRIVE

25512-06G20

$24.37

19

STOPPER, GEAR SHIFT ARM

25671-35F00

$4.58

20

WASHER (14X29X0.8)

09160-14016

$1.93

21

SHIM (14X22X1.0)

09181-14167

$2.53

22

BEARING (14X20X12)

09263-14027

$13.52

23

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.70

24

SPRING

09440-17009

$1.71

25

SPRING

09444-20003

$6.13

26

CIRCLIP

08331-3114A

$1.91

27

SENSOR ASSY, GEAR SHIFT

25500-48K00

$674.48

28

.COVER, DUST

25526-47001

$5.44

29

ROD, GEAR SHIFT LINK

25525-24F10

$10.97

30

LEVER ASSY, GEAR SHIFT

25600-04K11

$100.83

31

.COVER, DUST

25526-47001

$5.44

32

.RUBBER,GEAR SHIFT PEDAL

25652-20C00

$5.44

33

BOLT (L:45)

09103-06532

$2.18

34

NUT

08310-0006B

$2.34

35

NUT

09140-06032

Unavailable

36

SENSOR ASSY, GEAR POSITION

37730-48K00

$133.27

37

BOLT (5X16)

09106-05023

$2.92

38

O-RING (D:2.4,ID:26.2)

09280-26005

$2.30
