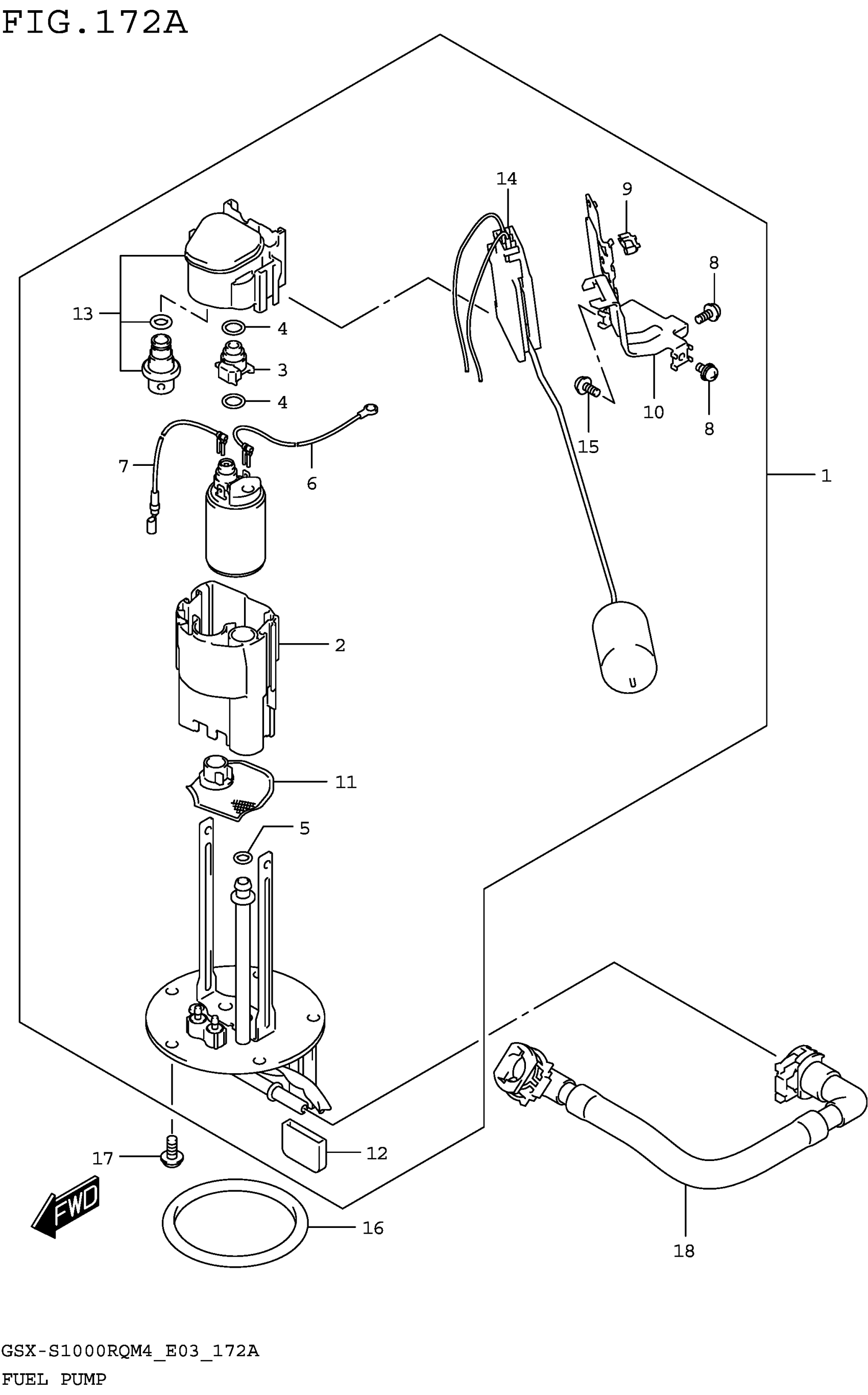

Suzuki GSX-S1000RQM4 (2024) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, FUEL

15100-48K00

$544.03

2

.CUP

15111-27G00

$47.88

3

.JOINT

15112-05H00

$31.73

4

.O-RING

15113-05H00

$18.81

5

.O-RING

15113-35F00

$8.15

6

.WIRE,EARTH

15114-14J00

Unavailable

7

.WIRE,LEAD

15115-08J00

Unavailable

8

.SCREW

15116-10F00

$6.30

9

.SADDLE, EDGE

15119-08J00

Unavailable

10

.BRACKET, FUEL GAUGE

15181-04K00

$42.78

11

.STRAINER,FUEL PUMP

15420-31J00

$46.87

12

.CAP, STAY

15583-18H00

Unavailable

13

.REGULATOR,FUEL

15610-14J00

$159.78

14

.GAUGE ASSY, FUEL LEVEL SENDE

34810-48K00

$122.27

15

.SCREW

15116-31J00

Unavailable

16

O-RING

15201-35F00

$25.27

17

BOLT

07120-0612A

$2.50

18

HOSE, FUEL

15810-04K01

$71.60
