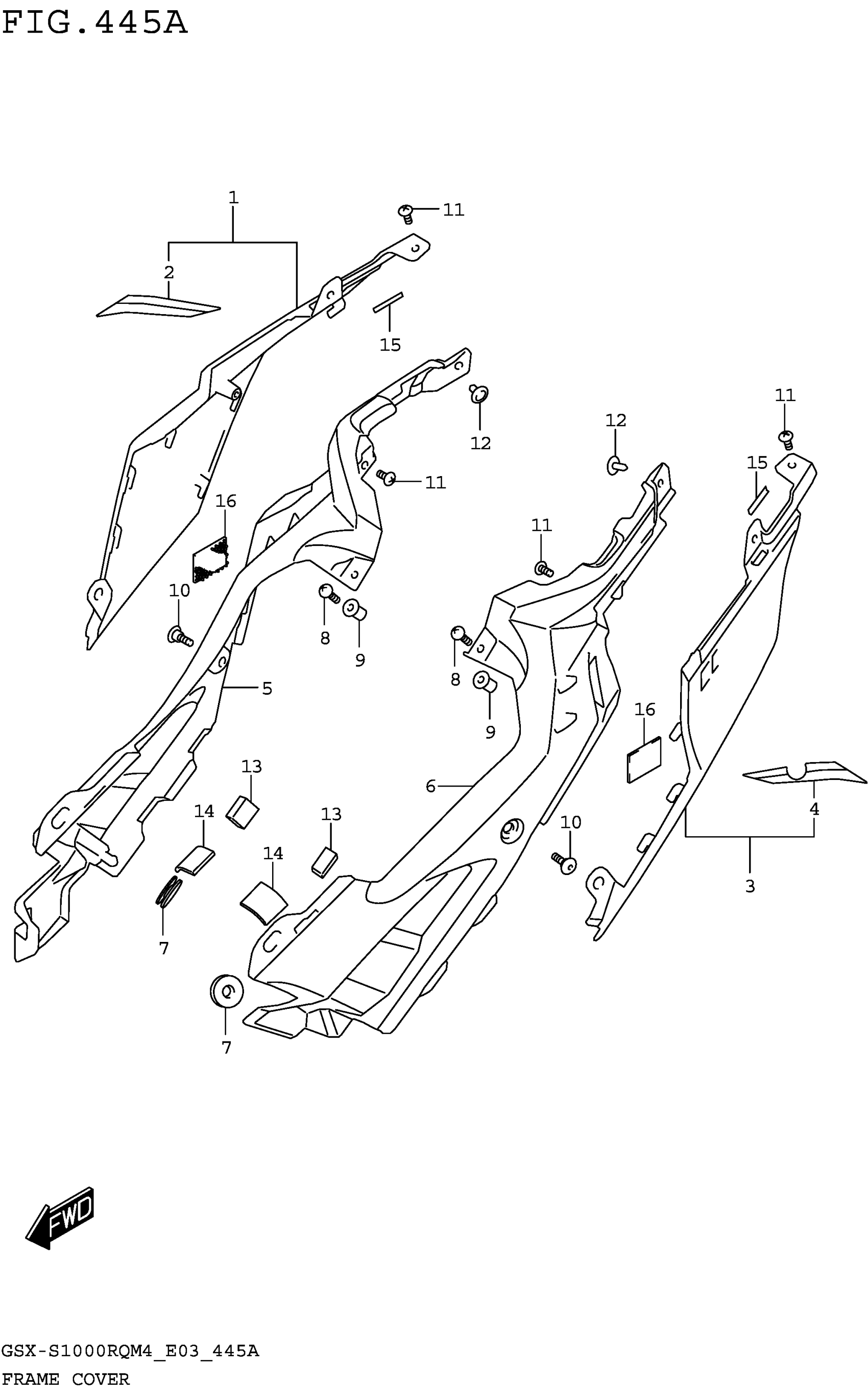

Suzuki GSX-S1000RQM4 (2024) FRAME COVER Diagram

#

Description
Price

1-1

COVER, FRAME RR UPR RH (WHITE | FOR YSF

47130-48K10-YUH

$41.12

1-2

COVER, FRAME RR UPR RH (BLACK | FOR YVB

47130-48K10-YKV

$41.12

1-3

COVER, FRAME RR UPR RH (RED) | FOR QKA

47130-48K10-YYG

$41.12

2-1

.TAPE, FRAME COVER RR UPR RH | (BLUE/WHITE) FOR YSF

68135-48K30-CQV

$27.77

2-2

.TAPE, FRAME COVER RR UPR RH | (BLACK/GRAY) FOR YVB

68135-48K30-CB4

$19.69

2-3

.TAPE, FRAME COVER RR UPR RH | FOR QKA

68135-48K30-A7Q

$27.77

3-1

COVER, FRAME RR UPR LH (WHITE | FOR YSF

47230-48K10-YUH

$41.12

3-2

COVER, FRAME RR UPR LH (BLACK | FOR YVB

47230-48K10-YKV

$41.12

3-3

COVER, FRAME RR UPR LH (RED) | FOR QKA

47230-48K10-YYG

$41.12

4-1

.TAPE, FRAME COVER RR UPR LH | (BLUE/WHITE) FOR YSF

68145-48K30-CQV

$27.77

4-2

.TAPE, FRAME COVER RR UPR LH | (BLACK/GRAY) FOR YVB

68145-48K30-CB4

$19.69

4-3

.TAPE, FRAME COVER RR UPR LH | FOR QKA

68145-48K30-A7Q

$27.77

5

COVER,FRAME,R

47121-48K00

$74.10

6

COVER,FRAME,L

47221-48K00

$74.10

7

CUSHION (8X26X7)

09320-08028

$2.80

8

SCREW

02142-1520B

$2.34

9

NUT (M5)

09159-05019

$6.44

10

SCREW (5X18)

09139-05094

$3.95

11

SCREW

03541-0512B

$1.77

12

CLIP

09409-06328

$2.92

13

CUSHION This part replaces 17129-16F00.

17798-39G00

$6.12

14

PROTECTOR,BATTERY (30X25X3)

33652-39000

$2.23

15

TAPE (6X25X0.13)

94443-06G00

$2.97

16

FASTENER (33X25X2.6)

44572-13G00

$10.13
