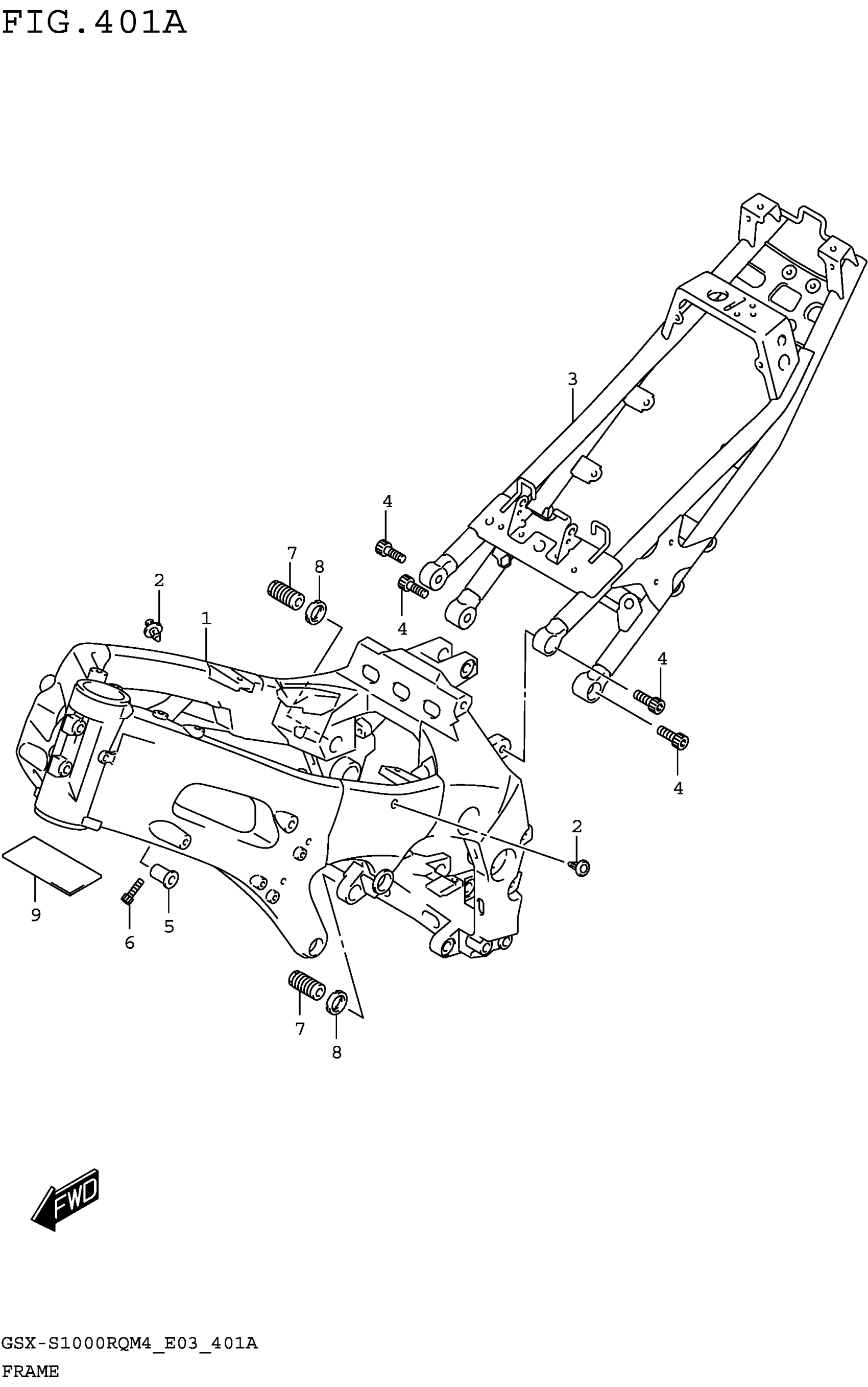

Suzuki GSX-S1000RQM4 (2024) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-04K11-YAP

$2,601.07

2

PLUG, TANK RAIL

43585-01H01

$4.78

3

RAIL,SEAT (SILVER)

41200-04K20-YD8

$634.58

4

BOLT

07120-1030A

$2.92

5

SPACER,ENGINE MOUNTING

41911-40F01

$22.56

6

BOLT (8X32)

09106-08185

$2.73

7

BOLT,CRANK CASE ADJUST LWR

41921-16G10

$10.32

8

NUT,CRANK CASE ADJUST LWR

41922-33E20

Unavailable

9

CUSHION, FRAME HEAD

41139-21H10

Unavailable
