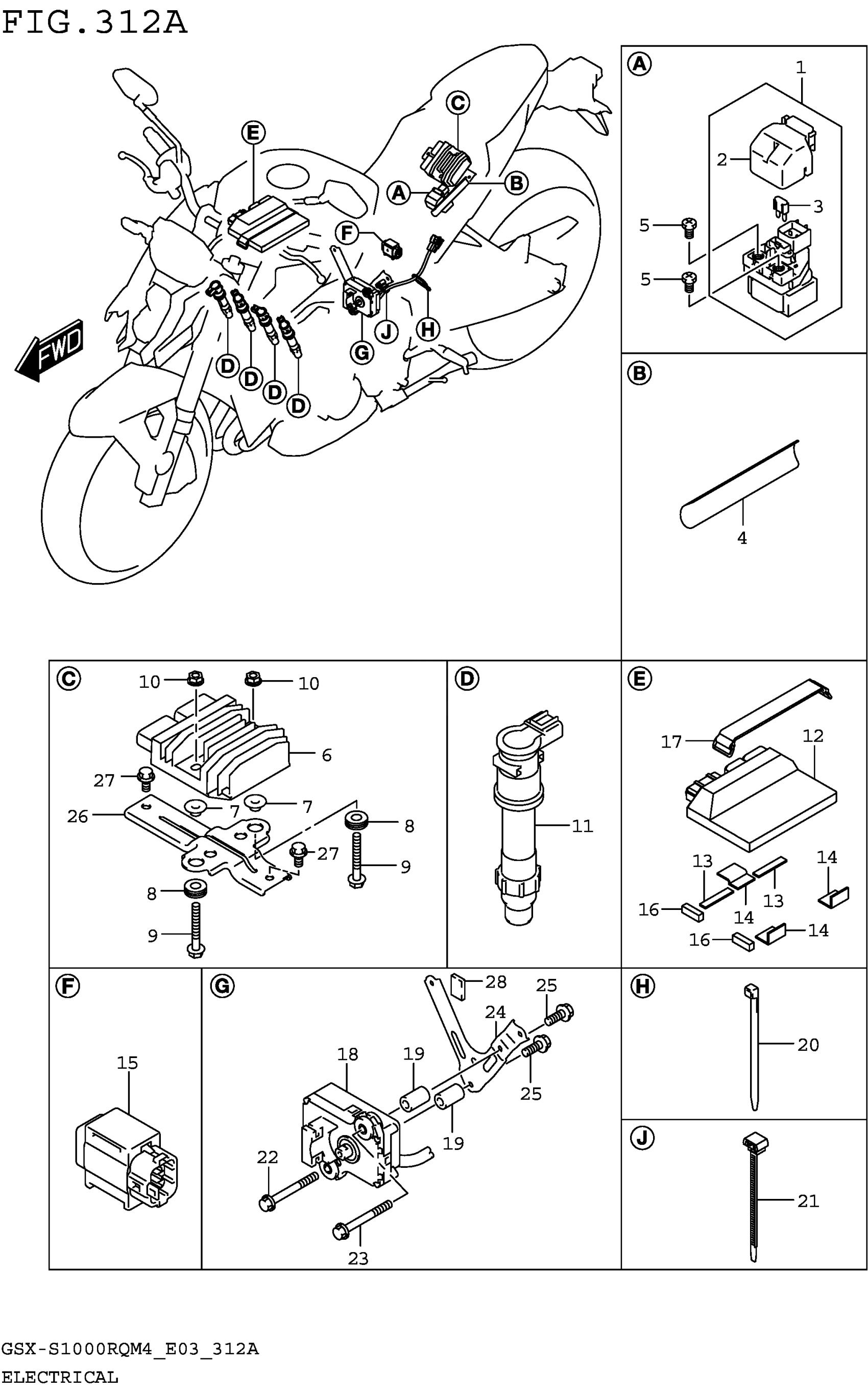

Suzuki GSX-S1000RQM4 (2024) ELECTRICAL (GSX-S1000RQM4 E03) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR

31800-38G10

$89.07

2

.COVER

31861-38G00

$5.52

3

.FUSE (30A)

09481-30501

$2.34

4

TAPE,SEAT LOWER COVER

45414-38G00

Unavailable

5

SCREW (6X8)

09128-06013

$1.24

6

RECTIFIER ASSY

32800-26J10

$216.67

7

SPACER (6.2X8.4X10.9)

09180-06331

$5.17

8

CUSHION (8X18X10)

09320-08501

$2.95

9

BOLT

01550-0635A

$2.31

10

NUT (6X12)

08316-1006A

$2.19

11

COIL ASSY, IGNITION

33410-47H00

$142.15

12

HARDWARE, FI CONTROL UNIT

32910-48K00

$1,008.50

13

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.17

14

CUSHION (30X40X2.0)

33652-36100

$2.56

15

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

16

CUSHION,TANK COVER FR (10X30X | (10X30X8)

44277-18K00

$2.80

17

BAND

09462-00015

$12.07

18

ACTUATOR ASSY, EXHAUST CONTRO

33970-48G02

$451.38

19

SPACER (6.2X14.5X26)

09180-06345

$11.17

20

CLAMP (L:145)

09407-14407

$2.80

21

CLAMP

09407-14413

Unavailable

22

BOLT

01550-0650A

$3.10

23

BOLT

01550-0655A

Unavailable

24

BRACKET, ACTUATOR

47420-04K00

Unavailable

25

BOLT

01547-0616A

$2.01

26

BRACKET,ELECTRIC PARTS

47431-04K01

$16.80

27

BOLT

01550-0612A

$1.97

28

CUSHION

65742-48K00

$6.80
