Description

Price

1

WASHER (25X54X2.4)

09160-25073

$15.75

2

BEARING (35X40X35.8)

09263-35017

$38.42

3

GEAR ASSY, PRI DRIVEN (NT:73)

21200-40880

$578.83

4

HUB, CLUTCH SLEEVE

21411-48K00

$108.26

5

SPRING, CLUTCH

21413-48K00

$2.80

6

.SEAT,CLUTCH SPRING

21415-31J00

$17.43

7

.PLATE,CLUTCH DRIVE NO.1 (T:2 | (T:2.8)

21441-36F50

$26.85

8

.PLATE,CLUTCH DRIVE NO.2 (T:2 | (T:2.8)

21442-41G20

$34.48

9

PLATE, CLUTCH DRIVEN NO.3 | (T:2.3)

21452-48K00

$9.77

10

PLATE, CLUTCH DRIVEN (T:2.3)

21451-41G00

$13.42

11

PLATE, CLUTCH DRIVEN NO.2 | (T:2.3)

21451-41G40

$18.80

12

DISC, CLUTCH PRESSURE

21462-48K00

$94.48

13

SEAT, WAVE WASHER

21471-41G10

$11.28

14

.WASHER,CLUTCH PLATE WAVE

21472-41G20

$19.64

15

.BOLT,CLUTCH SPRING

21412-31J00

$4.63

16

PLATE,STOPPER

21414-17K00

$17.87

17

NUT

09159-24010

$12.27

18

.WASHER (25X50X2.5)

09160-25056

$10.94

19

SHIM (25X38X1)

09181-25223

$3.00

20

WASHER (24.2X35X2.7)

09164-24008

$5.00

21

ROD,CLUTCH PUSH,R

23110-38B00

$22.18

22

ROD,CLUTCH PUSH,L

23111-35F00

$12.73

23

PIECE,CLUTCH PUSH

23121-41G30

$64.45

24

CAMSHAFT,CLUTCH RELEASE

23122-41G10

$66.67

25

CAP,CLUTCH PUSH ROD

23123-41G00

$10.46

26

SPRING,CLUTCH RELEASE RETURN

23125-41G00

$3.11

27

ARM, CLUTCH RELEASE

23271-41G60

$62.70

28

BOLT (6X20)

09103-06527

$2.07

29

SCREW (6X73)

09134-06015

$6.44

30

WASHER (10.5X24X1.0)

09160-10020

$1.93

31

WASHER (15.5X28X1)

09160-15045

$3.62

32

BEARING (15X28X2)

09263-15003

$7.70

33

BEARING (10X14X10)

09263-10014

$12.57

34

BEARING (12X18X12)

09263-12027

$6.79

35

SEAL,OIL (10X20X6)

09282-10012

$7.42

36

SEAL,OIL

09283-06013

$12.23

37

SEAL,OIL (10X17X5)

09285-10004

$3.13

38

NUT

08310-0006A

$1.89

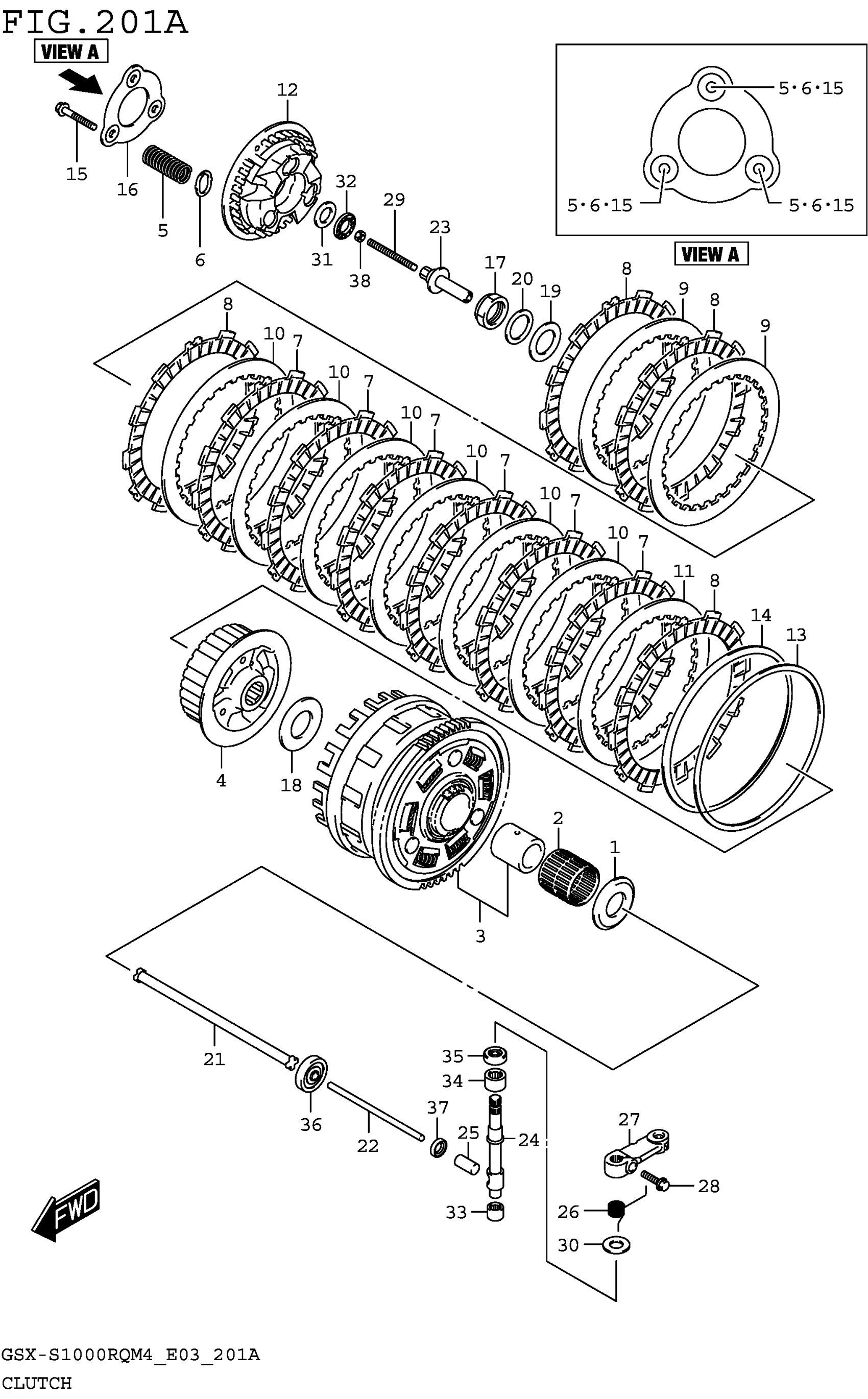

Suzuki GSX-S1000RQM4 (2024) CLUTCH Diagram
