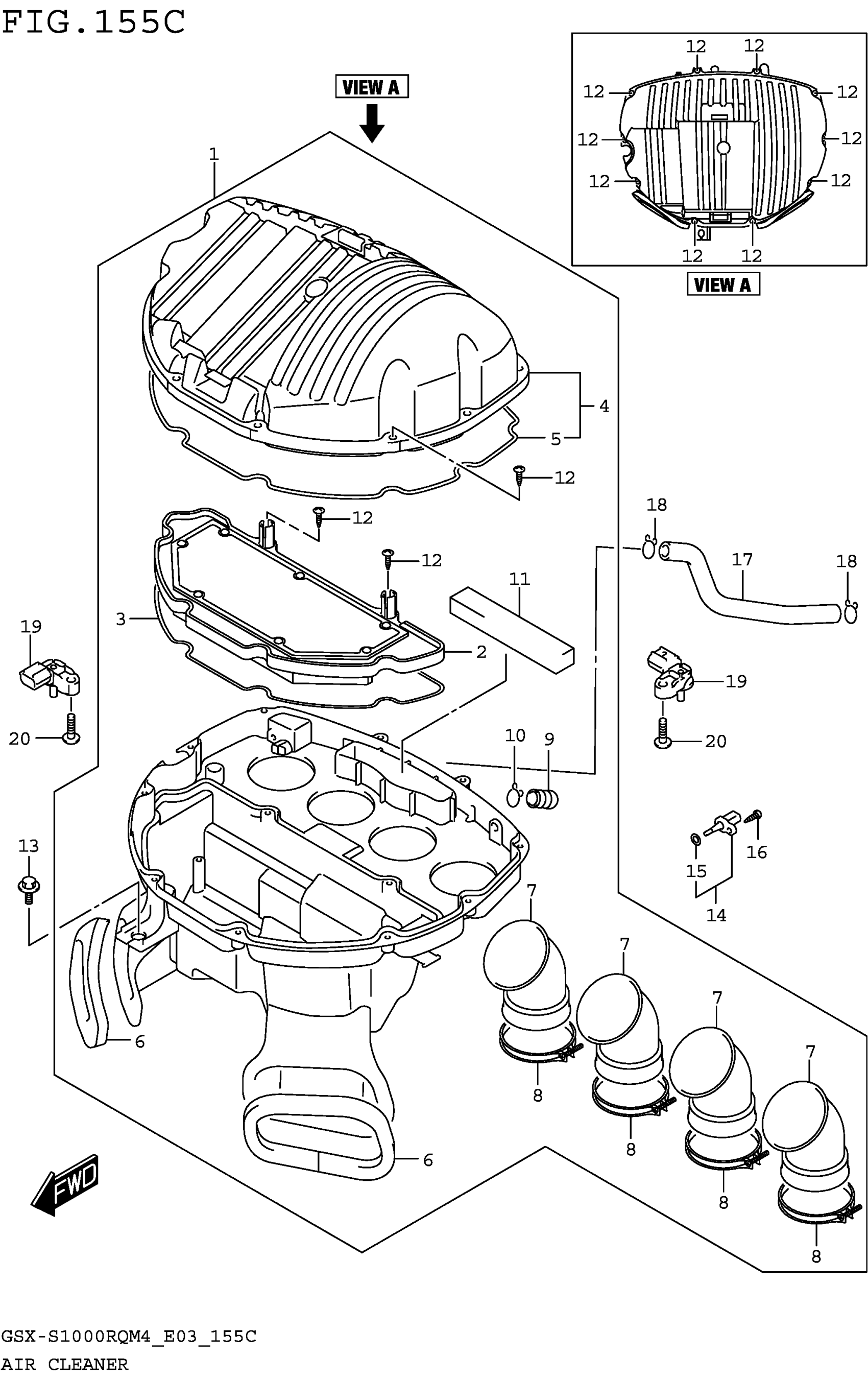

Suzuki GSX-S1000RQM4 (2024) AIR CLEANER (GSX-S1000RQM4 E33) Diagram

Description

Price

CLEANER ASSY, AIR

13700-48K00

$273.87

.FILTER ASSY

13780-48K00

$62.76

.GASKET FILTER

13756-48K00

$14.88

.CAP, AIR CLEANER

13740-48K00

$57.07

..GASKET, CAP

13746-48K00

$17.45

.CUSHION, DUCT

13736-48K00

$8.33

.TUBE, OUTLET

13881-48K00

$18.48

CLAMP,INTAKE PIPE

13827-40H01

$15.37

.PLUG

13878-10G01

$4.93

.CLIP

09401-14301

$2.35

.FILTER BREATHER

13788-48K00

$4.57

SCREW

03541-0520A

$1.80

BOLT (6X16)

09111-06089

$2.62

SENSOR,AIR TEMP

13650-41F10

$63.25

O-RING

13655-41F10

Unavailable

SCREW

03511-0516A

$1.86

HOSE, BREATHER

13853-04K01

$13.63

.CLIP (ID:14.5)

09401-14101

$2.34

SENSOR,BOOST

18590-18K10

$211.13

SCREW

03541-0520A

$1.80
