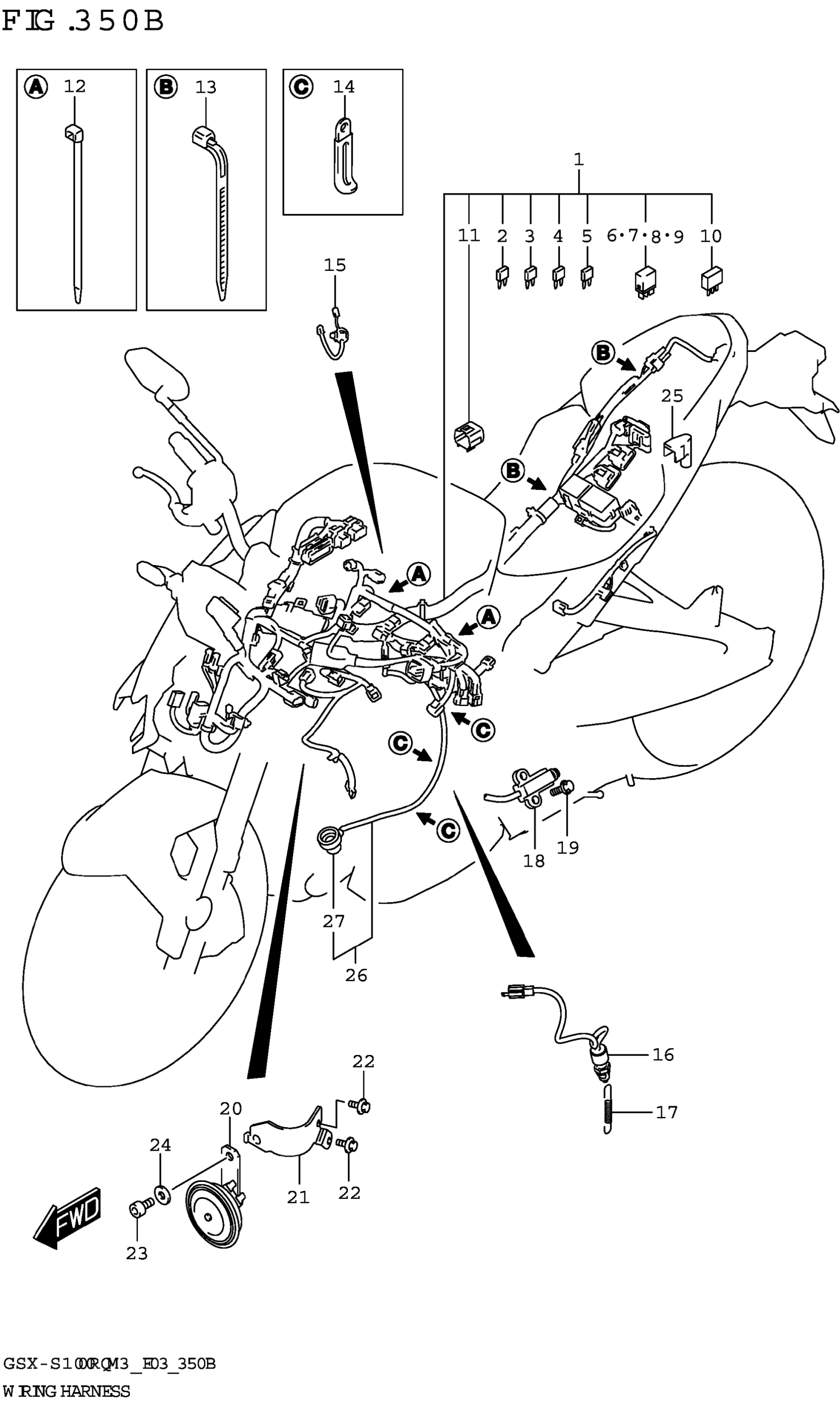

Suzuki GSX-S1000RQM3 (2023) WIRING HARNESS (E33) Diagram

#

Description
Price

1

HARNESS,WIRING

36610-48KK0

$849.83

2

.FUSE (3A)

09481-03501

$2.25

3

.FUSE (10A)

09481-10504

$2.06

4

.FUSE (15A)

09481-15504

$2.07

5

.FUSE (20A)

09481-20504

$1.92

6

.RELAY ASSY | FOR FUEL PUMP

38860-76F01

$34.37

7

.RELAY ASSY | FOR FAN MOTOR

38860-76F01

$34.37

8

.RELAY ASSY | FOR STARTER

38860-76F01

$34.37

9

.RELAY ASSY | FOR HORN

38860-76F01

$34.37

10

.DIODE

36611-38A10

$13.16

11

CAP,OBD CONNECTOR

36654-28K00

$8.72

12

CLAMP (L:145)

09407-14407

$3.57

13

CLAMP (L:165)

09407-18402

$2.19

14

CLAMP, OIL PRESS LEAD

36651-07L00

$13.92

15

WIRE, FAN MOTOR LEAD

36852-10L00

$30.72

16

SWITCH ASSY,STOP LAMP

37740-31D10

$20.75

17

SPRING

09443-06054

$3.85

18

SWITCH ASSY, SIDE STAND

37840-48K00

$100.02

19

BOLT (6X20)

01550-0620A

$1.97

20

HORN ASSY

38500-48K00

$39.55

21

PLATE, HORN

38590-04K10

$13.38

22

BOLT (6X16)

09116-06006

$1.86

23

BOLT

07130-0812A

$3.72

24

WASHER (8.5X22X2.0)

09160-08127

$2.12

25

CAP,OBD CONNECTOR

36654-28K00

$8.72

26

WIRE, OIL PRESSURE SWITCH LEA

36851-48K00

$15.95

27

.CAP,OIL PRESSURE SWITCH

36618-31J00

Unavailable
