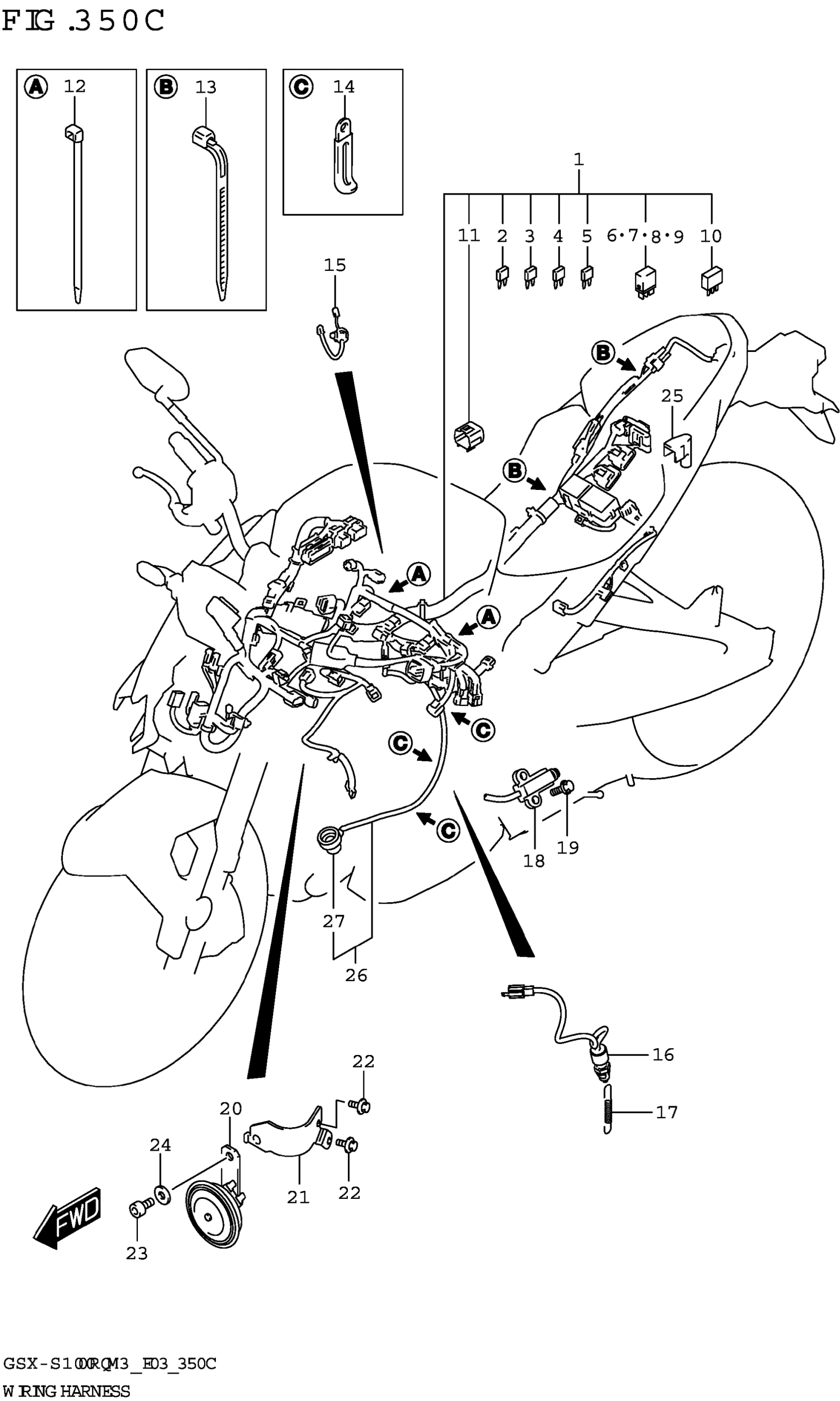

Suzuki GSX-S1000RQM3 (2023) WIRING HARNESS (E03,E28) Diagram

#

Description
Price

1

HARNESS,WIRING

36610-48KL0

$927.85

2

.FUSE (3A)

09481-03501

$2.45

3

.FUSE (10A)

09481-10504

$2.04

4

.FUSE (15A)

09481-15504

$2.57

5

.FUSE (20A)

09481-20504

$2.08

6

.RELAY ASSY | FOR FUEL PUMP

38860-76F01

$31.02

7

.RELAY ASSY | FOR FAN MOTOR

38860-76F01

$31.02

8

.RELAY ASSY | FOR STARTER

38860-76F01

$31.02

9

.RELAY ASSY | FOR HORN

38860-76F01

$31.02

10

.DIODE

36611-38A10

$12.39

11

CAP,OBD CONNECTOR

36654-28K00

$9.85

12

CLAMP (L:145)

09407-14407

$2.80

13

CLAMP (L:165)

09407-18402

$2.21

14

CLAMP, OIL PRESS LEAD

36651-07L00

$15.70

15

WIRE, FAN MOTOR LEAD

36852-10L00

$34.67

16

SWITCH ASSY,STOP LAMP

37740-31D10

$23.42

17

SPRING

09443-06054

$4.18

18

SWITCH ASSY, SIDE STAND

37840-48K00

$112.35

19

BOLT (6X20)

01550-0620A

$1.97

20

HORN ASSY

38500-48K00

$44.63

21

PLATE, HORN

38590-04K10

$15.10

22

BOLT (6X16)

09116-06006

$1.88

23

BOLT

07130-0812A

$4.03

24

WASHER (8.5X22X2.0)

09160-08127

$2.13

25

CAP,OBD CONNECTOR

36654-28K00

$9.85

26

WIRE, OIL PRESSURE SWITCH LEA

36851-48K00

$18.00

27

.CAP,OIL PRESSURE SWITCH

36618-31J00

Unavailable
