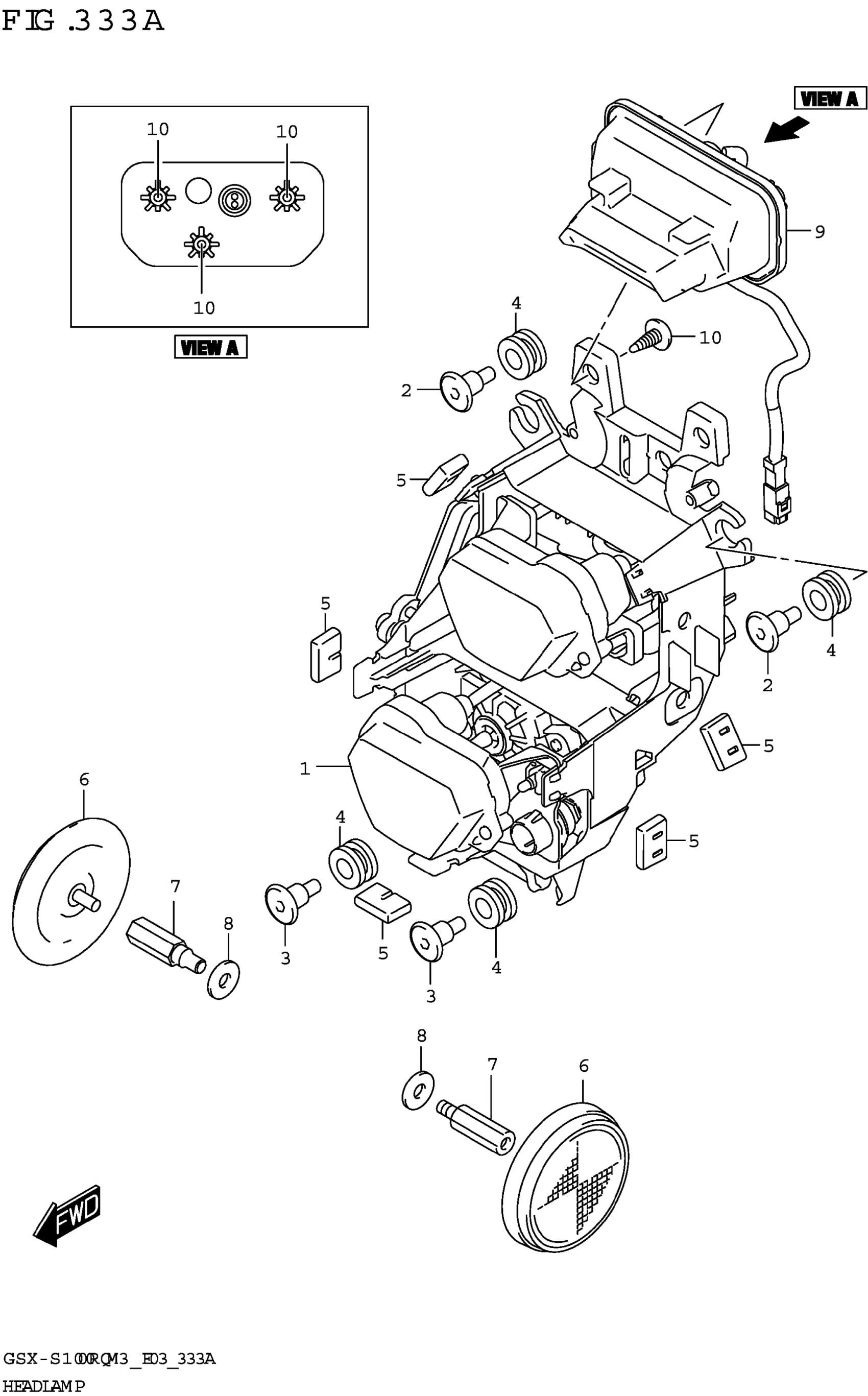

Suzuki GSX-S1000RQM3 (2023) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY This part replaces 35100-48K01.

35100-48K04

$871.52

2

SCREW (6X20)

09139-06211

$3.15

3

SCREW (6X22)

09139-06191

$3.69

4

CUSHION (9X18X10)

09320-09501

$2.06

5

CUSHION

35781-17K00

$10.92

6

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

$11.41

7

BOLT

09119-06109

$14.43

8

WASHER (8.5X18X1.0)

09160-08043

$1.81

9

LAMP ASSY,FRONT POSITION

36110-48K00

$200.33

10

SCREW

03541-0512B

$1.77
