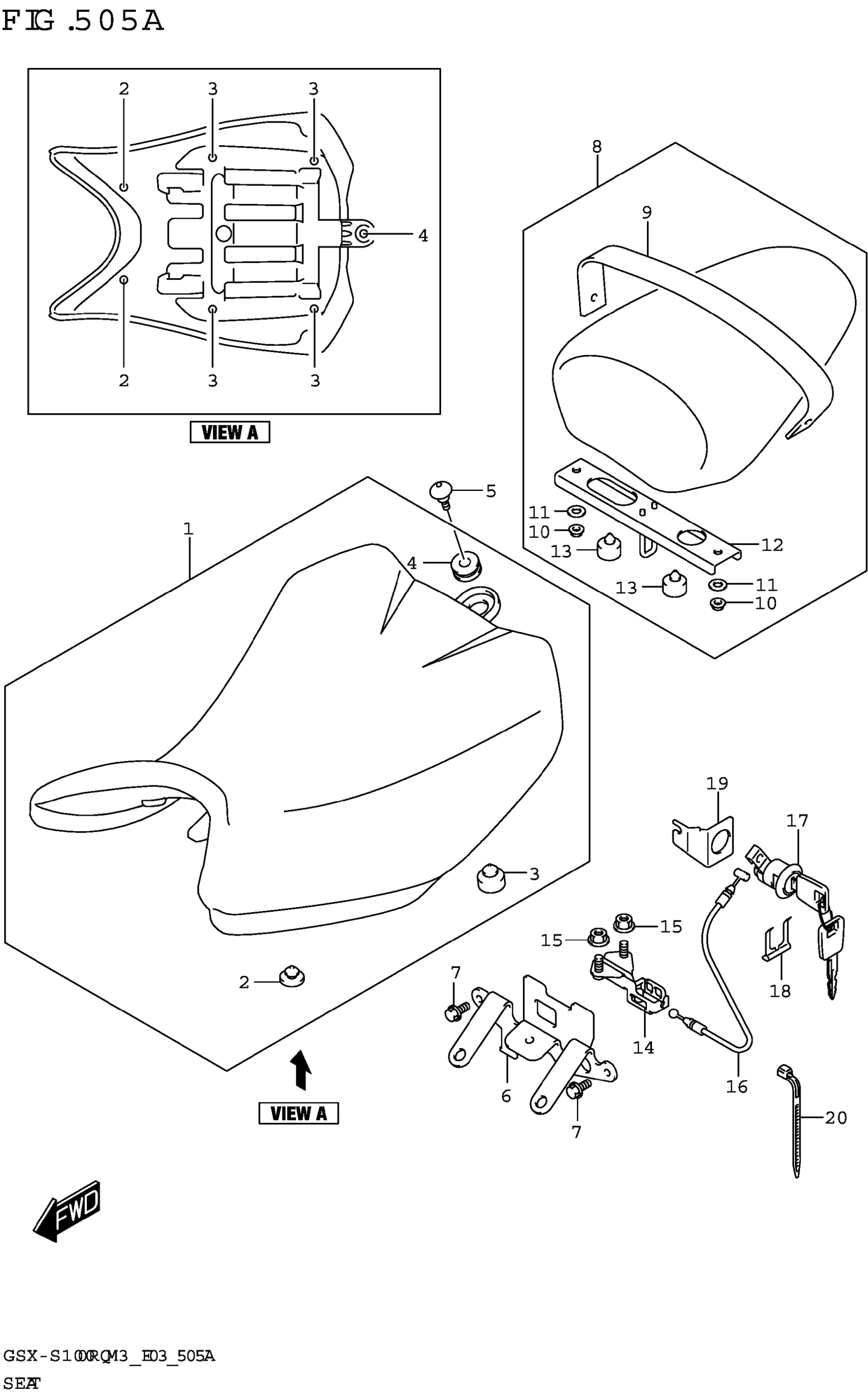

Suzuki GSX-S1000RQM3 (2023) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-48K00-DW2

$234.73

2

CUSHION

09329-10001

$2.14

3

.CUSHION

09321-10011

$2.80

4

.CUSHION,SEAT MOUNT

45148-04K00

$7.30

5

SCREW (6X20)

09139-06193

$3.82

6

BRACKET,SEAT

45120-04K11

$31.68

7

BOLT

01550-0612A

$1.97

8

SEAT ASSY,PILLION (BLACK)

45300-04K02-DW2

$277.37

9

.BAND,PILLION SEAT GRIP (BLAC | )

45380-04K01-P3H

$15.93

10

NUT (6X12)

08316-1006A

$2.19

11

.WASHER (6.5X16X1)

09160-06129

$2.50

12

.PLATE,SEAT LOCK

45291-04K01

$23.78

13

.CUSHION, SEAT MOUNT RR

45148-20G00

$10.40

14

BRACKET,STRIKER SUPPORT

45220-04K20

$35.98

15

NUT (6X12)

08316-1006A

$2.19

16

CABLE,SEAT LOCK

45280-48K10

$17.17

17

LOCK SET,SEAT

95700-14810

$98.21

18

PLATE,SEAT LOCK ASSY

45289-11F00

$5.67

19

GUIDE,SEAT LOCK CABLE

45288-14F00

$4.91

20

CLAMP (L:125)

09407-14403

$2.24
