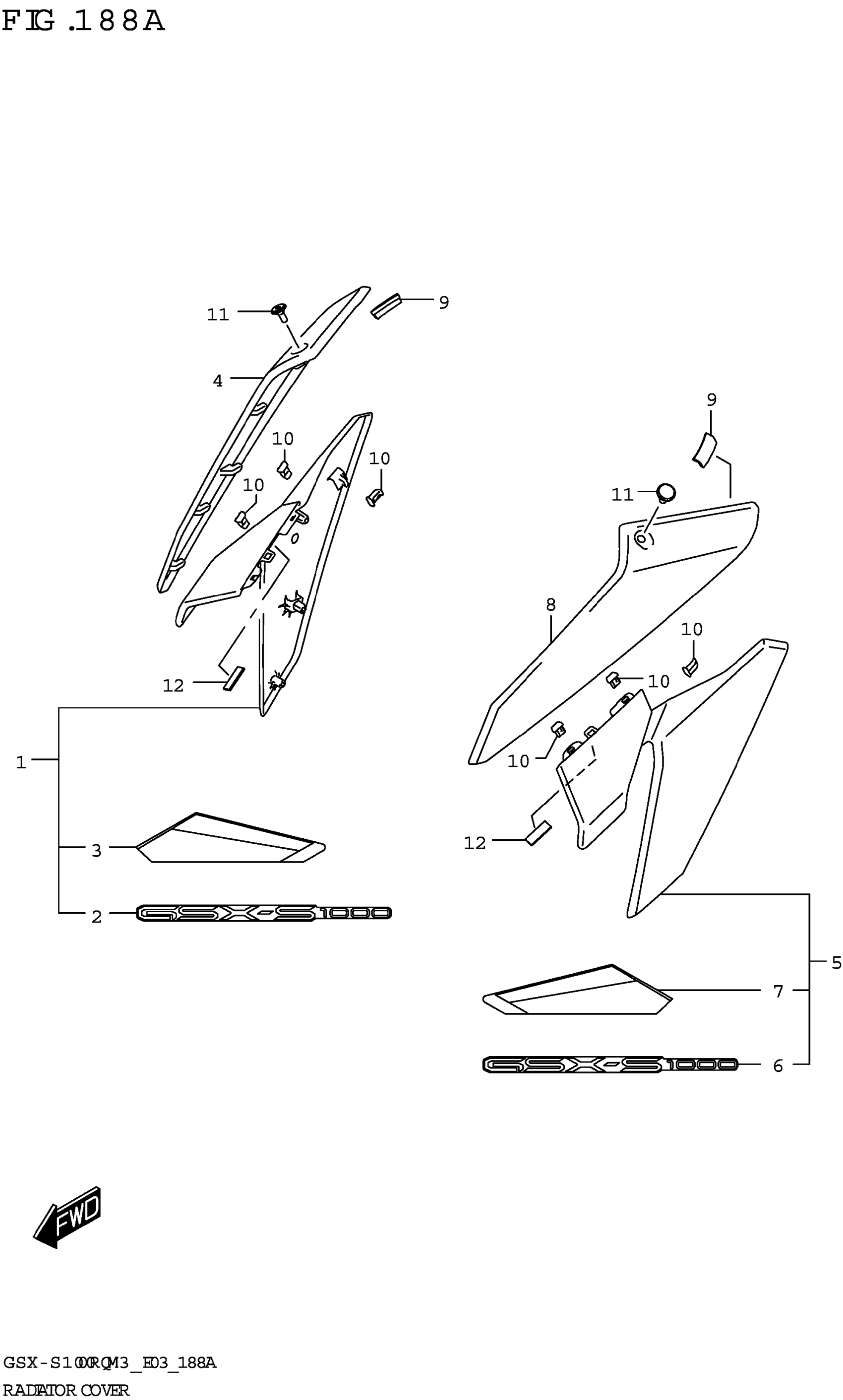

Suzuki GSX-S1000RQM3 (2023) RADIATOR COVER Diagram

#

Description
Price

1-1

COVER,FRAME BODY LWR,R (SILVE | ) BODY COLOR:YSF

47530-48K00-QKA

$139.40

1-2

COVER,FRAME BODY LWR,R (GRAY) | BODY COLOR:QT7

47530-48K00-YLF

$139.40

1-3

COVER,FRAME BODY LWR,R (BLACK | BODY COLOR:YVB

47530-48K00-YKV

$139.40

2-1

.EMBLEM,FRAME BODY COVER (BLA | K,ORANGE,GRAY,SILVER) BODY COLOR:YSF

68131-48K00-CB5

$22.25

2-2

.EMBLEM,FRAME BODY COVER (GRA | ,SILVER) BODY COLOR:QT7

68131-48K00-CB6

$22.25

2-3

.EMBLEM,FRAME BODY COVER (GRA | ,BLACK) BODY COLOR:YVB

68131-48K00-CB7

$22.25

3-1

.TAPE,FRAME BODY COVER LWR,R | YELLOW,WHITE,SILVER) BODY COLOR:YSF

68135-48K10-CBZ

$22.25

3-2

.TAPE,FRAME BODY COVER LWR,R | GRAY,SILVER) BODY COLOR:QT7

68135-48K10-CB2

$22.25

3-3

.TAPE,FRAME BODY COVER LWR,R | BLACK,GRAY) BODY COLOR:YVB

68135-48K10-CB4

$22.25

4-1

COVER,FRAME BODY UPR,R (BLUE)

47532-48K00-YSF

$63.15

4-2

COVER,FRAME BODY UPR,R (GRAY)

47532-48K00-QT7

$63.15

4-3

COVER,FRAME BODY UPR,R (BLACK

47532-48K00-YVB

$63.15

5-1

COVER,FRAME BODY LWR,L (SILVE | ) BODY COLOR:YSF

47540-48K00-QKA

$139.40

5-2

COVER,FRAME BODY LWR,L (GRAY) | BODY COLOR:QT7

47540-48K00-YLF

$139.40

5-3

COVER,FRAME BODY LWR,L (BLACK | BODY COLOR:YVB

47540-48K00-YKV

$139.40

6-1

.EMBLEM,FRAME BODY COVER (BLA | K,ORANGE,GRAY,SILVER) BODY COLOR:YSF

68131-48K00-CB5

$22.25

6-2

.EMBLEM,FRAME BODY COVER (GRA | ,SILVER) BODY COLOR:QT7

68131-48K00-CB6

$22.25

6-3

.EMBLEM,FRAME BODY COVER (GRA | ,BLACK) BODY COLOR:YVB

68131-48K00-CB7

$22.25

7-1

.TAPE,FRAME BODY COVER LWR,L | YELLOW,WHITE,SILVER) BODY COLOR:YSF

68145-48K10-CBZ

$22.25

7-2

.TAPE,FRAME BODY COVER LWR,L | GRAY,SILVER) BODY COLOR:QT7

68145-48K10-CB2

$22.25

7-3

.TAPE,FRAME BODY COVER LWR,L | BLACK,GRAY) BODY COLOR:YVB

68145-48K10-CB4

$22.25

8-1

COVER,FRAME BODY UPR,L (BLUE)

47542-48K00-YSF

$63.15

8-2

COVER,FRAME BODY UPR,L (GRAY)

47542-48K00-QT7

$63.15

8-3

COVER,FRAME BODY UPR,L (BLACK

47542-48K00-YVB

$63.15

9

CUSHION (16X30X3.5)

94633-31J00

$2.44

10

CLIP

09409-08012

$2.82

11

SCREW (5X13)

09139-05091

$2.03

12

CUSHION (10X30X2)

44894-24A00

$1.72
