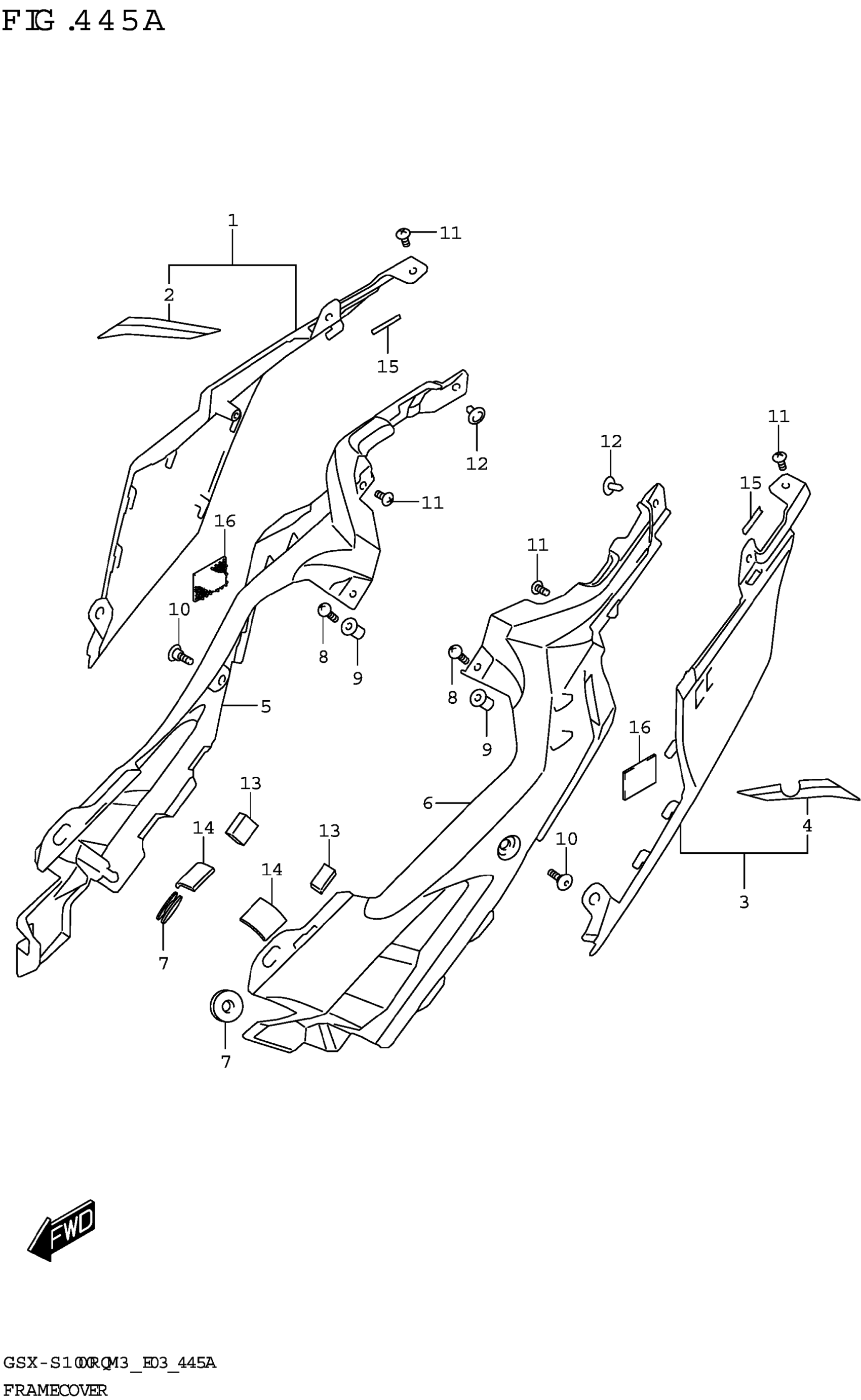

Suzuki GSX-S1000RQM3 (2023) FRAME COVER Diagram

#

Description
Price

1-1

COVER,FRAME RR UPR,R (SILVER) | BODY COLOR:YSF

47130-48K00-QKA

$47.95

1-2

COVER,FRAME RR UPR,R (GRAY) | BODY COLOR:QT7

47130-48K00-YLF

$47.95

1-3

COVER,FRAME RR UPR,R (BLACK) | BODY COLOR:YVB

47130-48K00-YKV

$47.95

2-1

.TAPE,FRAME COVER RR UPR,R (Y | LLOW,WHITE,SILVER) BODY COLOR:YSF

68135-48K00-CBZ

$25.12

2-2

.TAPE,FRAME COVER RR UPR,R (G | AY,SILVER) BODY COLOR:QT7

68135-48K00-CB2

$25.12

2-3

.TAPE,FRAME COVER RR UPR,R (B | ACK,GRAY) BODY COLOR:YVB

68135-48K00-CB4

$25.12

3-1

COVER,FRAME RR UPR,L (SILVER) | BODY COLOR:YSF

47230-48K00-QKA

$47.95

3-2

COVER,FRAME RR UPR,L (GRAY) | BODY COLOR:QT7

47230-48K00-YLF

$47.95

3-3

COVER,FRAME RR UPR,L (BLACK) | BODY COLOR:YVB

47230-48K00-YKV

$47.95

4-1

.TAPE,FRAME COVER RR UPR,L (Y | LLOW,WHITE,SILVER) BODY COLOR:YSF

68145-48K00-CBZ

$25.12

4-2

.TAPE,FRAME COVER RR UPR,L (G | AY,SILVER) BODY COLOR:QT7

68145-48K00-CB2

$25.12

4-3

.TAPE,FRAME COVER RR UPR,L (B | ACK,GRAY) BODY COLOR:YVB

68145-48K00-CB4

$25.12

5

COVER,FRAME,R

47121-48K00

$74.10

6

COVER,FRAME,L

47221-48K00

$74.10

7

CUSHION (8X26X7)

09320-08028

$2.80

8

SCREW

02142-1520B

$2.34

9

NUT (M5)

09159-05019

$6.44

10

SCREW (5X18)

09139-05094

$3.95

11

SCREW

03541-0512B

$1.77

12

CLIP

09409-06328

$2.92

13

CUSHION This part replaces 17129-16F00.

17798-39G00

$6.12

14

PROTECTOR,BATTERY (30X25X3)

33652-39000

$2.23

15

TAPE (6X25X0.13)

94443-06G00

$2.97

16

FASTENER (33X25X2.6)

44572-13G00

$10.13
