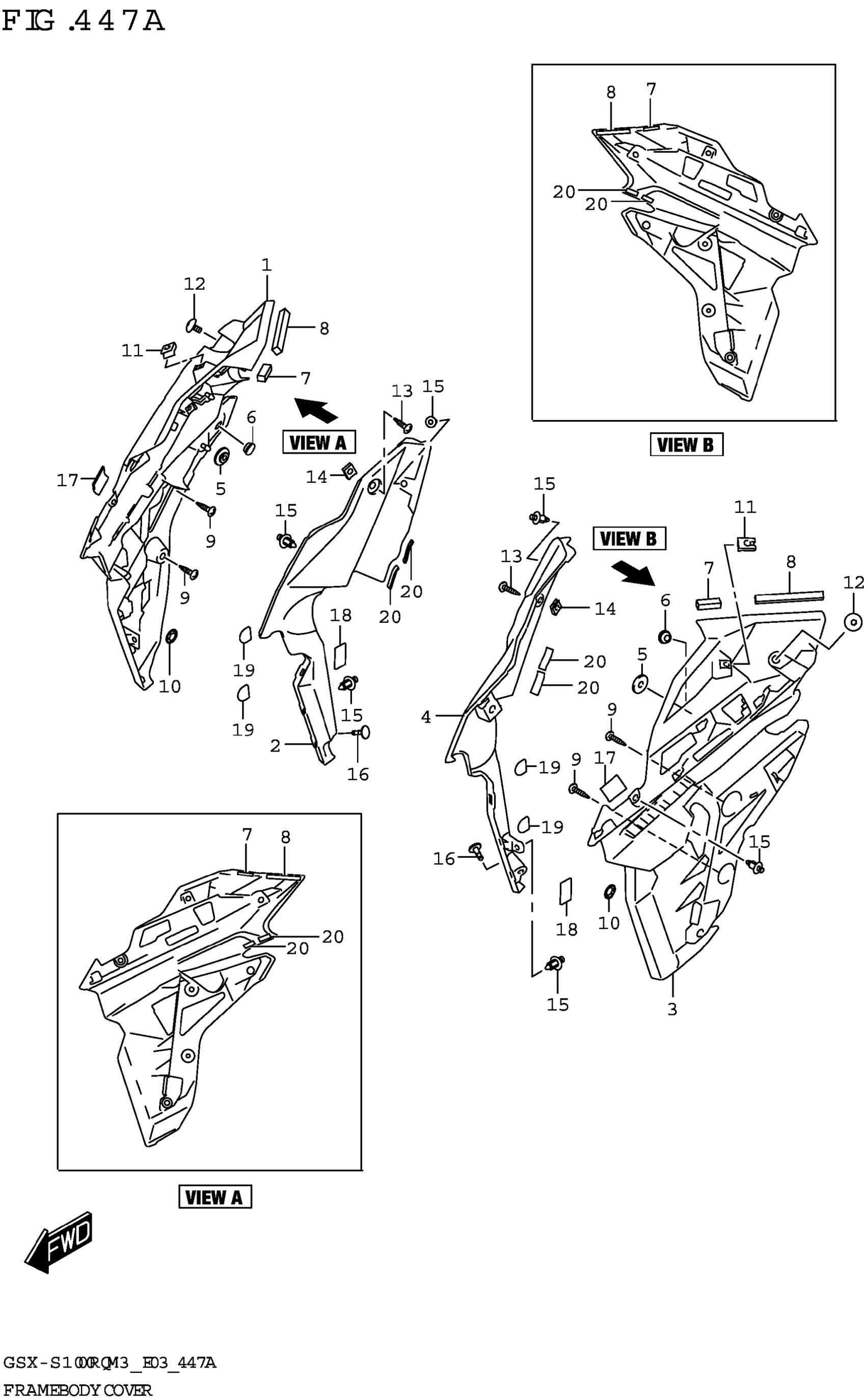

Suzuki GSX-S1000RQM3 (2023) FRAME BODY COVER Diagram

#

Description
Price

1

COVER,FRAME BODY,R

47531-48K01

$75.81

2

COVER,FRAME BODY INR,R

47534-48K00

$74.10

3

COVER,FRAME BODY,L

47541-48K01

$75.81

4

COVER,FRAME BODY INR,L

47544-48K00

$74.10

5

CUSHION

09320-06026

$4.45

6

PLUG (D1:12,D2:17)

09250-12005

$0.54

7

CUSHION,TANK COVER FR (10X30X | )

44277-18K00

$2.80

8

CUSHION,FRAME BODY COVER NO.2

47535-48K00

$1.63

9

SCREW

03541-0516A

$1.37

10

NUT (M9)

09148-09001

$1.60

11

NUT (M5)

09148-05052

$3.04

12

BOLT (6X12)

09106-06117

$4.66

13

SCREW

03541-0512B

$1.77

14

NUT (M5)

09148-05038

$1.97

15

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

16

CLIP

94479-35F00

$5.14

17

CUSHION This part replaces 44281-29C00.

63191-25C00

$2.88

18

TAPE,FRAME BODY COVER

47536-48K00

$8.53

19

CUSHION

09329-18001

$1.89

20

CUSHION (10X30X2)

44894-24A00

$1.78
