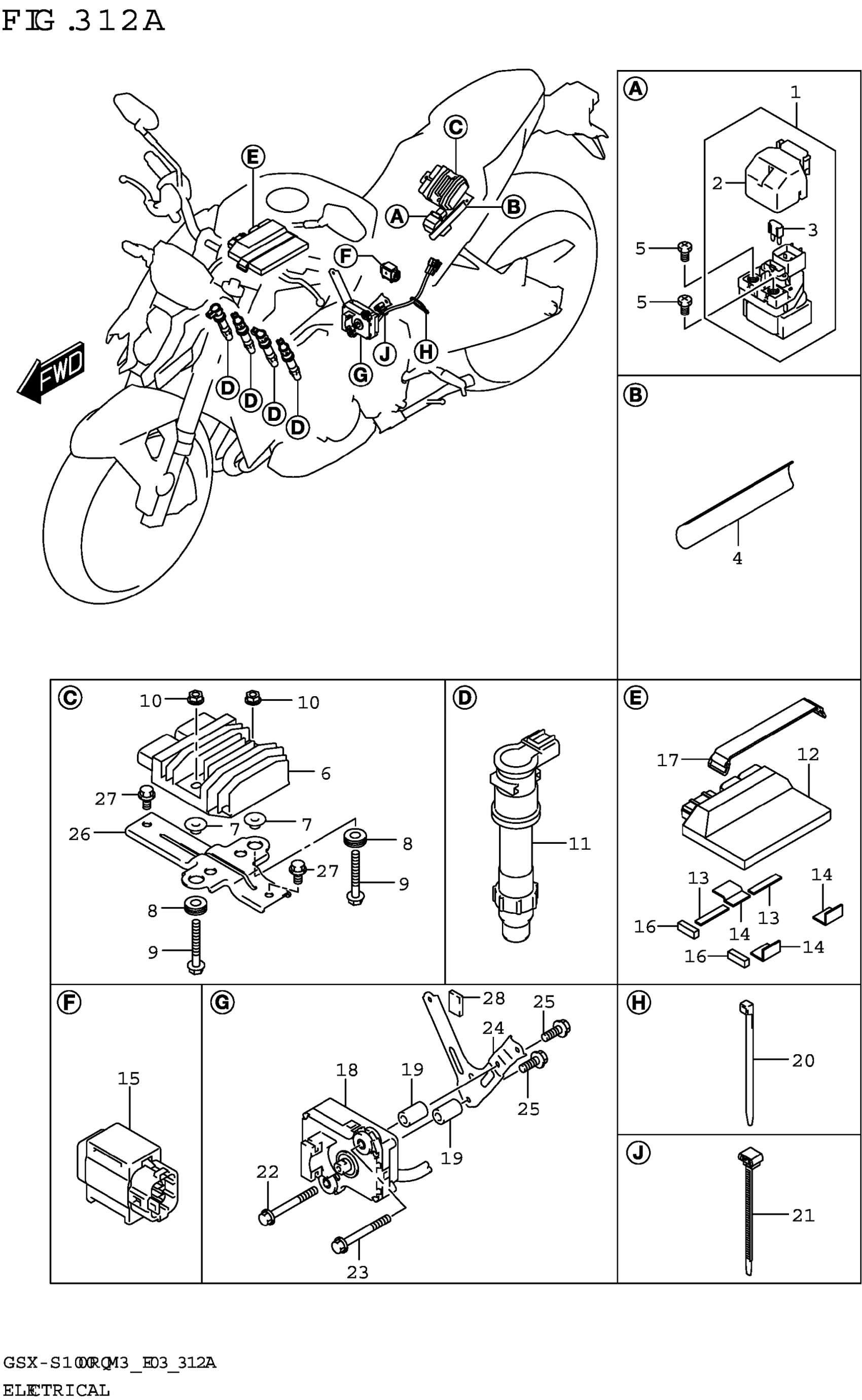

Suzuki GSX-S1000RQM3 (2023) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR

31800-38G10

$97.31

2

.COVER

31861-38G00

$4.88

3

.FUSE (30A)

09481-30501

$2.32

4

TAPE,SEAT LOWER COVER

45414-38G00

Unavailable

5

SCREW (6X8)

09128-06013

$1.49

6

RECTIFIER ASSY

32800-26J10

$194.70

7

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

8

CUSHION (8X18X10)

09320-08501

$3.23

9

BOLT

01550-0635A

$2.32

10

NUT (6X12)

08316-1006A

$2.19

11

COIL ASSY, IGNITION

33410-47H00

$150.98

12

HARDWARE, FI CONTROL UNIT This part replaces 32910-10L00.

32910-48K00

$923.70

13

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

14

CUSHION (30X40X2.0)

33652-36100

$2.36

15

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

16

CUSHION,TANK COVER FR (10X30X | )

44277-18K00

$2.90

17

BAND

09462-00015

$11.10

18

ACTUATOR ASSY, EXHAUST CONTRO This part replaces 33970-48G01.

33970-48G02

$409.57

19

SPACER (6.2X14.5X26)

09180-06345

$10.28

20

CLAMP (L:145)

09407-14407

$3.57

21

CLAMP

09407-14413

Unavailable

22

BOLT

01550-0650A

$2.85

23

BOLT

01550-0655A

Unavailable

24

BRACKET, ACTUATOR

47420-04K00

Unavailable

25

BOLT

01547-0616A

$2.03

26

BRACKET,ELECTRIC PARTS

47431-04K01

$14.88

27

BOLT

01550-0612A

$1.97

28

CUSHION

65742-48K00

$6.02
