Description

Price

1

BODY, THROTTLE

13405-48K10

$1,294.22

2

SPRING,THROTTLE SCREW

13268-48700

$4.15

3

SCREW

13269-33E00

$14.73

4

O-RING

13295-29901

$4.15

5

O-RING

13374-32G00

$8.15

6

JOINT

13471-18H00

$11.83

7

SCREW

13601-29G00

$3.37

8

PACKING

13602-29G01

$2.62

9

WASHER

13606-47A00

$3.70

10

HOSE

13683-04F00

Unavailable

11

HOSE

13683-07F01

$2.05

12

HOSE

13683-07F11

$6.28

13

INJECTOR ASSY

15710-04K00

$302.17

14

.O-RING

15717-58B00

$9.53

15

SEAL

15722-14J00

$11.17

16

.HOSE (3X7X600) This part replaces 09355-30705-105.

09355-30001-600

$8.10

17

HOSE (3.2X7.4X70)

13681-39F00-070

$3.37

18

3WAY,VACUUM HOSE This part replaces 13471-02FA0.

13685-02FA0

$7.95

19

DELIVERY PIPE

13471-10L00

$32.13

20

DELIVERY PIPE

13472-10L00

$32.13

21

NIPPLE ASSY

13473-17K00

$80.53

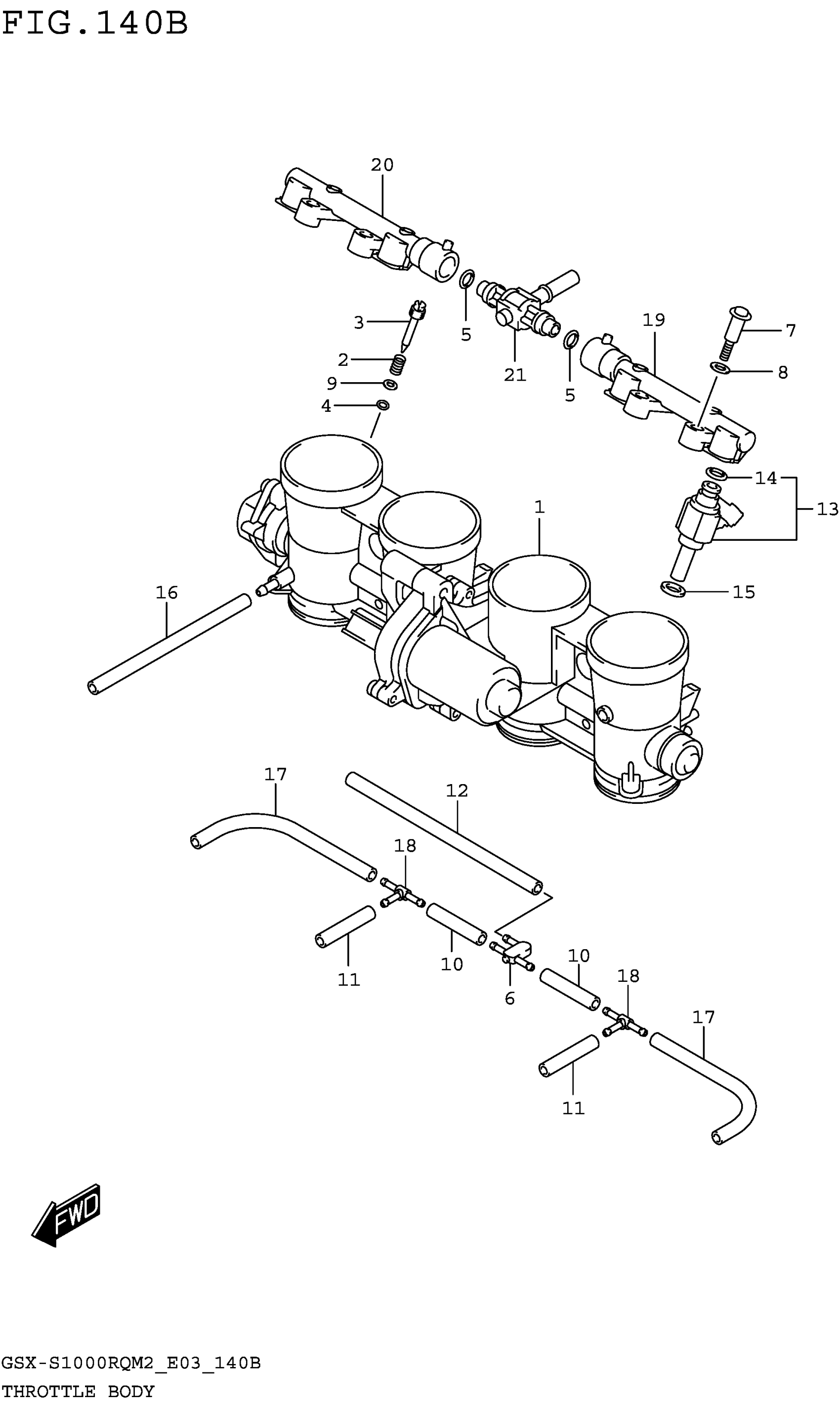

Suzuki GSX-S1000RQM2 (2022) THROTTLE BODY (GSX-S1000RQM2_E28) Diagram

BODY, THROTTLE

SPRING,THROTTLE SCREW

SCREW

O-RING

O-RING

JOINT

SCREW

PACKING

WASHER

HOSE

HOSE

HOSE

INJECTOR ASSY

.O-RING

SEAL

.HOSE (3X7X600) This part replaces 09355-30705-105.

HOSE (3.2X7.4X70)

3WAY,VACUUM HOSE This part replaces 13471-02FA0.

DELIVERY PIPE

DELIVERY PIPE

NIPPLE ASSY
