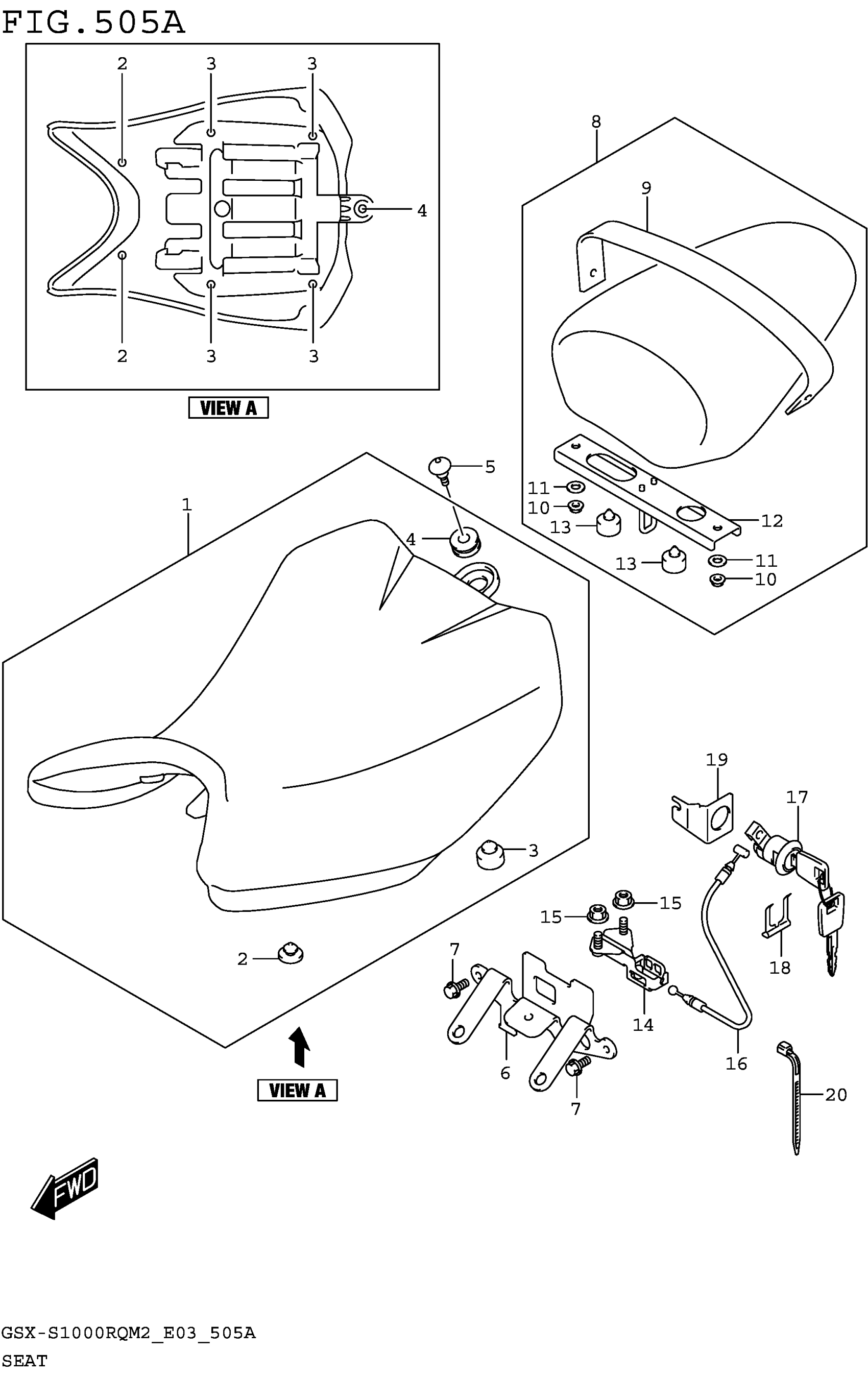

Suzuki GSX-S1000RQM2 (2022) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-48K00-DW2

$210.93

2

CUSHION

09329-10001

$2.12

3

.CUSHION

09321-10011

$2.91

4

.CUSHION,SEAT MOUNT

45148-04K00

$6.47

5

SCREW (6X20)

09139-06193

$4.24

6

BRACKET,SEAT

45120-04K11

$28.07

7

BOLT

01550-0612A

$1.97

8

SEAT ASSY,PILLION (BLACK) This part replaces 45300-04K01-DW2.

45300-04K02-DW2

$249.25

9

.BAND,PILLION SEAT GRIP (BLAC | (BLACK)

45380-04K01-P3H

$14.12

10

NUT (6X12)

08316-1006A

$2.19

11

.WASHER (6.5X16X1)

09160-06129

$2.30

12

.PLATE,SEAT LOCK This part replaces 45291-04K00.

45291-04K01

$21.07

13

.CUSHION, SEAT MOUNT RR

45148-20G00

$9.22

14

BRACKET,STRIKER SUPPORT

45220-04K20

$31.88

15

NUT (6X12)

08316-1006A

$2.19

16

CABLE,SEAT LOCK

45280-48K10

$15.20

17

LOCK SET,SEAT

95700-14810

$107.30

18

PLATE,SEAT LOCK ASSY

45289-11F00

$6.20

19

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.36

20

CLAMP (L:125)

09407-14403

$2.26
