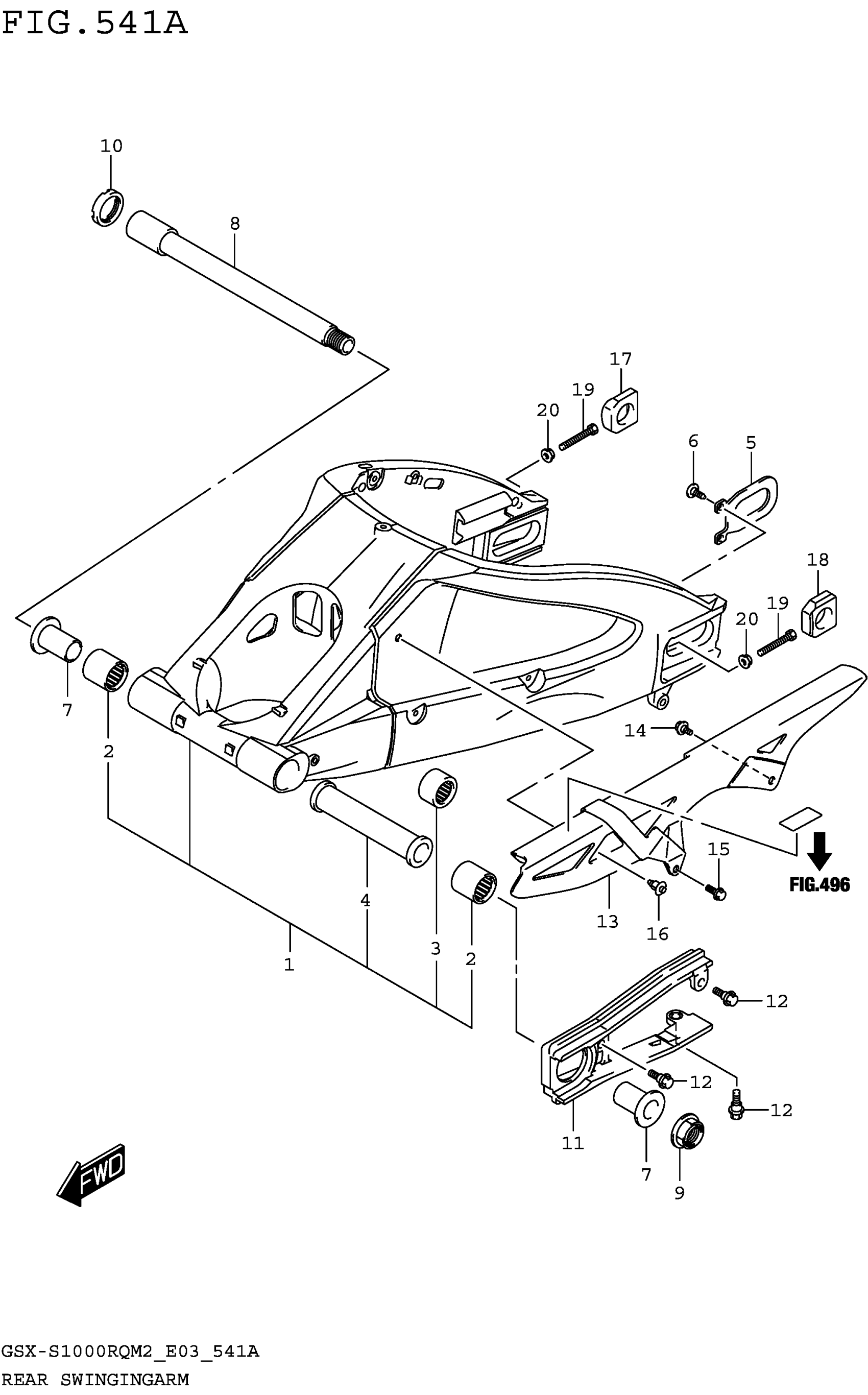

Suzuki GSX-S1000RQM2 (2022) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY, REAR (BLACK

61000-47H21-YAP

$1,987.52

2

.BEARING (27X35X35)

09263-27015

$27.55

3

.BEARING

09263-20116

$31.15

4

.SPACER,RR SWG PVT CTR

61281-41G00

$55.68

5

PLATE,RR SWGARM BRKT

61124-41G00

$8.73

6

SCREW (6X12)

09125-06060

$1.78

7

SPACER,RR SWGARM PIVOT BEARIN | BEARING

61251-41G00

$38.37

8

SHAFT,RR SWINGINGARM PIVOT

61211-01H00

$171.00

9

NUT

09159-20006

$27.12

10

NUT,RR SWGARM PIVOT BOLT

61214-42E10

$42.53

11

BUFFER, CHAIN TOUCH DEFENSE

61273-47H01

$23.75

12

SCREW (6X17.8)

09139-06226

$3.55

13

CASE, CHAIN

61310-04K00

$40.10

14

SCREW (6X16)

09139-06214

$2.60

15

BOLT (6X12)

09139-06225

$2.92

16

CLIP (7.6X25.7)

09409-08308

$2.26

17

ADJUSTER,CHAIN

61445-40F00

$47.20

18

ADJUSTER,CHAIN

61446-40F00

$47.20

19

BOLT (8X50)

09100-08287

$3.10

20

NUT

08316-1008A

$2.45
