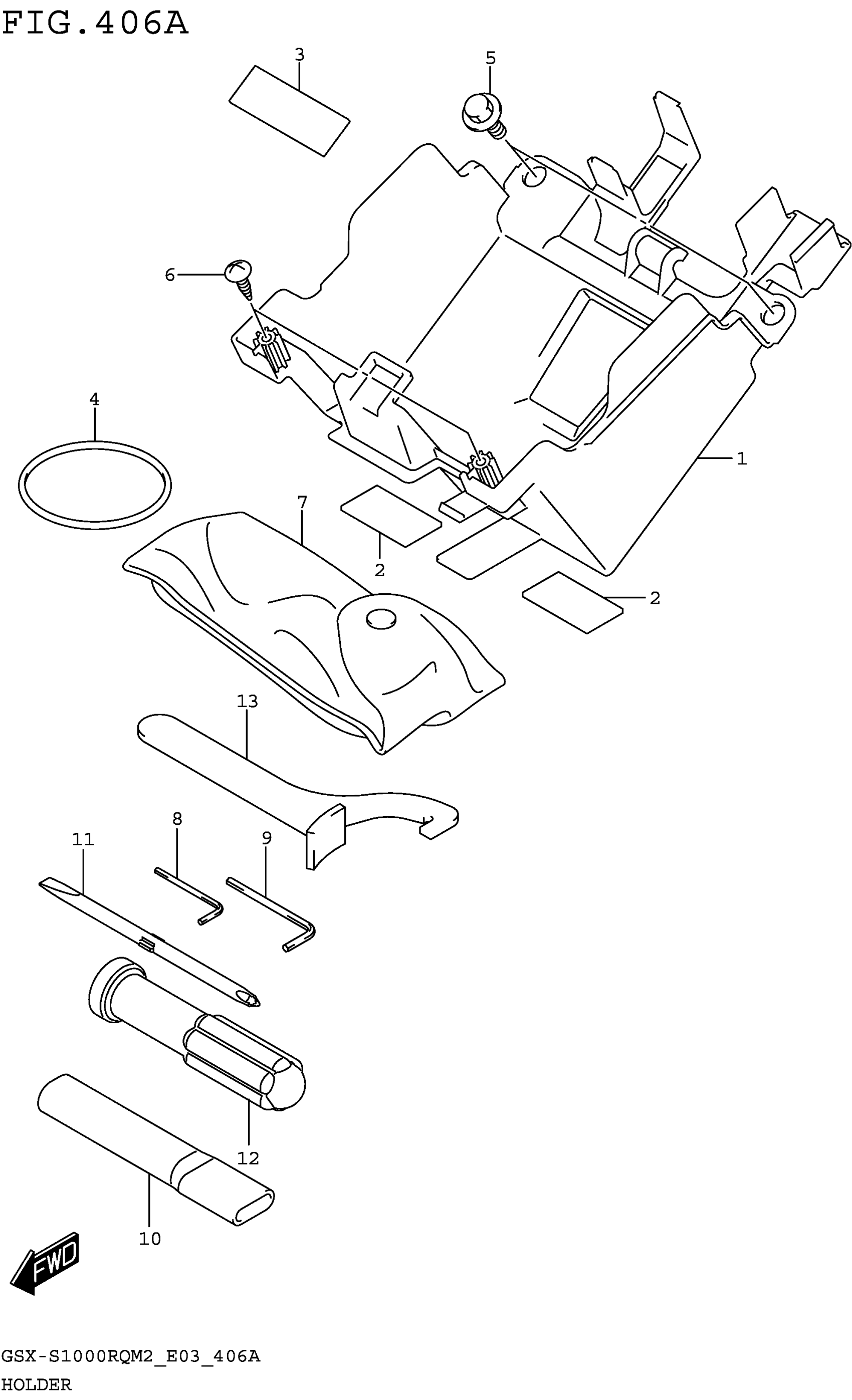

Suzuki GSX-S1000RQM2 (2022) HOLDER Diagram

#

Description
Price

1

HOLDER,ELECTRIC PARTS

47414-04K01

$24.22

2

PROTECTOR,BATTERY (30X40X1.0)

33652-13G00

$3.58

3

CUSHION (20X50X3)

92215-39H00

$4.22

4

O-RING (D:3.5,ID:56.5)

09280-57003

Unavailable

5

BOLT (6X17.8)

09111-06072

$2.03

6

SCREW

03541-0516A

$1.49

7

BAG,TOOL

09811-00311

Unavailable

8

SPANNER,HEXAGON (5)

09816-00059

$8.45

9

SPANNER,HEXAGON (4)

09816-00103

$6.17

10

HANDLE

09817-00037

$5.52

11

DRIVER

09814-00015

$3.70

12

GRIP,DRIVER

09814-00016

$4.22

13

CLAMP,WRENCH

09822-00005

$15.16
