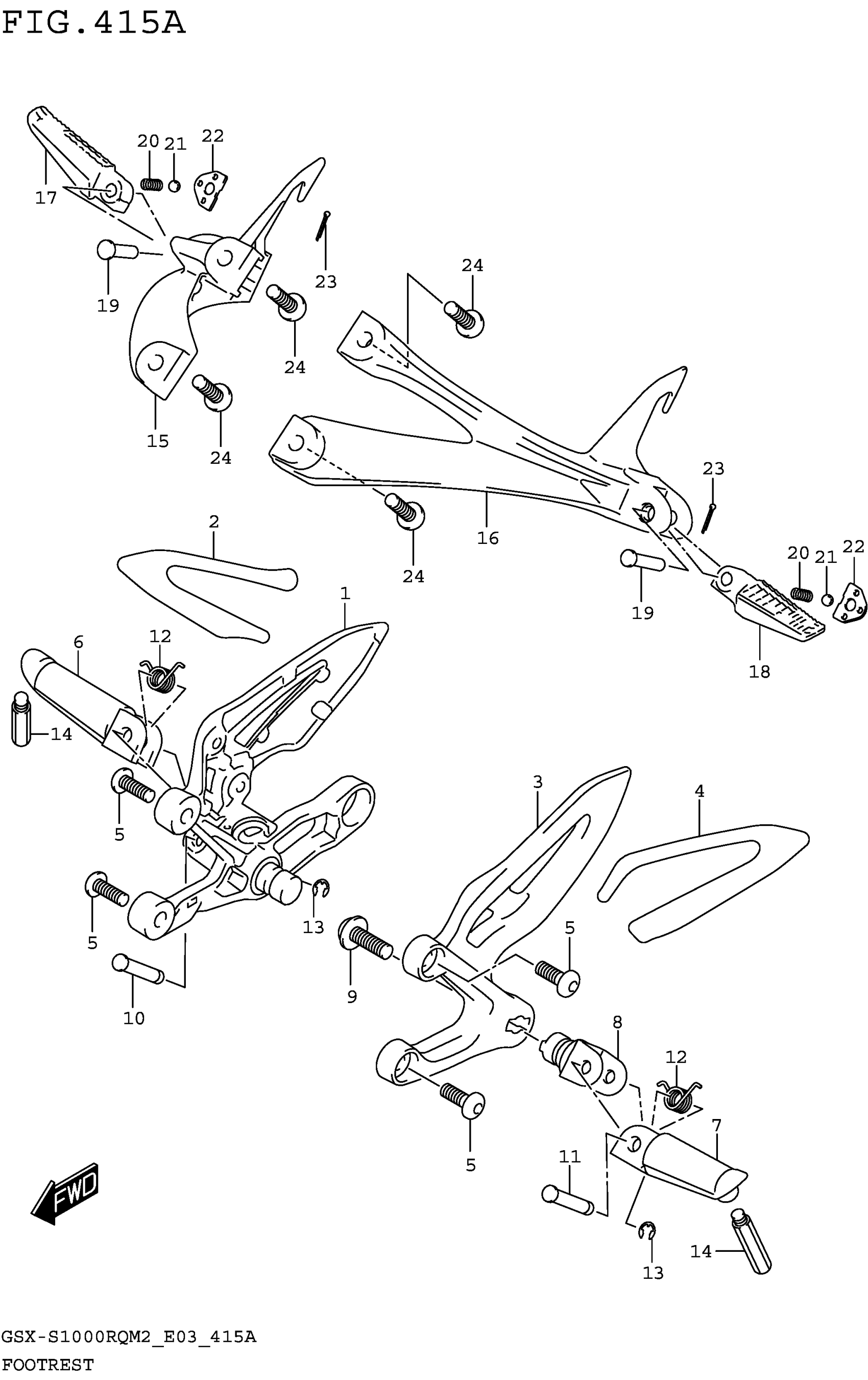

Suzuki GSX-S1000RQM2 (2022) FOOTREST Diagram

#

Description
Price

1

BRACKET, FR FOOTREST RH

43510-48K10

$110.40

2

TAPE, FR FOOTREST RH

43571-04K10

$27.42

3

BRACKET,FR FOOTREST,L

43521-04K10

$113.82

4

TAPE, FR FOOTREST LH

43572-04K10

$27.97

5

BOLT

09106-08209

$2.78

6

BAR,FRONT FOOTREST,R

43516-35F20

$47.54

7

BAR,FRONT FOOTREST,L

43526-35F20

$47.54

8

HOLDER,FOOTREST,L This part replaces 43530-16G10.

43540-04K10

$41.57

9

BOLT (10X28)

09106-10064

$4.90

10

PIN

09208-08019

$2.79

11

PIN

09208-08018

$2.79

12

SPRING, FRONT FOOTREST

43581-48K00

$3.89

13

E-RING

08332-1106A

$1.49

14

.BOLT,BANK SENSOR

43576-48B50

$14.20

15

BRACKET,PILLION FOOTREST RH

43811-04K00

$139.45

16

BRACKET,PILLION FOOTREST LH

43821-04K00

$134.35

17

BAR,PILLION FOOTREST,R

43611-37H50

$37.12

18

BAR,PILLION FOOTREST,L

43621-37H50

$37.12

19

PIN

09200-08002

$2.05

20

SPRING

09440-05003

$1.49

21

BALL

06111-07004

$1.49

22

PLATE,PILLION FOOTREST

43816-01H30

$6.12

23

PIN

04111-2015A

$1.49

24

BOLT (8X25)

09106-08151

$3.70
