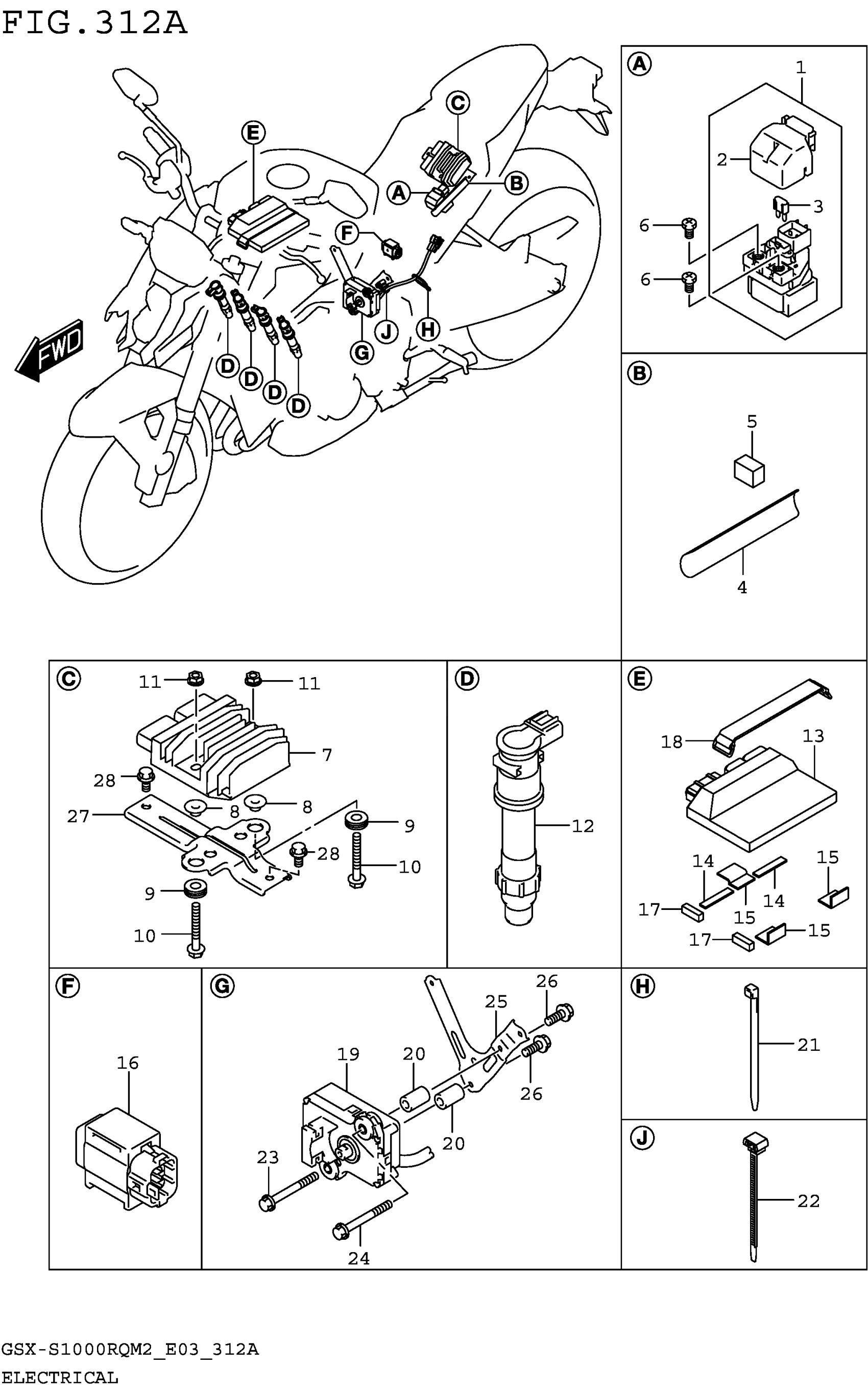

Suzuki GSX-S1000RQM2 (2022) ELECTRICAL Diagram

RELAY ASSY,STARTING MOTOR

31800-38G10

$97.31

.COVER

31861-38G00

$4.88

.FUSE (30A)

09481-30501

$2.32

TAPE,SEAT LOWER COVER

45414-38G00

Unavailable

CUSHION,FRAME COVER | CUT AS REQUIRED

47161-26J00

$3.58

SCREW (6X8)

09128-06013

$1.49

RECTIFIER ASSY

32800-26J10

$194.70

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

CUSHION (8X18X10)

09320-08501

$3.23

BOLT

01550-0635A

$2.32

NUT (6X12)

08316-1006A

$2.19

COIL ASSY, IGNITION

33410-47H00

$150.98

HARDWARE, FI CONTROL UNIT This part replaces 32910-10L00.

32910-48K00

$923.70

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

CUSHION (30X40X2.0)

33652-36100

$2.36

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

CUSHION,TANK COVER FR (10X30X

44277-18K00

$2.90

BAND

09462-00015

$11.10

ACTUATOR ASSY, EXHAUST CONTRO This part replaces 33970-48G01.

33970-48G02

$409.57

SPACER (6.2X14.5X26)

09180-06345

$10.28

CLAMP (L:145)

09407-14407

$3.57

CLAMP

09407-14413

Unavailable

BOLT

01550-0650A

$2.85

BOLT

01550-0655A

Unavailable

BRACKET, ACTUATOR

47420-04K00

Unavailable

BOLT

01547-0616A

$2.03

BRACKET,ELECTRIC PARTS

47431-04K01

$14.88

BOLT

01550-0612A

$1.97
