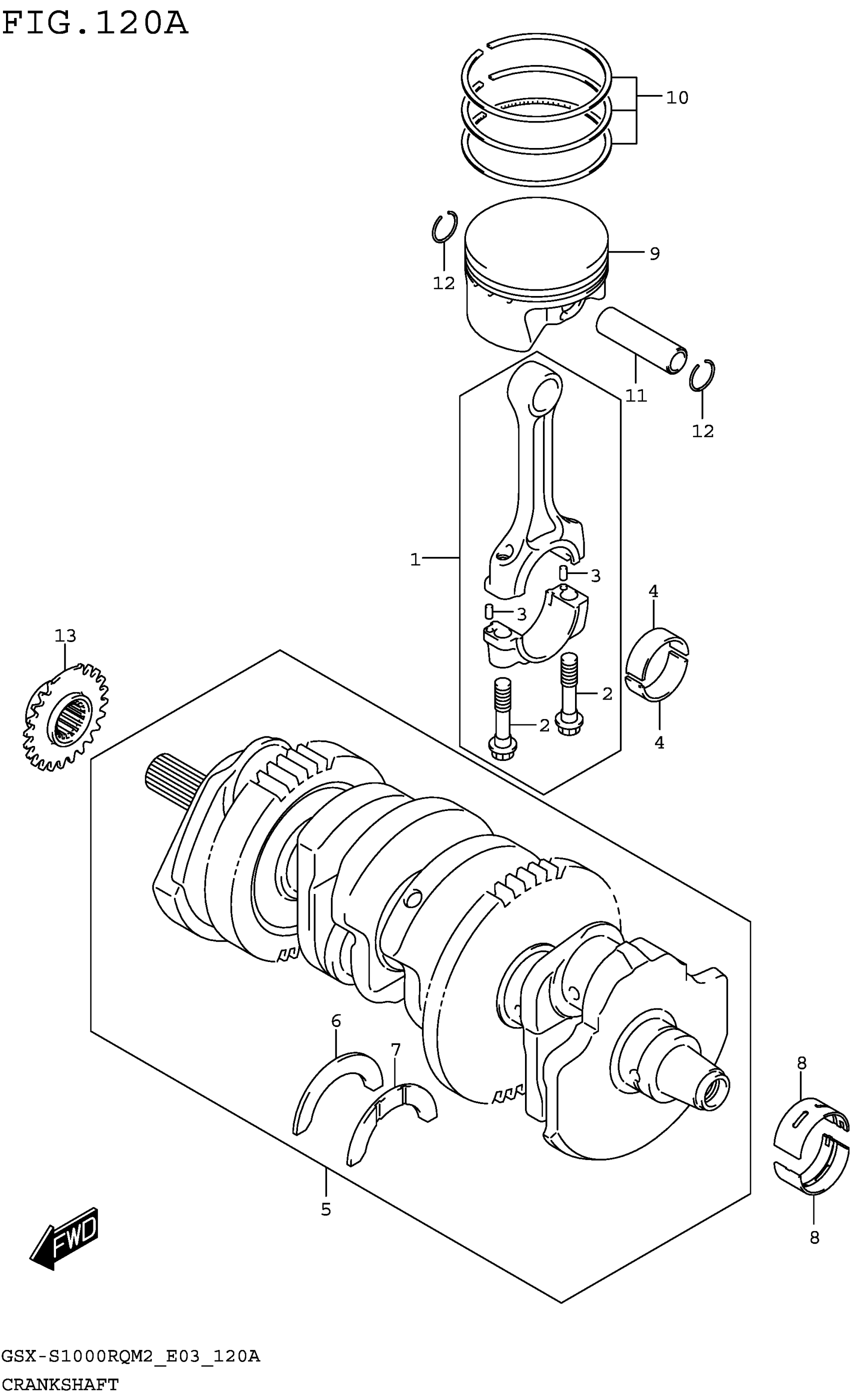

Suzuki GSX-S1000RQM2 (2022) CRANKSHAFT Diagram

#

Description
Price

1

CONNROD ASSY

12160-04K10

$189.45

2

.BOLT,CONNECTING ROD

12163-24F10

$15.72

3

PIN (4X13.8)

04221-04089

$1.15

4-1

BEARING, CRANK PIN | GREEN

12164-47H10-0A0

$11.81

4-2

BEARING, CRANK PIN | BLACK

12164-47H10-0B0

$15.93

4-3

BEARING, CRANK PIN | BROWN

12164-47H10-0C0

$11.48

4-4

BEARING, CRANK PIN | YELLOW

12164-47H10-0D0

$12.24

5

CRANKSHAFT SET

12000-48851

$1,558.27

6

.BEARING,CRANK THRUST | GREEN

12228-48B00-0E0

$9.20

7-1

.BEARING,CRANK THRUST | BROWN

12228-48B00-0B0

$13.05

7-2

.BEARING,CRANK THRUST | RED

12228-48B00-0C0

$12.82

7-3

.BEARING,CRANK THRUST | YELLOW

12228-48B00-0D0

$13.30

7-4

.BEARING,CRANK THRUST | GREEN

12228-48B00-0E0

$9.20

7-5

.BEARING,CRANK THRUST | BLUE

12228-48B00-0F0

$13.30

7-6

.BEARING,CRANK THRUST | ORANGE

12228-48B00-0G0

$13.30

7-7

.BEARING,CRANK THRUST | BLACK

12228-48B00-0H0

$9.50

8-1

BEARING, CRANKSHAFT | GREEN

12229-04K00-0A0

$20.53

8-2

BEARING, CRANKSHAFT | BLACK

12229-04K00-0B0

$20.53

8-3

BEARING, CRANKSHAFT | BROWN

12229-04K00-0C0

$20.53

8-4

BEARING, CRANKSHAFT | YELLOW

12229-04K00-0D0

$20.53

8-5

BEARING, CRANKSHAFT | BLUE

12229-04K00-0E0

$20.53

9

PISTON

12111-04K00-0F0

$213.62

10

RING SET, PISTON

12140-04K00

$107.92

11

PIN, PISTON

12151-04K00

$16.85

12

CIRCLIP (OD:18)

09381-16001

$1.49

13

SPROCKET, CAM CHAIN DRIVE

12731-29G00

$146.42
