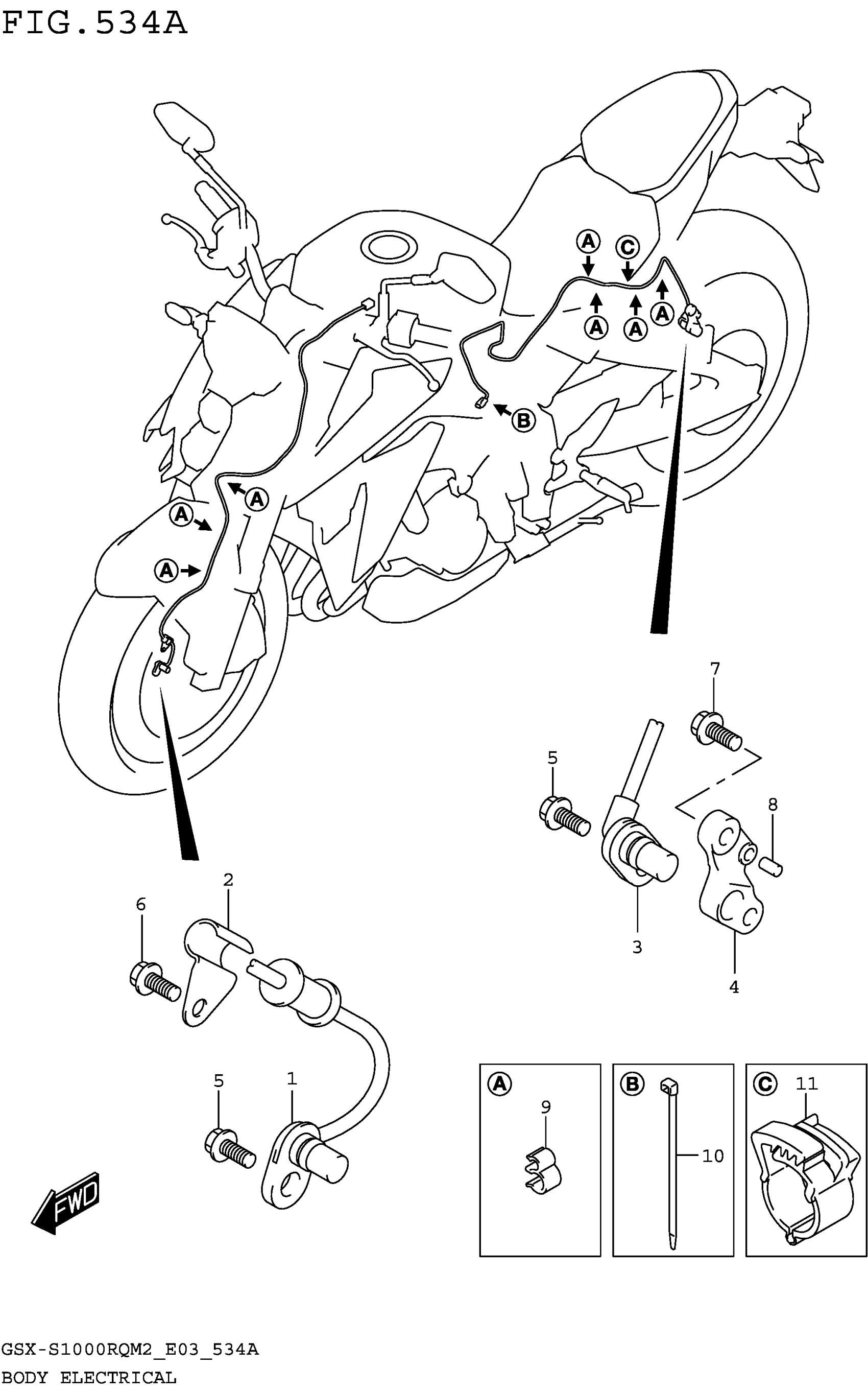

Suzuki GSX-S1000RQM2 (2022) BODY ELECTRICAL Diagram

#

Description
Price

1

SENSOR, FR WHEEL ABS

55710-48K00

$181.28

2

CLAMP,ABS SENSOR FR

55731-15H00

$4.83

3

SENSOR, RR WHEEL ABS

65710-48K00

$91.52

4

BRACKET, SPEED SENSOR RR

65721-48K00

$18.07

5

BOLT

09103-06550

$2.38

6

BOLT

01547-0612B

$1.49

7

BOLT (6X16)

09103-06240

$3.08

8

PIN (4X13.8)

04221-04089

$1.49

9

CLAMP

09408-00266

$2.51

10

CLAMP (L:145)

09407-14407

$3.57

11

CLAMP

09408-00184

$2.92
