2020 Suzuki GSX-S1000FAM0 Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 2020 Suzuki GSX-S1000FAM0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

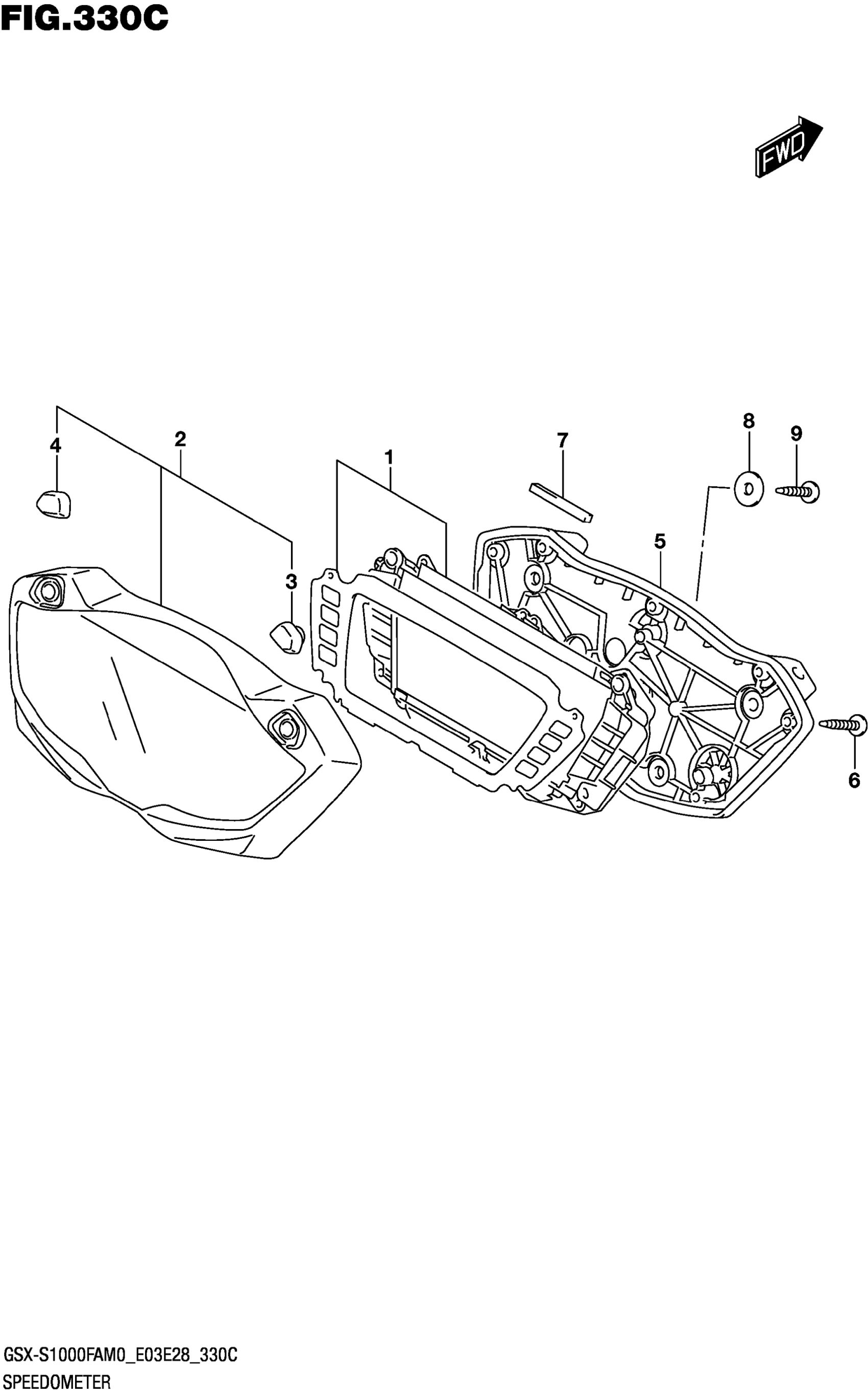

2020 Suzuki GSX-S1000FAM0 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER

34120-04KK1

1
Out of stock

2

CASE ASSY,UPPER

34150-04K01

1
Out of stock

3

.SWITCH RUBBER RH

34124-04K00

1
Out of stock

4

.SWITCH RUBBER LH

34124-04K10

1
Out of stock

5

CASE ASSY,LOWER

34111-04K00

1
Out of stock

6

SCREW

34183-10C00

8
Out of stock

7

CUSHION,SPEEDOMETER

34188-04K00

2
Out of stock

8

WASHER (4.5X16X1.2)

09160-04026

3
Out of stock

9

SCREW

03541-0416A

3
Out of stock
← Signal Generator Speedometer →
