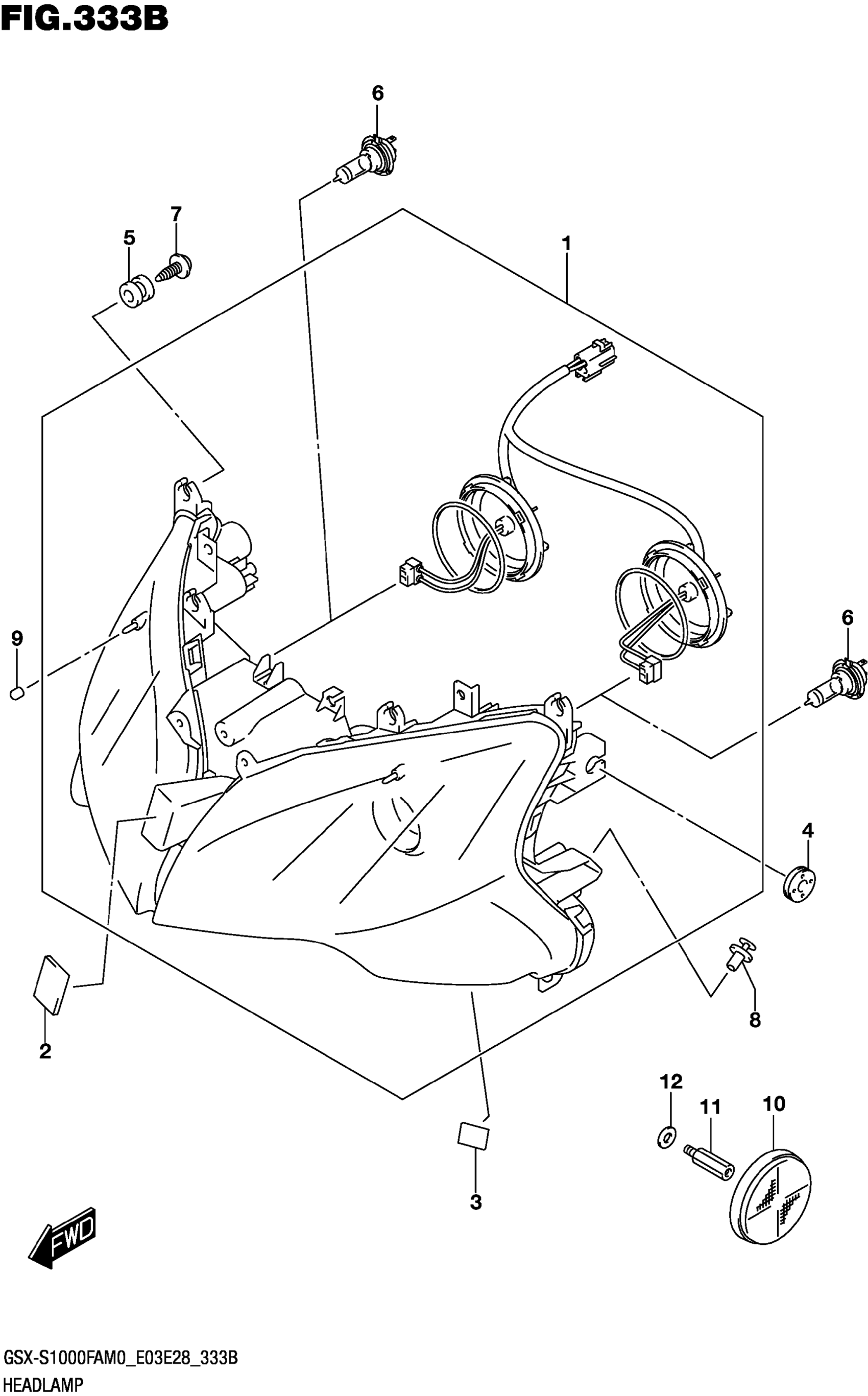

Suzuki GSX-S1000FAM0 (2020) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY

35100-04KB1-999

$574.53

2

FASTENER (25X33X2.6)

44572-02F01

$10.13

3

FASTENER,COWLING (20X15X0.8)

44572-37H00

$9.01

4

CUSHION (8X26X7)

09320-08028

$2.80

5

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$2.95

6

BULB (12V55W H7)

09471-12188

$20.69

7

SCREW (5X15)

09136-05062

$2.19

8

CLIP

94479-35F00

$5.14

9

CUSHION,FUEL TANK COVER This part replaces 44294-43H00.

44294-43H11

$2.39

10

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

$11.41

11

BOLT

09119-06109

$14.43

12

WASHER (8.5X18X1.0)

09160-08043

$1.81
