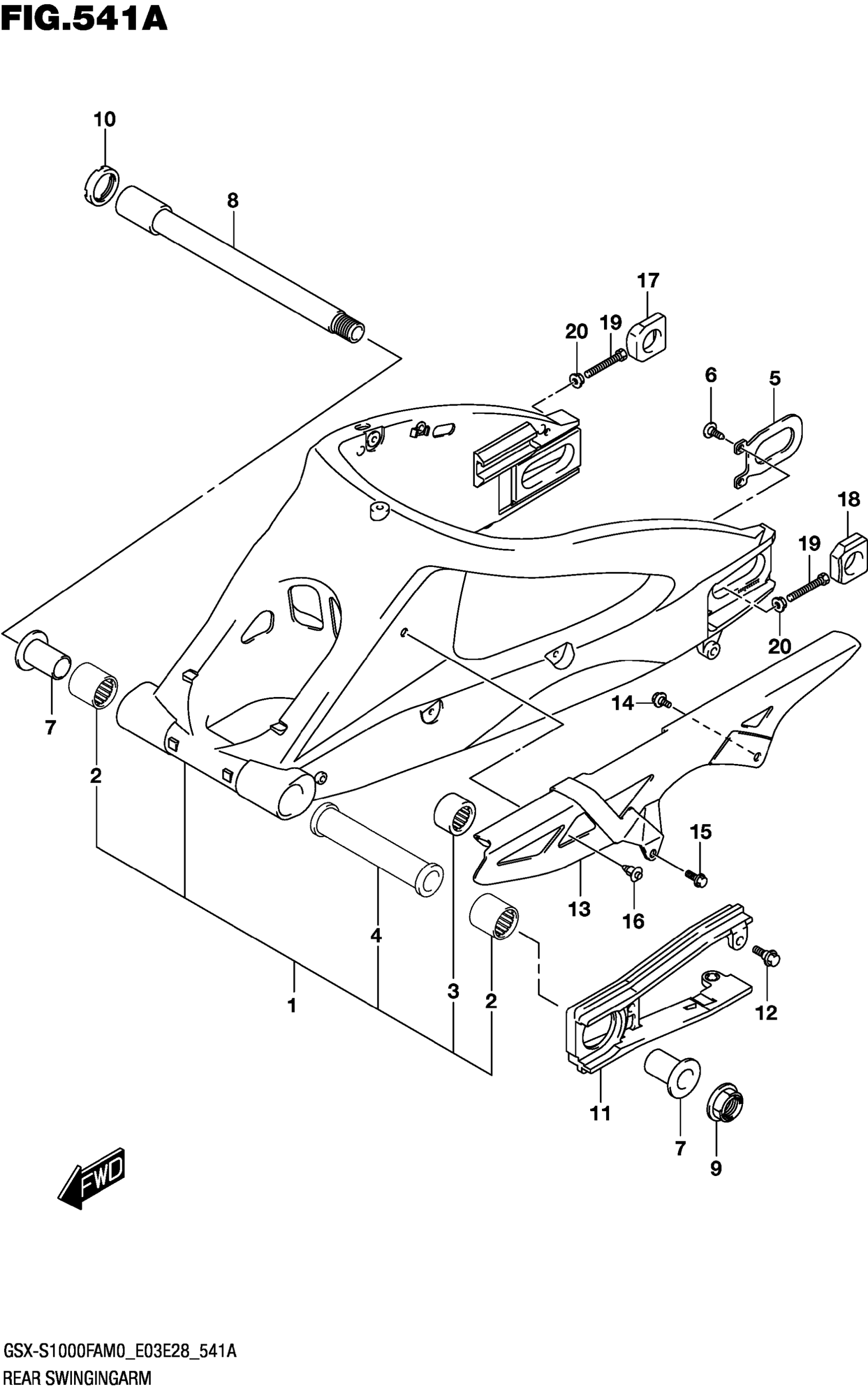

Suzuki GSX-S1000FAM0 (2020) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASS This part replaces 61000-47H10-YAP.

61000-47H11-YAP

$2,488.25

2

.BEARING (27X35X35) This part replaces 09263-27013.

09263-27015

$24.86

3

.BEARING (20X27X30)

09263-20070

$41.00

4

.SPACER,RR SWG PVT CTR

61281-41G00

$62.83

5

PLATE,RR SWGARM BRKT

61124-41G00

$9.87

6

SCREW (6X12)

09125-06060

$1.95

7

SPACER,RR SWGARM PIVOT BEARIN

61251-41G00

$36.12

8

SHAFT,RR SWINGINGARM PIVOT

61211-01H00

$192.08

9

NUT

09159-20006

$34.67

10

NUT,RR SWGARM PIVOT BOLT

61214-42E10

$48.00

11

BUFFER, CHAIN TOUCH DEFENSE This part replaces 61273-47H00.

61273-47H01

$26.81

12

BOLT (6X17.8)

09111-06072

$2.01

13

CASE, CHAIN

61310-04K00

$45.25

14

BOLT (6X12)

09111-06107

$2.66

15

BOLT

01550-0616B

$2.53

16

CLIP (7.6X25.7,BLACK)

09409-08308-5ES

$1.97

17

ADJUSTER,CHAIN

61445-40F00

$43.20

18

ADJUSTER,CHAIN

61446-40F00

$43.20

19

BOLT (8X50)

09100-08287

$2.80

20

NUT

08316-1008A

$2.47
