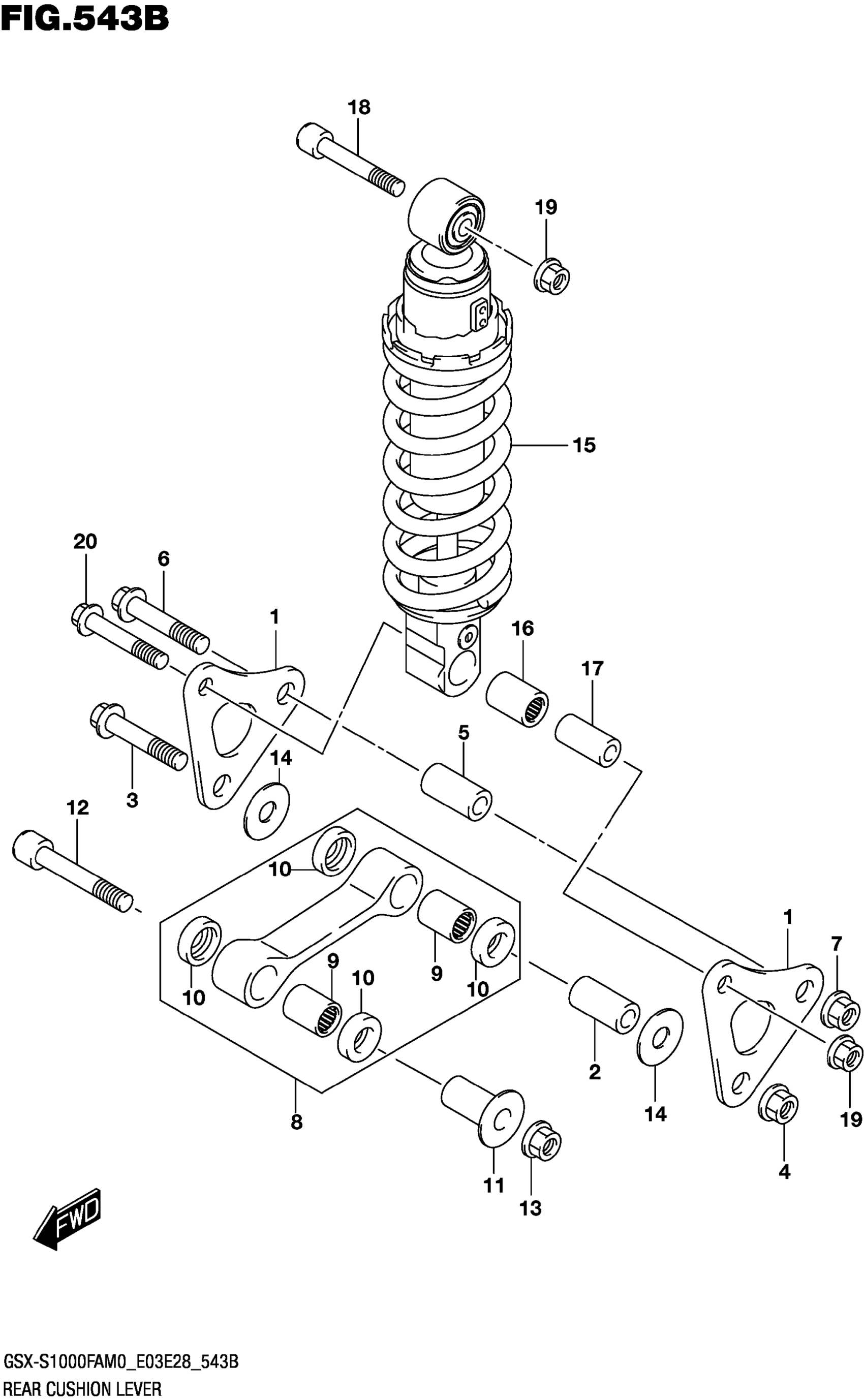

Suzuki GSX-S1000FAM0 (2020) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER, REAR CUSHION

62611-04K00

$15.75

2

SPACER,RR CUSHION LEVER FR (1 | X20X34)

62317-27C10

$15.78

3

BOLT (12X62) | 2)

62668-42A02

$12.03

4

NUT

09159-12056

$6.65

5

SPACER,RR CUSHION LEVER FR

62317-44B00

$23.73

6

BOLT (12X62) | 2)

62668-42A02

$12.03

7

NUT

09159-12056

$6.65

8

ROD SET,RR CUSHION

62600-31850

$98.65

9

.BEARING (20X27X20)

09263-20063

Unavailable

10

SEAL,OIL (20X27X5)

09283-20031

$4.73

11

SPACER,RR CUSHION ROD FR

62647-47H00

$39.83

12

BOLT,RR CUSHION ROD

62658-04K00

$16.23

13

NUT

09159-12056

$6.65

14

WASHER (12X34X1.0)

09160-12037

$3.52

15

ABSORBER ASSY,REAR SHOCK (GRA | )

62100-04K30-17U

$766.52

16

BEARING (17X24X32)

09263-17046

$45.05

17

SPACER,RR SHOCK ABS LWR

62317-47H00

$23.08

18

BOLT,RR SHOCK ABS UPPER

62658-04K10

$16.23

19

NUT (M10)

09159-10115

$3.21

20

BOLT (10X58)

09103-10428

$5.52
