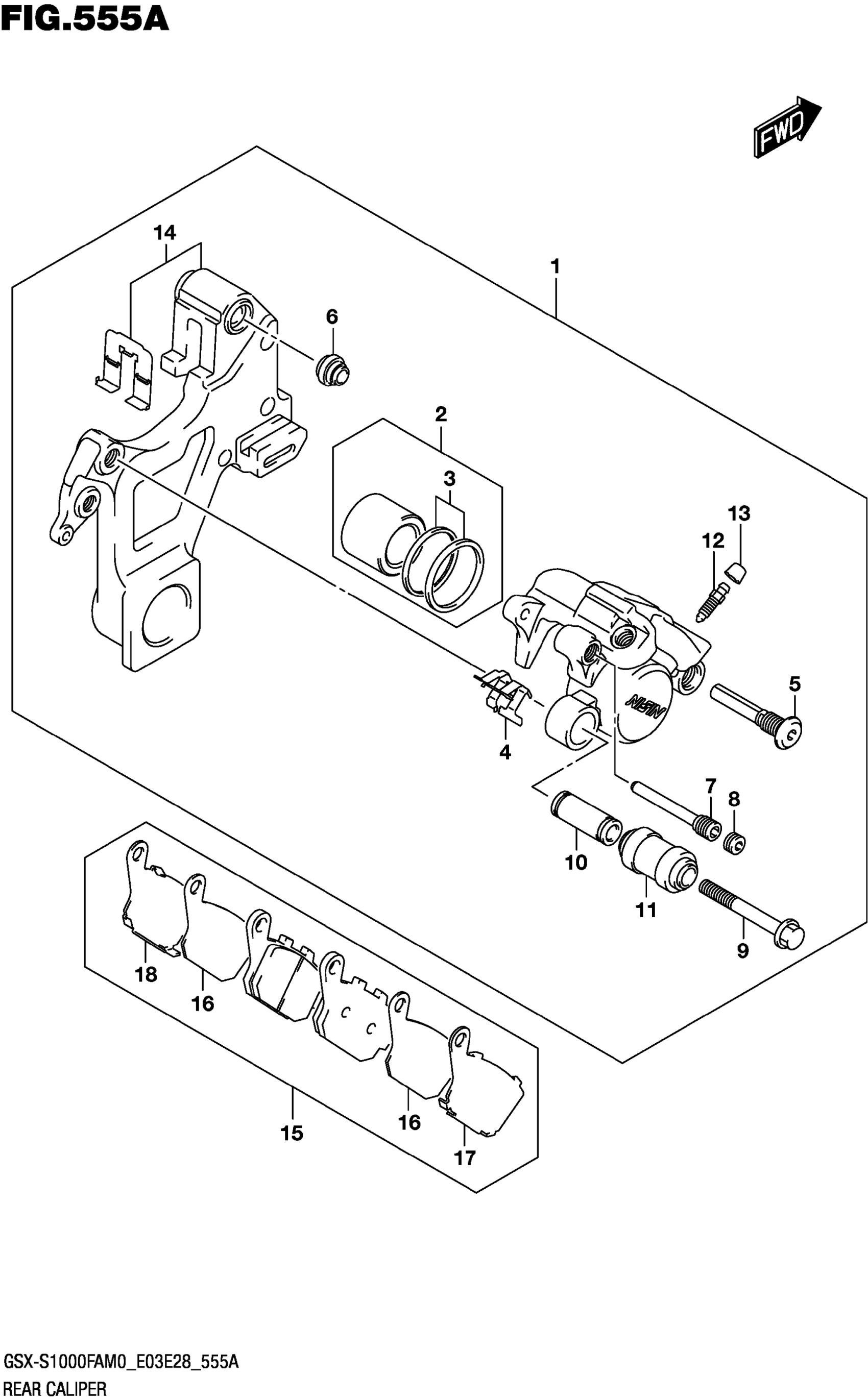

Suzuki GSX-S1000FAM0 (2020) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR

69100-04K00-999

$342.45

2

.PISTON SET

69100-04810

$62.68

3

..SEAL SET,PISTON

69100-04820

$8.64

4

.SPRING,PAD

69115-04F00

$11.53

5

.PIN,BOLT

59305-36E00

$17.91

6

.BOOT

59303-14500

$5.29

7

.PIN,PAD

69141-40F00

$29.01

8

.PIN PLUG

59146-08J00

$8.15

9

.BOLT

69182-04F00

$8.93

10

.SLEEVE

69185-04F00

$20.88

11

.BOOT,SLEEVE

69186-04F00

$13.01

12

.BLEEDER

59121-01A00

$8.35

13

.CAP,BLEEDER

59122-46H00

$4.36

14

.BRACKET

69150-04K00

$138.65

15

PAD & RETAINER SET

69100-08860

$62.13

16

.INSULATOR

69132-08J00

$13.43

17

.RETAINER

69133-16G00

$18.93

18

.RETAINER

69134-16G00

$18.60
