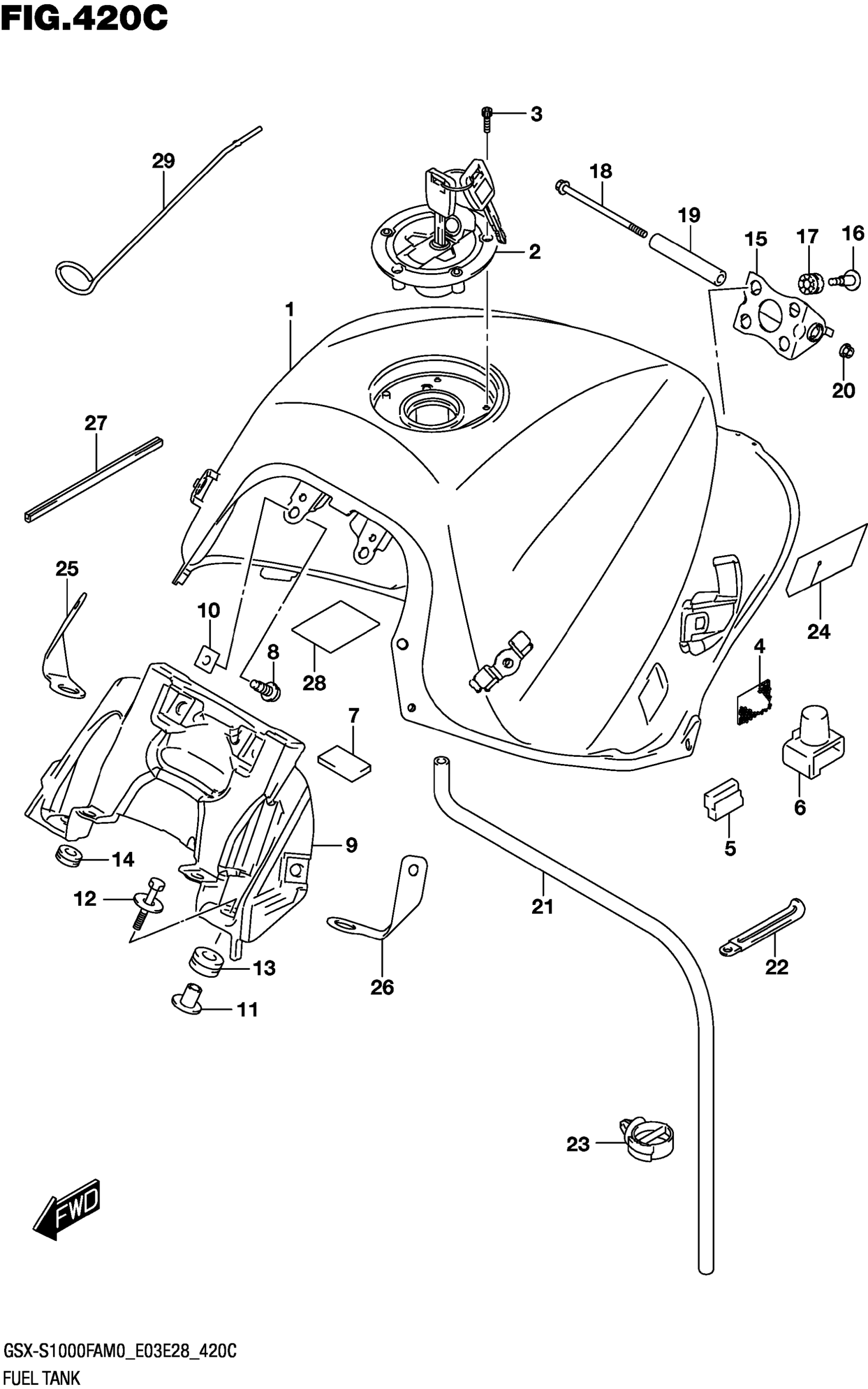

Suzuki GSX-S1000FAM0 (2020) FUEL TANK (E33) Diagram

#

Description
Price

1

TANK ASSY,FUEL (BLACK)

44100-04K40-YVB

$1,248.03

2

CAP SET,FUEL TANK FILLER

44200-17840

$166.45

3

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

4

FASTENER (33X25X2.6)

44572-13G00

$11.07

5

CUSHION, FUEL TANK SIDE

44541-41G00

$5.98

6

CUSHION, FUEL TANK REAR This part replaces 44542-04K00.

44542-04K01

$8.87

7

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.99

8

SCREW, FUEL TANK FRONT BRKT

44543-04K00

$4.22

9

BRACKET, FUEL TANK FRONT

44521-04K00

$94.98

10

NUT (M6)

44523-47H00

$10.02

11

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

12

BOLT (6X30)

09116-06172

$2.50

13

CUSHION (10X22X13)

09320-10050

$3.35

14

CUSHION (6X18X6)

09320-06504

$4.96

15

BRACKET, FUEL TANK REAR

44530-04K00

Unavailable

16

SCREW (6X24)

09139-06203

Unavailable

17

CUSHION (8X18X16)

09320-08089

Unavailable

18

BOLT (6X100)

09103-06060

$2.50

19

SPACER,FUEL TANK RR

44561-18G00

$16.96

20

NUT (M6)

09159-06076

$2.81

21

HOSE, FUEL TANK DRAIN NO.2

44423-04K11

$18.77

22

CLAMP (L:80)

09404-06436

Unavailable

23

CLAMP

09403-20307

Unavailable

24

PROTECTOR, FUEL TANK

44283-06J00

$6.10

25

BRACKET, FUEL TANK FRONT RH

44561-04K00

$9.47

26

BRACKET, FUEL TANK FRONT LH

44571-04K00

$9.47

27

MOLDING,FUEL TANK (L:110)

44552-24B00

$14.08

28

CUSHION,FUEL TANK

44281-04K00

$5.38

29

STAY, FUEL TANK | OPT

44560-23H00

$44.95
