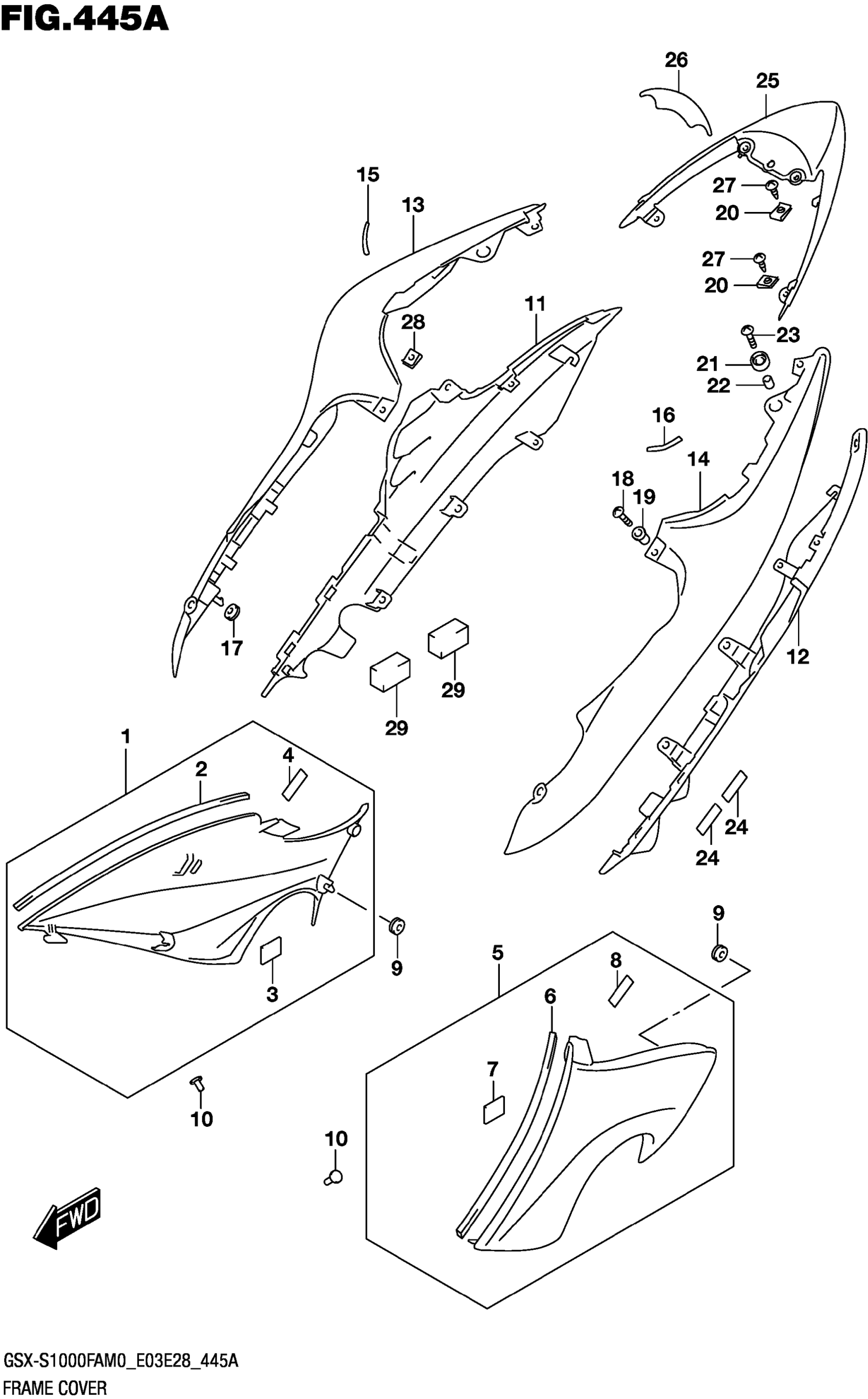

Suzuki GSX-S1000FAM0 (2020) FRAME COVER (E03,E33) Diagram

#

Description
Price

1

COVER,FRAME FRONT RH

47110-04K00

$66.88

2

.CUSHION,FUEL TANK COVER

44277-37H00

$5.18

3

FASTENER (33X25X2.6) | )

44572-13G00

$11.07

4

CUSHION,UNDER COWLING NO.1

94476-38C00

Unavailable

5

COVER,FRAME FRONT LH

47210-04K00

$51.73

6

.CUSHION,FUEL TANK COVER

44277-37H00

$5.18

7

FASTENER (33X25X2.6) | )

44572-13G00

$11.07

8

CUSHION,UNDER COWLING NO.1

94476-38C00

Unavailable

9

CUSHION (6X18X6)

09320-06504

$4.96

10

CLIP

09409-10314

$1.97

11

COVER,FRAME RR LWR RH

47131-04K00

$20.83

12

COVER,FRAME RR LWR LH

47231-04K00

$21.22

13

COVER,FRAME RR UPR RH (BLACK)

47121-04K00-YVB

$181.70

14

COVER,FRAME RR UPR LH (BLACK)

47221-04K00-YVB

$125.78

15

TAPE,FRAME COVER RH

47313-04K01

Unavailable

16

TAPE,FRAME COVER LH

47314-04K01

$12.73

17

CUSHION (8X26X7)

09320-08028

$3.04

18

SCREW

02142-1520B

$2.28

19

NUT (M5)

09159-05019

$7.14

20

NUT (M5)

09148-05047

$2.11

21

CUSHION (10X24X13) | 4X13) This part replaces 47312-37H00.

47312-37H10

$2.91

22

SPACER (6.5X10X7)

09180-06283

$1.91

23

SCREW (6X20)

09136-06105

$1.97

24

TAPE (6X25X0.13)

94443-06G00

$3.25

25-1

COVER,FRAME CENTER (BLACK) | FOR YVB

47311-04K00-YKV

$110.62

25-2

COVER,FRAME CENTER (BLUE) | FOR KEL

47311-04K00-YSF

$107.17

26

TAPE,FRAME COVER CTR

47312-04K00

$12.73

27

SCREW

03541-0512B

$1.78

28

NUT (M5)

09148-05047

$2.11

29

CUSHION,RDTR COVER INNER | CUT AS REQUIRED

17798-39G00

$6.49
