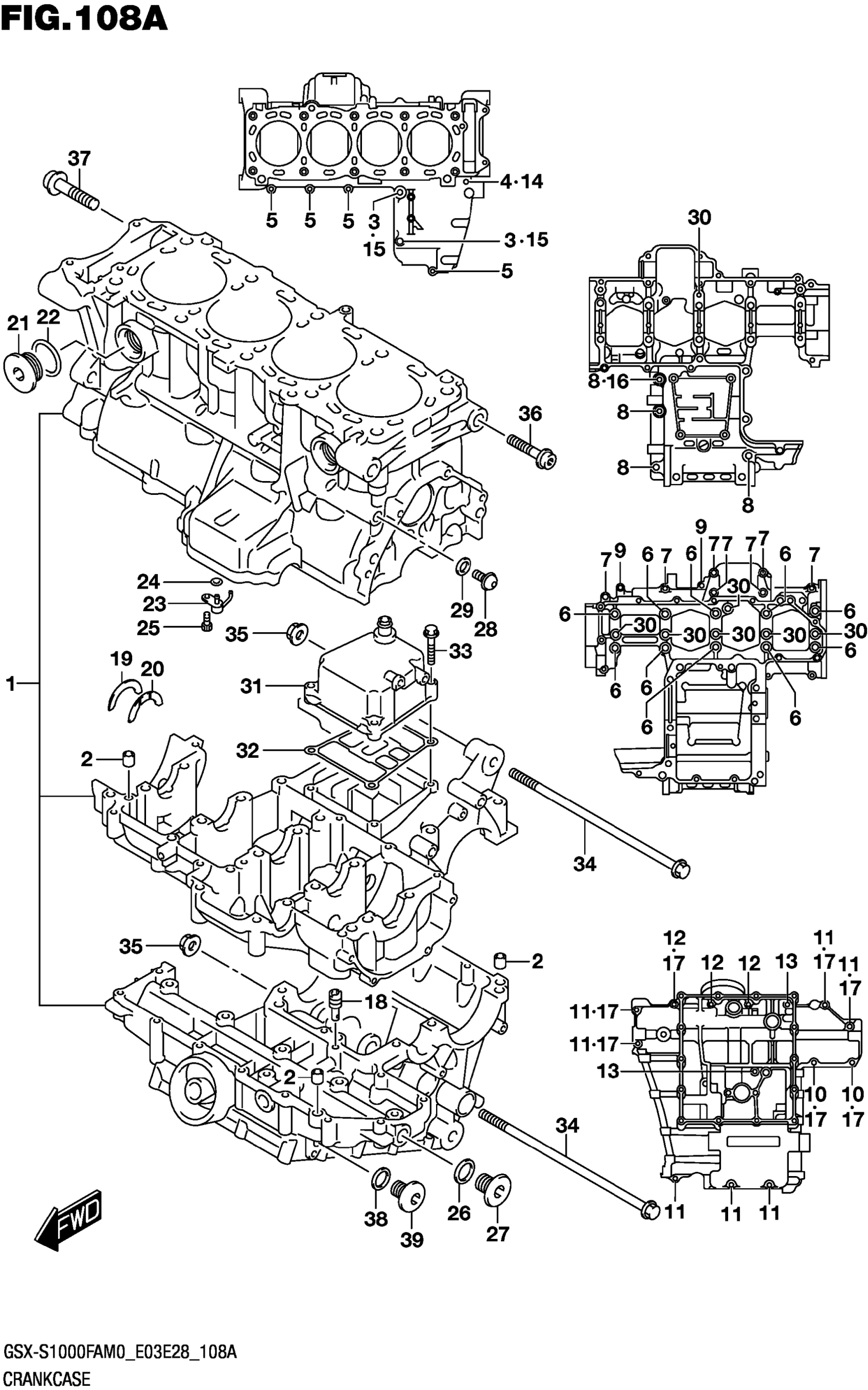

Suzuki GSX-S1000FAM0 (2020) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-04850

$4,008.40

2

PIN,CRANKCASE

11319-33E50

$5.32

3

.BOLT (8X120)

09106-08198

Unavailable

4

.BOLT

01547-0680A

$3.30

5

BOLT

01547-0640A

$2.32

6

.BOLT (9X95)

09103-09012

$8.76

7

.BOLT (8X55)

09103-08339

$3.49

8

.BOLT

07120-0865A

$4.77

9

BOLT

01547-0640A

$2.32

10

BOLT

01547-0630A

$2.32

11

BOLT

01547-0640A

$2.32

12

BOLT

01547-0660A

$2.82

13

.BOLT

01547-0670A

$2.92

14

GASKET (5.8X13X1.2)

09168-06023

$2.35

15

GASKET (8.2X14X1)

09168-08016

$1.65

16

GASKET (8.2X14X1)

09168-08016

$1.65

17

GASKET (5.8X13X1.2)

09168-06023

$2.35

18

JET (#140)

09493-28012

$16.87

19

.BEARING,CRANK THRUST

12228-48B00-0E0

$9.34

20-1

.BEARING,CRANK THRUST

12228-48B00-0B0

$11.57

20-2

.BEARING,CRANK THRUST

12228-48B00-0C0

$11.35

20-3

.BEARING,CRANK THRUST

12228-48B00-0D0

$11.78

20-4

.BEARING,CRANK THRUST

12228-48B00-0E0

$9.34

20-5

.BEARING,CRANK THRUST

12228-48B00-0F0

$11.78

20-6

.BEARING,CRANK THRUST

12228-48B00-0G0

$11.78

20-7

.BEARING,CRANK THRUST

12228-48B00-0H0

$9.66

21

.PLUG,WATER JACKET

11318-35F00

$16.78

22

.O-RING (D:3.1,ID:19.4)

09280-20002

$1.93

23

JET, PISTON COOLING

11390-21H01

$36.72

24

O-RING (D:1.2,ID:4)

09280-04004

$1.91

25

BOLT (6X12)

09106-06075

$2.48

26

GASKET (16X22X2)

09168-16002

$1.91

27

PLUG (16X12)

09248-16013

$4.82

28

PLUG (10X10)

09248-10010

$4.17

29

GASKET (10X14X3.6)

09168-10002

$2.13

30

O-RING (D:1.9,ID:7.8)

09280-08012

$3.68

31

COVER, BREATHER

11370-04K00

Unavailable

32

.GASKET, BREATHER COVER

11484-35F00

$4.94

33

BOLT

01547-0630A

$2.32

34

BOLT (10X225)

09103-10205

$19.52

35

NUT (M10)

09159-10115

$3.55

36

BOLT (10X45)

09106-10069

$4.24

37

BOLT (10X55)

09106-10070

$4.24

38

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

39

PLUG (14X12)

09248-14011

$2.98
