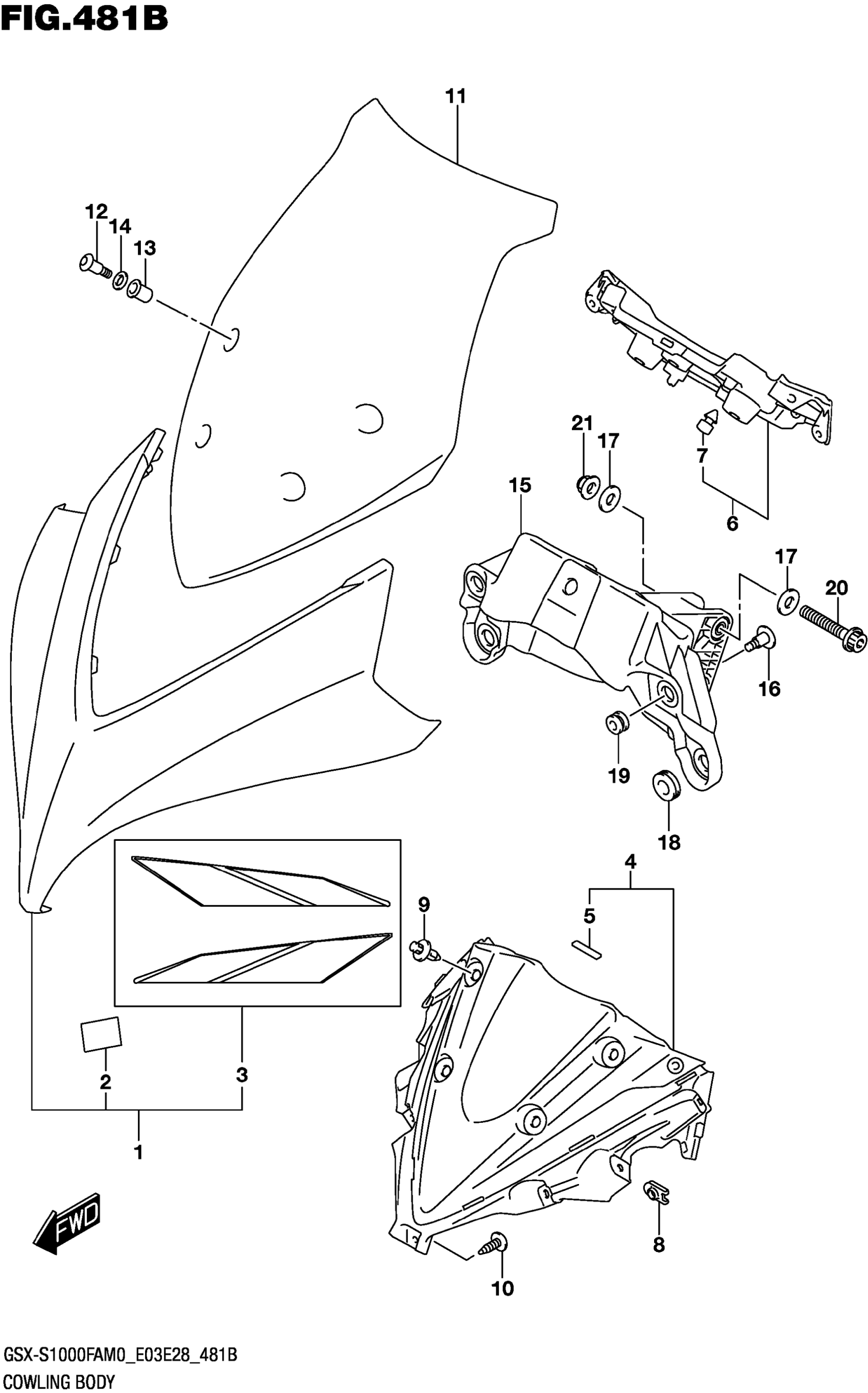

Suzuki GSX-S1000FAM0 (2020) COWLING BODY (E28) Diagram

#

Description
Price

1

COWLING,BODY (WHITE)

94410-04K20-YWW

Unavailable

2

FASTENER (25X33X2.6)

44572-02F01

$11.07

3

.TAPE SET,COWLING BODY (BLUE/ | LACK/WHITE)

68270-04K10-BVC

Unavailable

4

PANEL,METER FRONT

94640-04K00

$23.12

5

CUSHION,UNDER COWLING NO.1

94476-38C00

Unavailable

6

PANEL,METER REAR

94650-04K10

$30.28

7

CUSHION

09321-06036

$1.52

8

NUT

09148-06020

$4.38

9

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

10

SCREW

03541-0516A

$1.49

11

WINDSCREEN

94611-04K10

$135.63

12

SCREW

09139-05032

$1.89

13

NUT (M5)

09159-05019

$7.14

14

WASHER

09160-05048

$2.02

15

BRACE,COWLING

94510-04K00

$142.67

16

SCREW (6X20)

09139-06190

$4.17

17

WASHER (8.5X20X1.6) This part replaces 09160-08124.

09160-08054

$1.49

18

CUSHION (8X26X7)

09320-08028

$3.04

19

CUSHION (9X18X10)

09320-09501

$2.03

20

.BOLT

07120-0855A

$4.32

21

NUT

08313-2008A

$2.50
