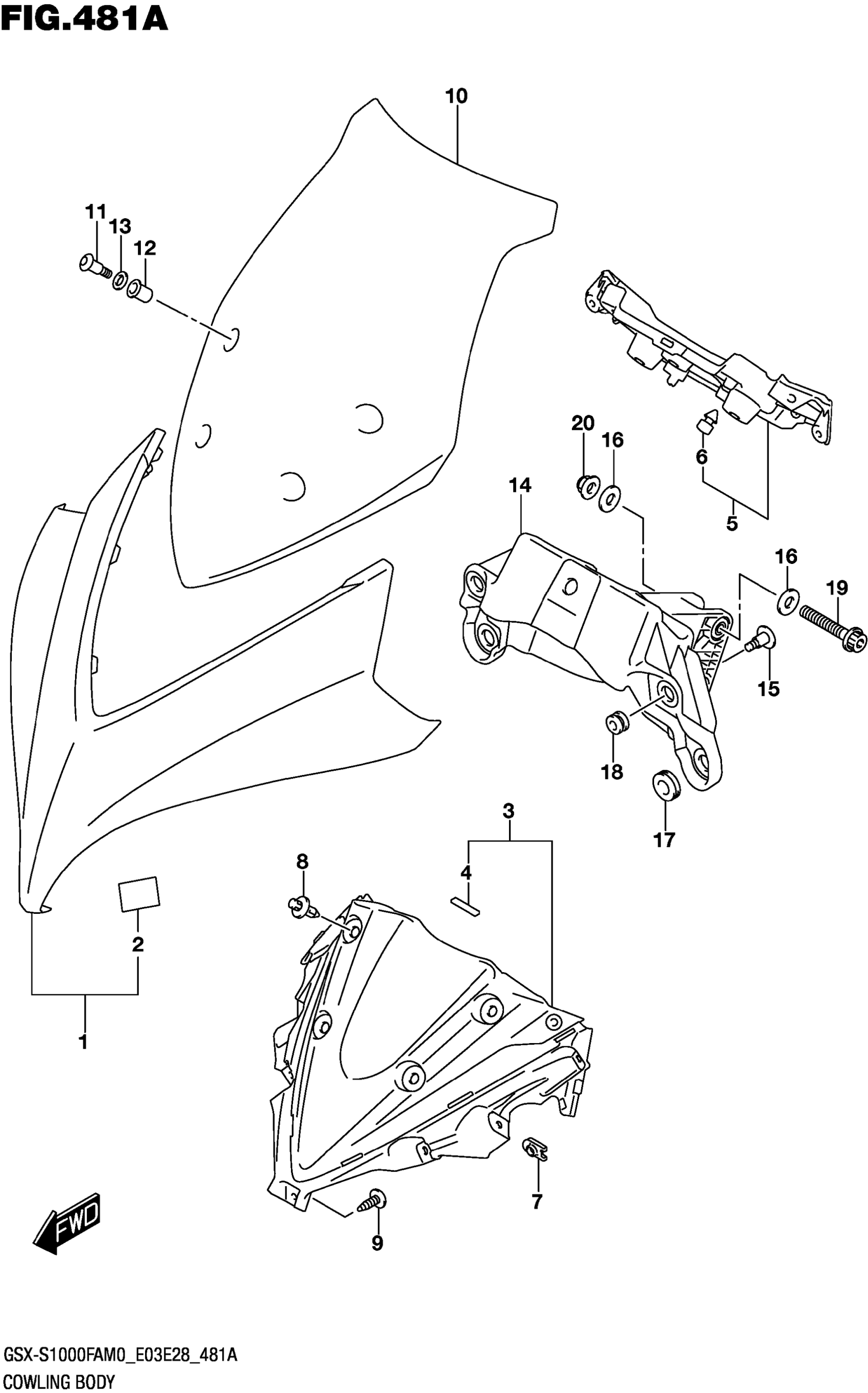

Suzuki GSX-S1000FAM0 (2020) COWLING BODY (E03,E33) Diagram

#

Description
Price

1-1

COWLING,BODY (BLACK) | FOR YVB

94410-04K00-YVB

$179.28

1-2

COWLING,BODY (BLUE) | FOR KEL

94410-04K00-YSF

$219.53

2

FASTENER (25X33X2.6)

44572-02F01

$11.07

3

PANEL,METER FRONT

94640-04K00

$23.12

4

CUSHION,UNDER COWLING NO.1

94476-38C00

Unavailable

5

PANEL,METER REAR

94650-04K10

$30.28

6

CUSHION

09321-06036

$1.52

7

NUT

09148-06020

$4.38

8

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

9

SCREW

03541-0516A

$1.49

10

WINDSCREEN

94611-04K10

$135.63

11

SCREW

09139-05032

$1.89

12

NUT (M5)

09159-05019

$7.14

13

WASHER

09160-05048

$2.02

14

BRACE,COWLING

94510-04K00

$142.67

15

SCREW (6X20)

09139-06190

$4.17

16

WASHER (8.5X20X1.6) This part replaces 09160-08124.

09160-08054

$1.49

17

CUSHION (8X26X7)

09320-08028

$3.04

18

CUSHION (9X18X10)

09320-09501

$2.03

19

.BOLT

07120-0855A

$4.32

20

NUT

08313-2008A

$2.50
