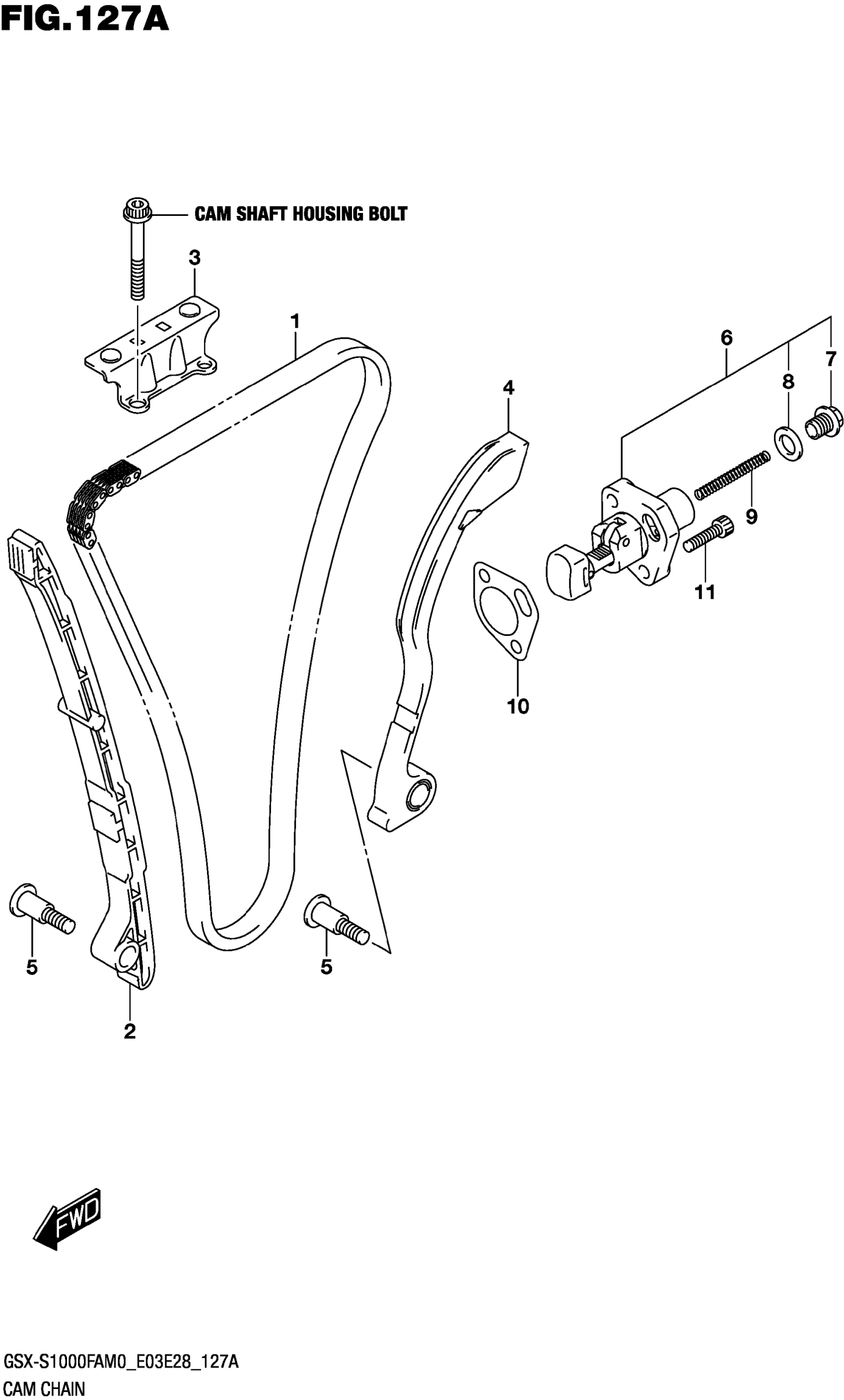

Suzuki GSX-S1000FAM0 (2020) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAMSHAFT DRIVE

12760-04K00

$150.22

2

GUIDE, CAM CHAIN NO.1

12771-21H01

$34.53

3

GUIDE,CAM CHAIN NO.2

12782-35F11

$21.47

4

TENSIONER,CAM CHAIN

12811-21H01

$71.20

5

BOLT,CAM CHAIN TENSIONER

12812-31G00

$4.19

6

ADJUSTER ASSY,TENSIONER

12830-41G11

$135.69

7

.PLUG

12833-05A00

$15.33

8

.GASKET,TENSIONER ADJUSTER

12837-24F10

$4.37

9

SPRING

12831-41G00

$5.29

10

.GASKET,TENSIONER ADJUSTER

12837-18G00

$4.37

11

BOLT (6X25)

07130-0625A

$2.64
