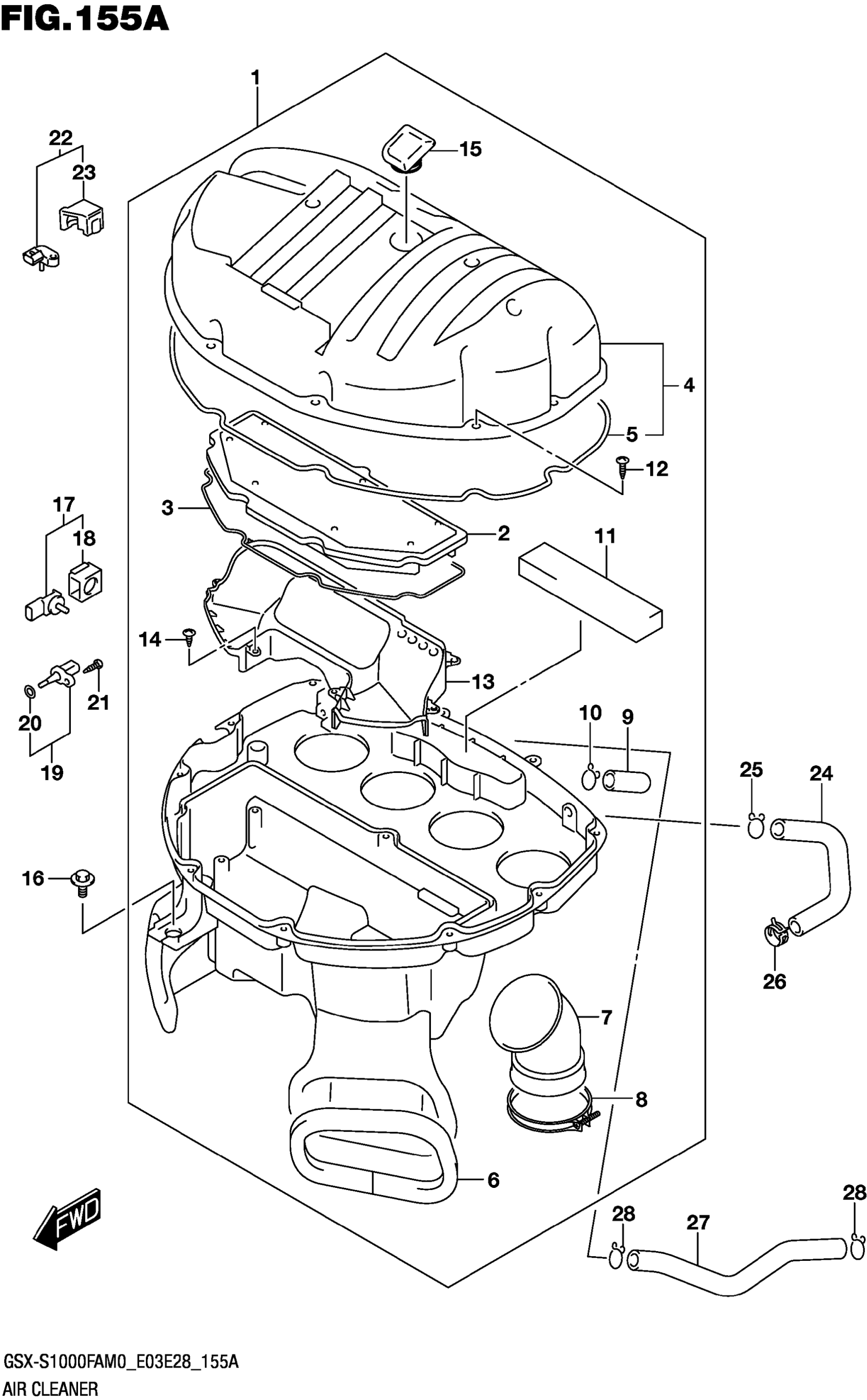

Suzuki GSX-S1000FAM0 (2020) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR

13700-04K01

Unavailable

2

.FILTER ASSY

13780-47H10

$52.77

3

.GASKET,CASE

13756-47H00

$6.05

4

.CAP,AIR CLEANER

13740-04K00

$62.40

5

..GASKET,CAP

13746-01H00

$7.82

6

.CUSHION,DUCT

13736-04K00

Unavailable

7

TUBE,OUTLET This part replaces 13881-04K00.

13881-04K01

$28.70

8

CLAMP,INTAKE PIPE

13827-40H01

$15.37

9

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.48

10

.CLIP (ID:14.5)

09401-14101

$2.34

11

.FILTER BREATHER

13788-04K00

$5.42

12

SCREW

03541-0520A

$1.80

13

.SEPARATOR,AIR CLEANER

13723-04K00

$21.83

14

SCREW

03541-0412A

$1.49

15

.PLUG,CLNR CAP

13744-04K00

$7.50

16

BOLT (6X16)

09111-06089

$2.62

17

SENSOR,BOOST

15630-29G40

$307.68

18

.COVER

15625-29G40

Unavailable

19

SENSOR,AIR TEMP

13650-41F10

$63.25

20

O-RING

13655-41F10

Unavailable

21

SCREW

03511-0516A

$1.86

22

SENSOR ASSY,BOOST

18501-04K01

Unavailable

23

HOLDER, SENSOR

18595-04K01

$9.03

24

HOSE,ISC VALVE

13697-04K00

Unavailable

25

CLIP (ID:15.5)

09401-15101

$2.26

26

CLIP (ID:16.5)

09401-16407

$2.44

27

HOSE, BREATHER This part replaces 13853-04K00.

13853-04K01

$13.63

28

.CLIP (ID:14.5)

09401-14101

$2.34
