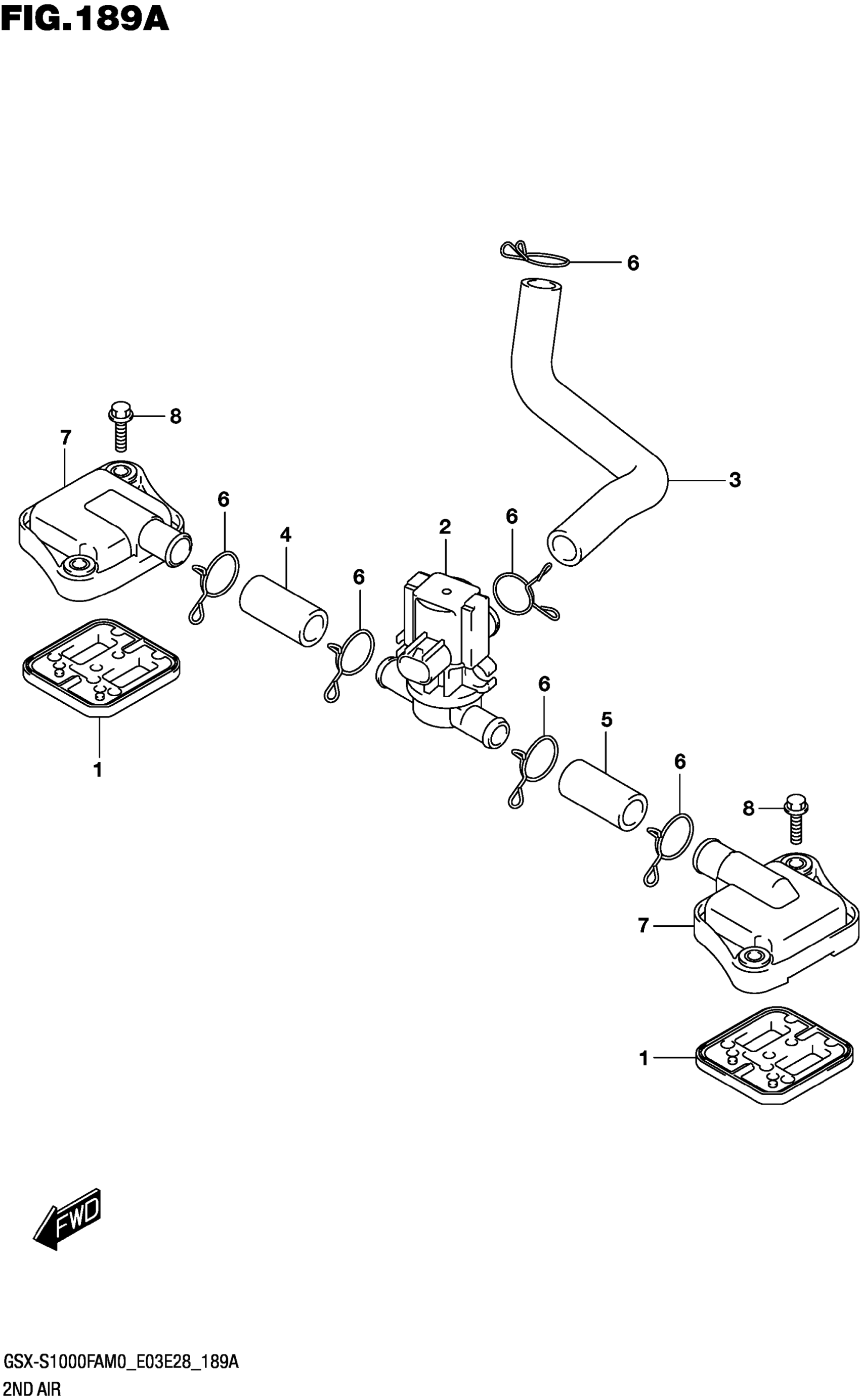

Suzuki GSX-S1000FAM0 (2020) 2ND AIR Diagram

#

Description

Price

1

VALVE ASSY,2ND AIR REED

18450-35F11

$112.45

2

VALVE ASSY,AIR CUT

18510-29G70

$121.60

3

HOSE, 2ND AIR CLNR

18711-04K00

Unavailable

4

HOSE, 2ND AIR VALVE RH

18461-04K01

$7.10

5

HOSE, 2ND AIR VALVE LH

18471-04K01

$7.10

6

CLIP

09401-17201

$3.42

7

COVER,2ND AIR REED VALVE

18531-35F30

$15.07

8

BOLT (6X20)

09103-06201

$2.54
