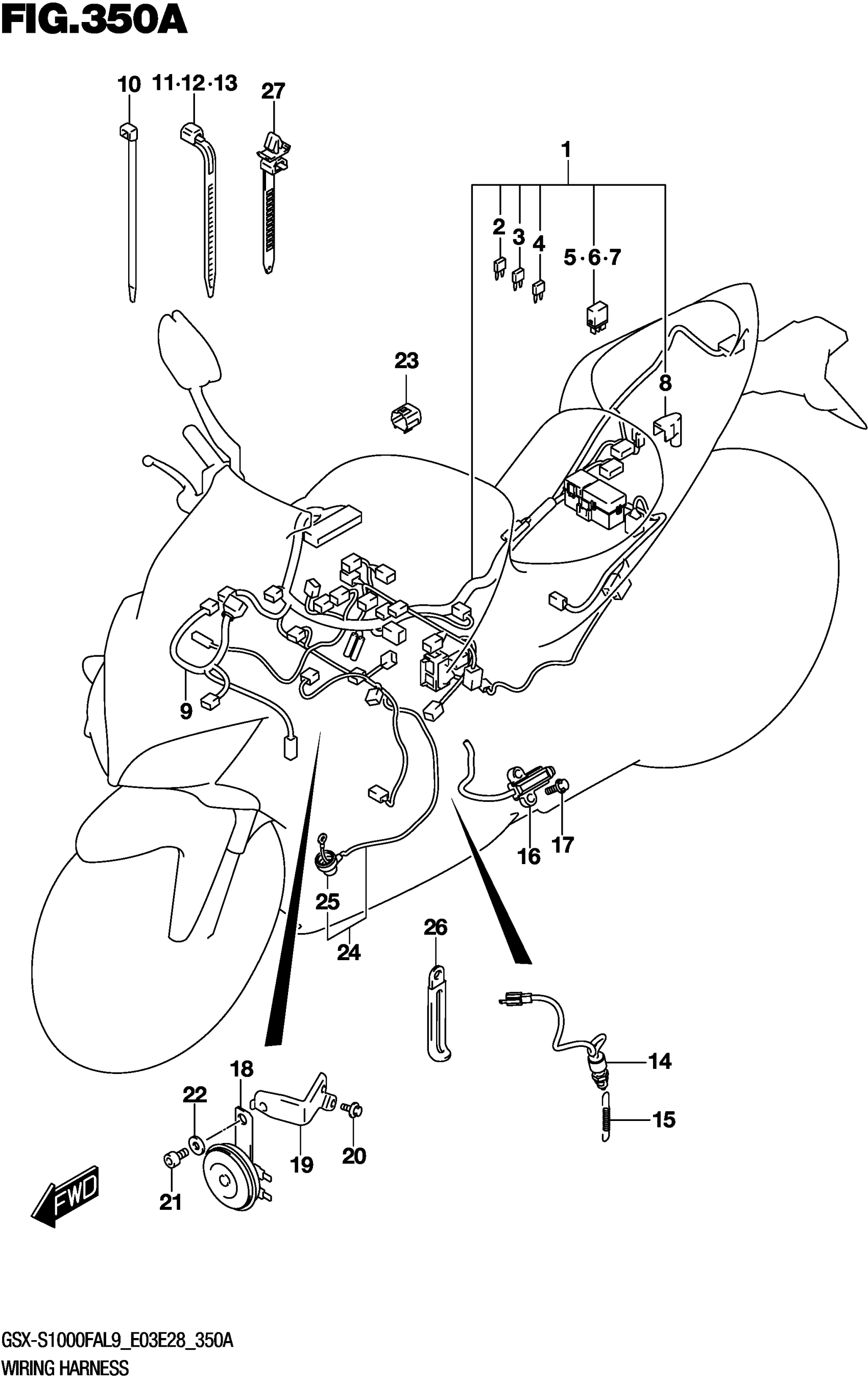

Suzuki GSX-S1000FAL9 (2019) WIRING HARNESS (GSX-S1000FAL9 E03) Diagram

#

Description
Price

1

HARNESS,WIRING

36610-38K70

Unavailable

2

.FUSE (10A)

09481-10504

$2.06

3

.FUSE (15A)

09481-15504

$2.07

4

.FUSE (20A)

09481-20504

$1.92

5

.RELAY ASSY | FOR FUEL PUMP

38860-76F01

$34.37

6

.RELAY ASSY | FOR FAN MOTOR

38860-76F01

$34.37

7

.RELAY ASSY | FOR SIDE STAND

38860-76F01

$34.37

8

.CAP,BATTERY PLUS TERMINAL

33624-04K00

$8.12

9

HARNESS,WIRING This part replaces 36620-04K00.

36620-04K01

$109.32

10

CLAMP (L:145)

09407-14407

$3.57

11

CLAMP (L:165)

09407-18402

$2.19

12

CLAMP (L:190)

09407-19401

$3.05

13

CLAMP (L:125)

09407-14403

$2.26

14

SWITCH ASSY, STOP LAMP

37740-31D00

$28.23

15

SPRING

09443-06054

$3.85

16

SWITCH ASSY,SIDE STAND This part replaces 37840-35F00.

37840-35F02

$56.65

17

BOLT (6X20)

01550-0620A

$1.97

18

HORN ASSY This part replaces 38500-48G20.

38500-48G21

$55.08

19

PLATE, HORN

38590-04K10

$13.38

20

BOLT (6X16)

09116-06006

$1.86

21

BOLT

07130-0812A

$3.72

22

WASHER (8.5X22X2.0)

09160-08127

$2.12

23

CAP

36654-06J20

Unavailable

24

WIRE,OIL PRESSURE SWITCH LEAD

36851-44G01

$17.47

25

.CAP,OIL PRESSURE SWITCH

36618-31J00

Unavailable

26

CLAMP (L:45)

09404-06429

$1.83

27

CLAMP (L:90)

09407-11402

$1.80
