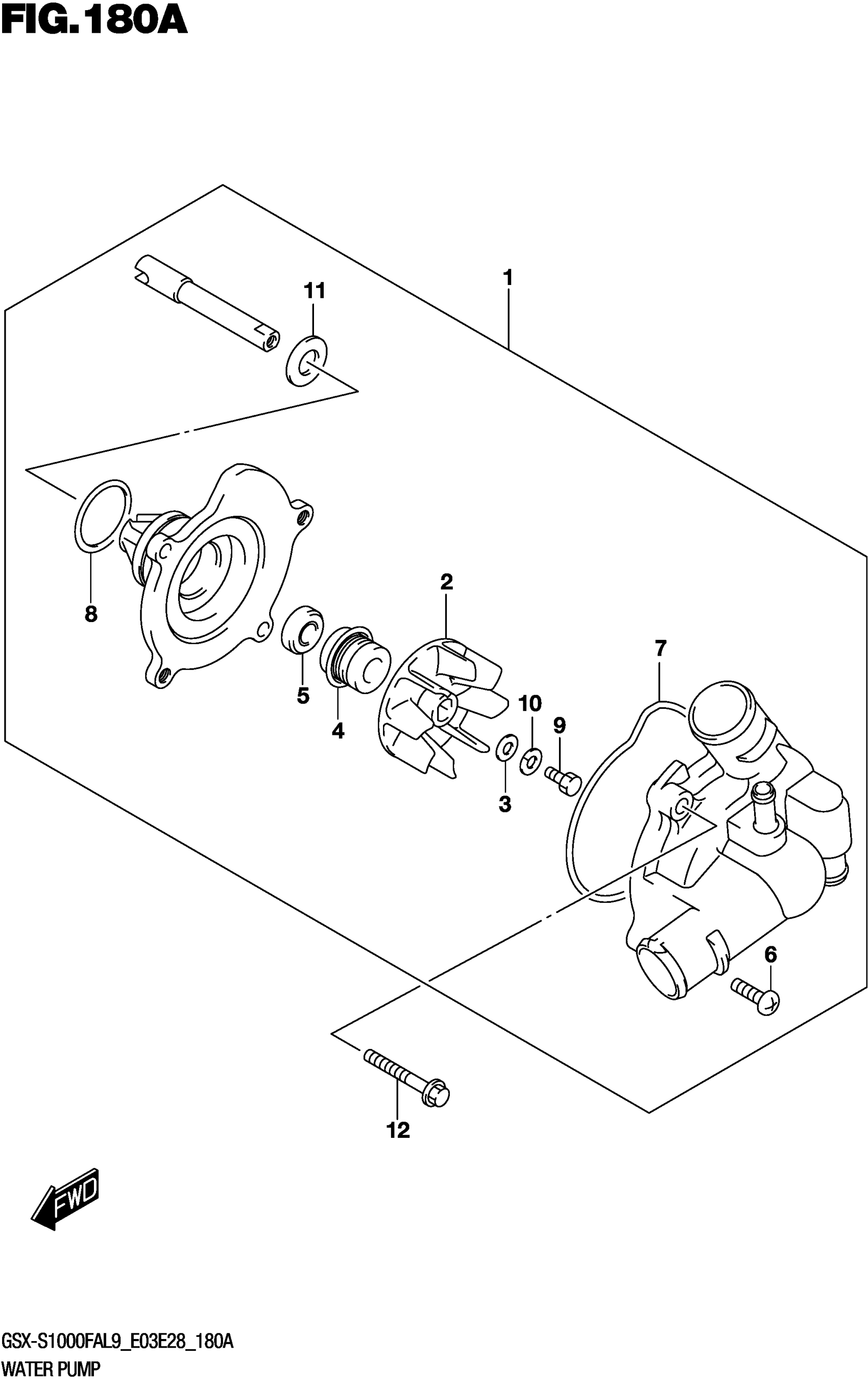

Suzuki GSX-S1000FAL9 (2019) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY, WATER This part replaces 17400-04K00.

17400-04K01

$233.00

2

.IMPELLER

17491-17E01

$26.78

3

.GASKET (6X15X2.2)

09168-06025

$2.92

4

.SEAL,MECHANICAL

17470-02F11

$29.22

5

.SEAL,OIL (10X21X5)

17461-48G00

$13.23

6

.SCREW

02112-0616A

$1.49

7

.O-RING This part replaces 17418-33400.

17418-33401

$4.48

8

.O-RING

17435-33400

$15.29

9

.BOLT (6X13)

09100-06099

$2.00

10

.WASHER

09164-06006

$2.61

11

.WASHER

17432-07G00

$2.60

12

BOLT (L:35)

09103-06530

$2.10
