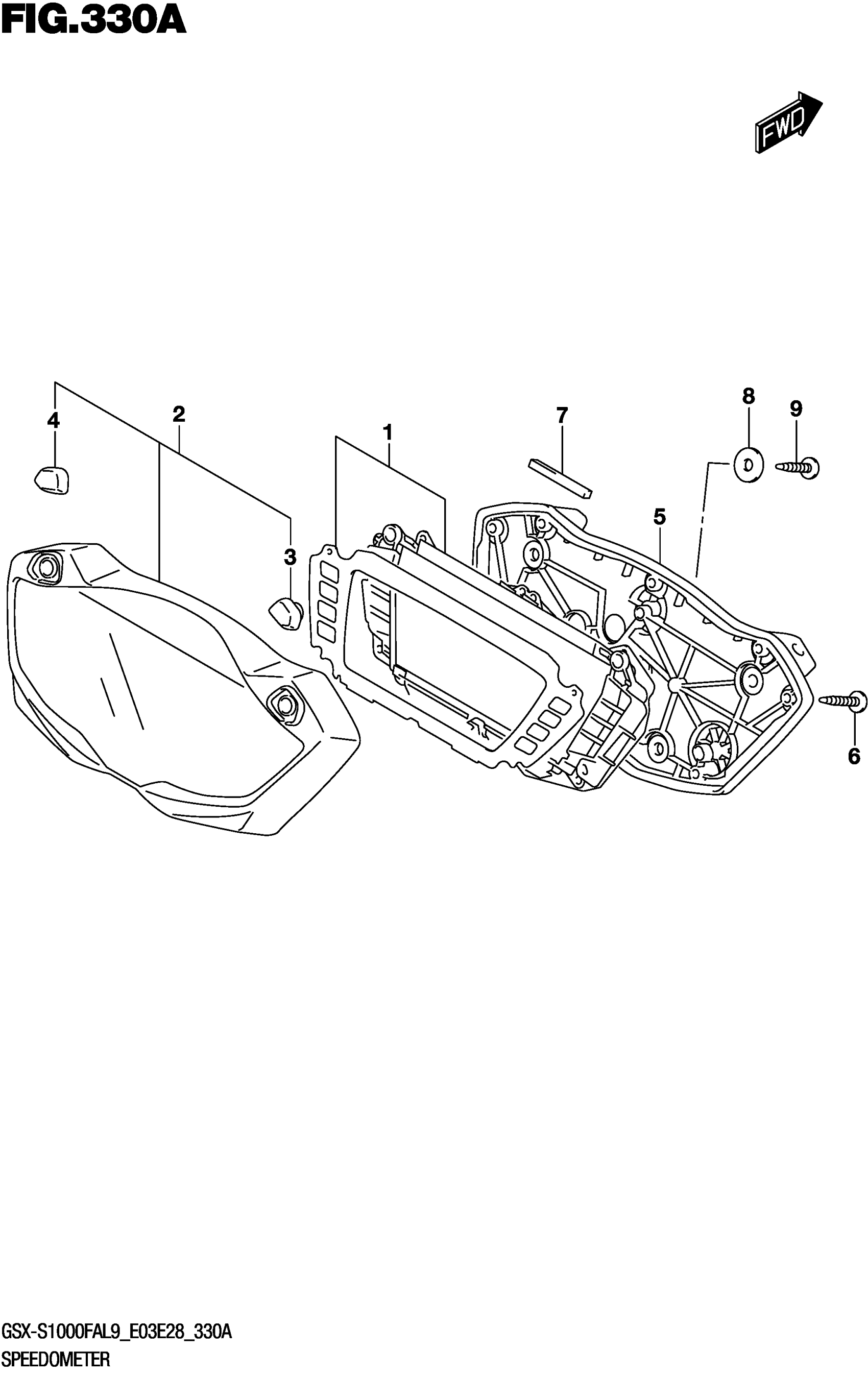

Suzuki GSX-S1000FAL9 (2019) SPEEDOMETER (GSX-S1000FAL9 E03) Diagram

#

Description
Price

1

SPEEDOMETER

34120-04KK1

$743.22

2

CASE ASSY,UPPER

34150-04K01

$124.73

3

.SWITCH RUBBER RH

34124-04K00

$6.91

4

.SWITCH RUBBER LH

34124-04K10

$6.91

5

CASE ASSY,LOWER

34111-04K00

$69.52

6

SCREW

34183-10C00

$2.11

7

CUSHION,SPEEDOMETER

34188-04K00

$2.35

8

WASHER (4.5X16X1.2)

09160-04026

$2.05

9

SCREW

03541-0416A

$1.49
