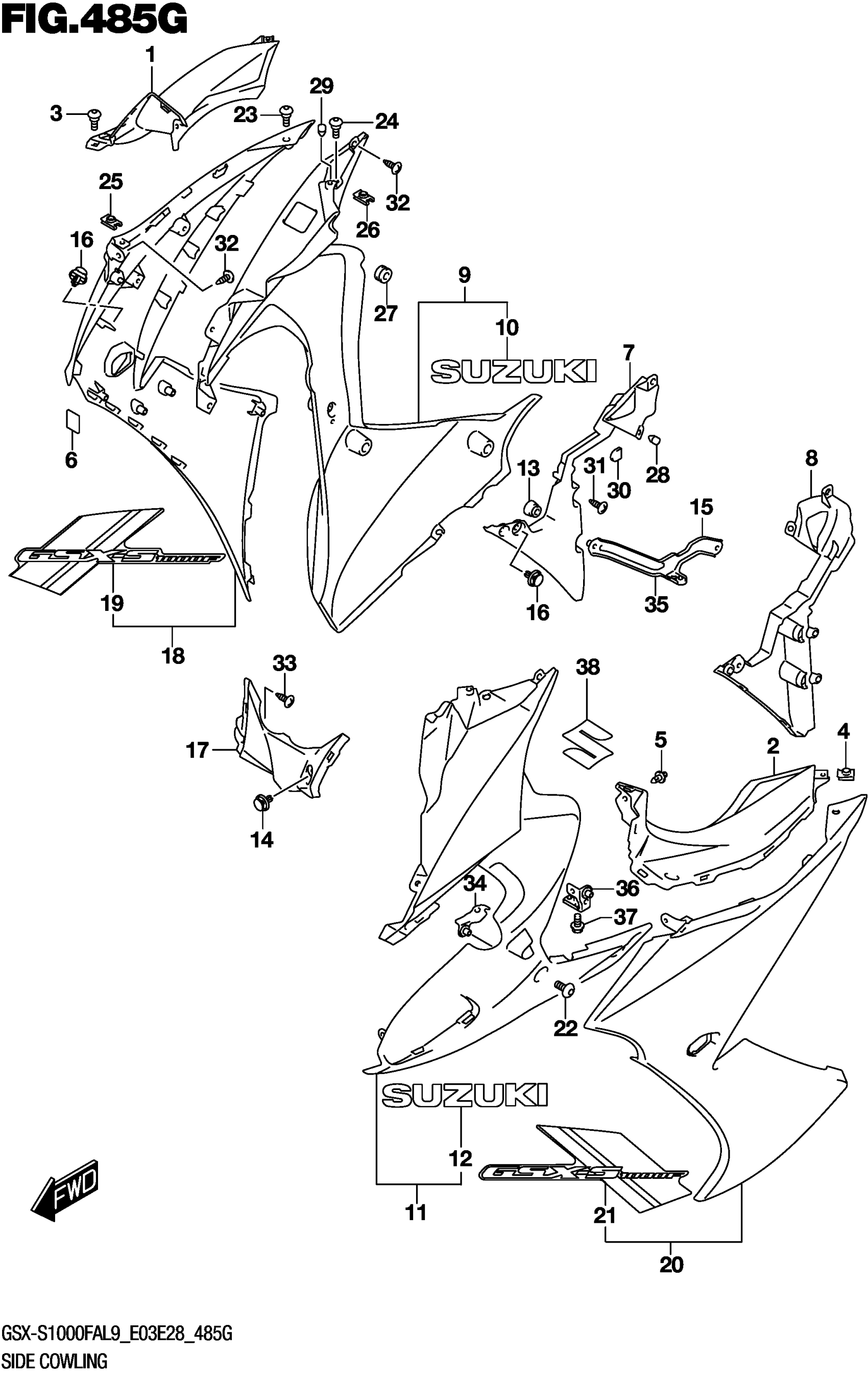

Suzuki GSX-S1000FAL9 (2019) SIDE COWLING (GSX-S1000FZAL9 E03) Diagram

#

Description
Price

1

PANEL,METER RH

94631-04K00

$14.70

2

PANEL,METER LH

94632-04K00

$17.60

3

BOLT (5X13)

09139-05074

$2.61

4

NUT (M5)

09148-05052

$3.37

5

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

6

FASTENER,COWLING (20X15X0.8)

44572-37H00

$9.83

7

COWLING,UNDER INNER RH

94461-04K00

$23.09

8

COWLING,UNDER INNER LH

94462-04K00

$27.15

9

COWLING, UNDER RH (BLACK)

94470-04KA0-4UX

$296.42

10

.EMBLEM, "SUZUKI" (BLUE)

68181-04KA0-YSF

$16.65

11

COWLING, UNDER LH (BLACK)

94480-04KA0-4UX

$296.42

12

.EMBLEM, "SUZUKI" (BLUE)

68181-04KA0-YSF

$16.65

13

CUSHION,UNDER COWLING,L

94479-15H00

$4.48

14

CLIP

94479-35F00

$5.62

15

CLIP

94479-35F00

$5.62

16

CLIP

94479-35F00

$5.62

17

COWLING,UNDER CTR

94491-04K00

$8.43

18

COVER, SIDE RH (BLACK)

94670-04K20-4TX

$272.45

19

.EMBLEM, SIDE COWLING

68685-04K10-BUP

Unavailable

20

COVER, SIDE LH (BLACK)

94680-04K20-4TX

$272.45

21

.EMBLEM, SIDE COWLING

68695-04K10-BUP

Unavailable

22

BOLT (6X12)

09106-06117

$5.10

23

SCREW (5X13)

09139-05064

$2.57

24

BOLT (5X13)

09139-05074

$2.61

25

NUT (M5)

09148-05052

$3.37

26

NUT (M5)

09148-05052

$3.37

27

CUSHION (6X18X6)

09320-06504

$4.96

28

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

29

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

30

CUSHION

09329-18001

$1.91

31

SCREW

03541-0516B

$1.78

32

SCREW

03541-0516B

$1.78

33

SCREW

03541-0516B

$1.78

34

BRACKET,UNDER COWL FR LH

94520-04K00

$21.40

35

BRACKET,UNDER COWL RH

94530-04K00

$50.27

36

BRACKET,UNDER COWL RR LH

94540-04K00

$12.05

37

BOLT

01550-0612A

$1.97

38

EMBLEM, S

68111-47HA0

$40.44
