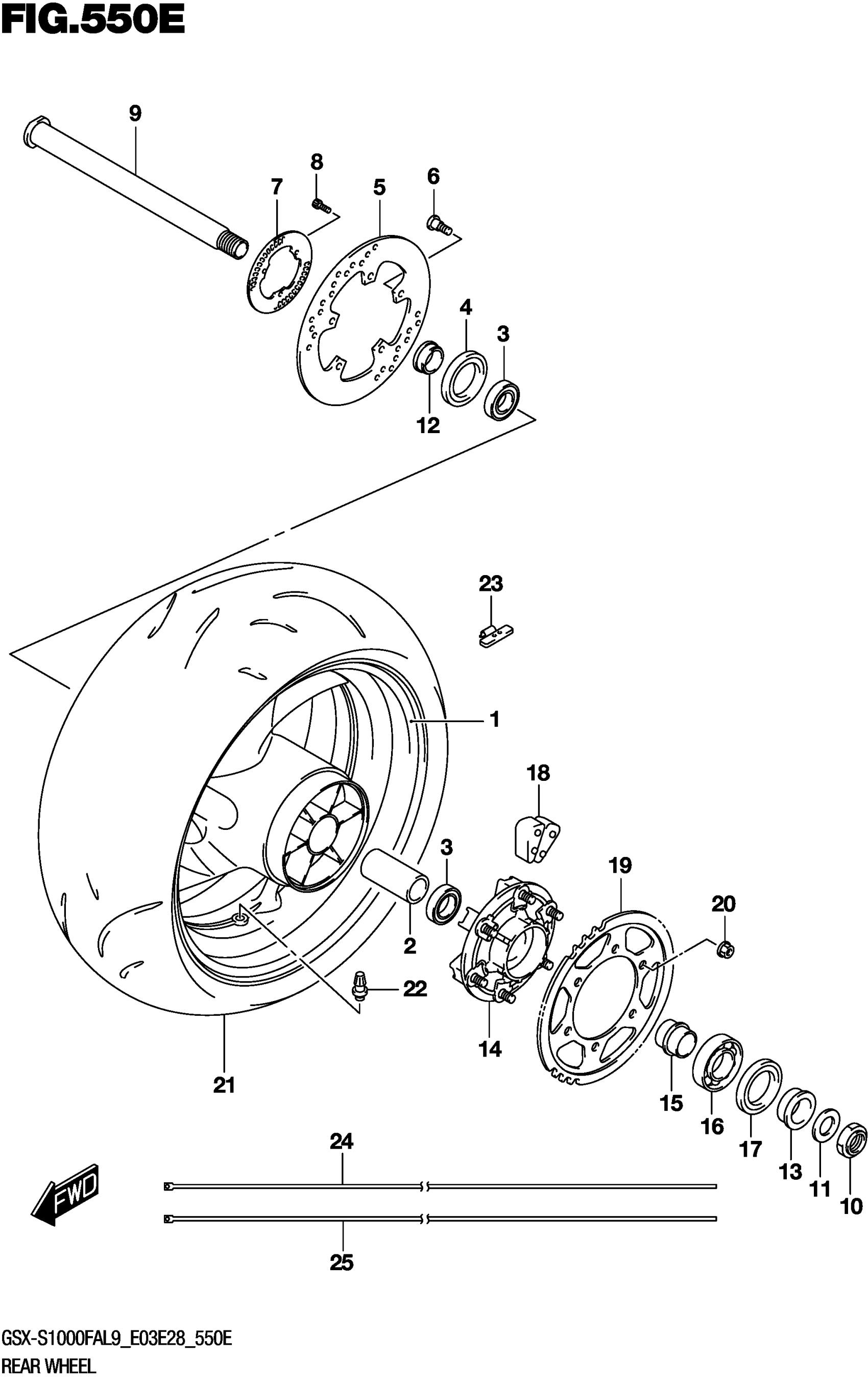

Suzuki GSX-S1000FAL9 (2019) REAR WHEEL (GSX-S1000FYAL9 E28) Diagram

#

Description
Price

1

WHEEL,REAR (17M/CXMT6.00,BLAC This part replaces 64111-04K02-019.

64111-04K30-019

$913.98

1

WHEEL,REAR (17M/CXMT6.00,BLAC This part replaces 64111-04K02-019.

64111-04K30-019

$913.98

2

SPACER,RR HUB BEARING

64731-35F10

$51.42

3

BEARING (28X52X12) This part replaces 09262-28052.

09262-28062

$26.38

4

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

$7.85

5

DISC, REAR BRAKE

69211-04K00

$142.63

6

BOLT (8X21)

09106-08160

$3.57

7

RING,SPEED SENSOR RR (50T)

64162-04K00

$30.17

8

BOLT

07130-0512A

$2.19

9

AXLE, RR

64711-49G30

$142.63

10

NUT,REAR AXLE

64721-17K00

$15.94

11

WASHER (25.2X42X3.2)

09160-25070

$4.77

12

SPACER,REAR AXLE,R

64741-35F10

$13.49

13

SPACER,REAR AXLE,L

64751-47H10

$18.73

14

DRUM,REAR SPROCKET

64610-04K00

$254.32

15

RETAINER,RR SPROCKET DRUM

64733-35F00

$26.61

16

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$39.40

17

SEAL,OIL (39X65X7)

09285-39001

$10.62

18

ABSORBER,RR HUB SHOCK

64651-47H10

$25.52

19

SPROCKET, REAR (NT:44)

64511-04K00

$97.45

20

NUT

08319-3110A

$2.73

21

TIRE,RR(190/50Z | D214 M T/L(N) This part replaces 65110-04K00.

65110-04K02

$333.30

21

TIRE,RR(190/50Z | DUNLOP This part replaces 65110-04K00.

65110-04K02

$333.30

22

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

23-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

23-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

23-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47

24

TAPE, WHEEL RH

68251-04K00-BUM

$60.88

25

TAPE, WHEEL LH

68252-04K00-BUM

$60.88
