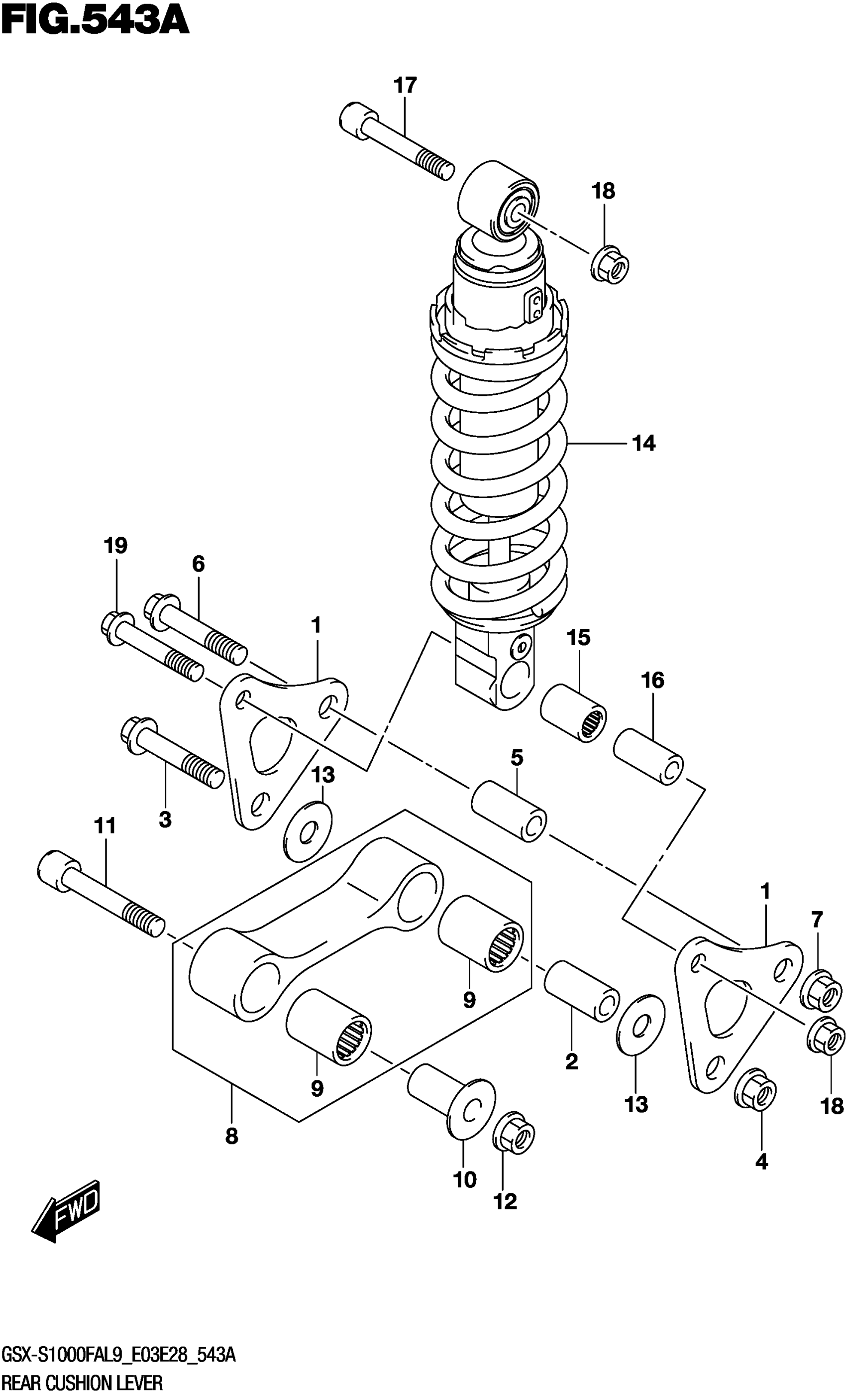

Suzuki GSX-S1000FAL9 (2019) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER, REAR CUSHION

62611-04K00

$15.75

2

SPACER,RR CUSHION LEVER FR (1

62317-27C10

$15.78

3

BOLT (12X62)

62668-42A02

$12.03

4

NUT

09159-12056

$6.65

5

SPACER,RR CUSHION LEVER FR

62317-44B00

$23.73

6

BOLT (12X62)

62668-42A02

$12.03

7

NUT

09159-12056

$6.65

8

ROD, RR CUSHION

62600-31840

$58.83

9

.BEARING This part replaces 09263-20074.

09263-20116

$28.11

10

SPACER,RR CUSHION ROD FR

62647-47H00

$39.83

11

BOLT,RR CUSHION ROD

62658-04K00

$16.23

12

NUT

09159-12056

$6.65

13

WASHER (12X34X1.0)

09160-12037

$3.52

14

ABSORBER ASSY,REAR SHOCK (GRA

62100-04K30-17U

$766.52

14

ABSORBER ASSY,REAR SHOCK (GRA

62100-04K30-17U

$766.52

15

BEARING (17X24X32)

09263-17046

$45.05

16

SPACER,RR SHOCK ABS LWR

62317-47H00

$23.08

17

BOLT,RR SHOCK ABS UPPER

62658-04K10

$16.23

18

NUT (M10)

09159-10115

$3.21

19

BOLT (10X58)

09103-10428

$5.52
