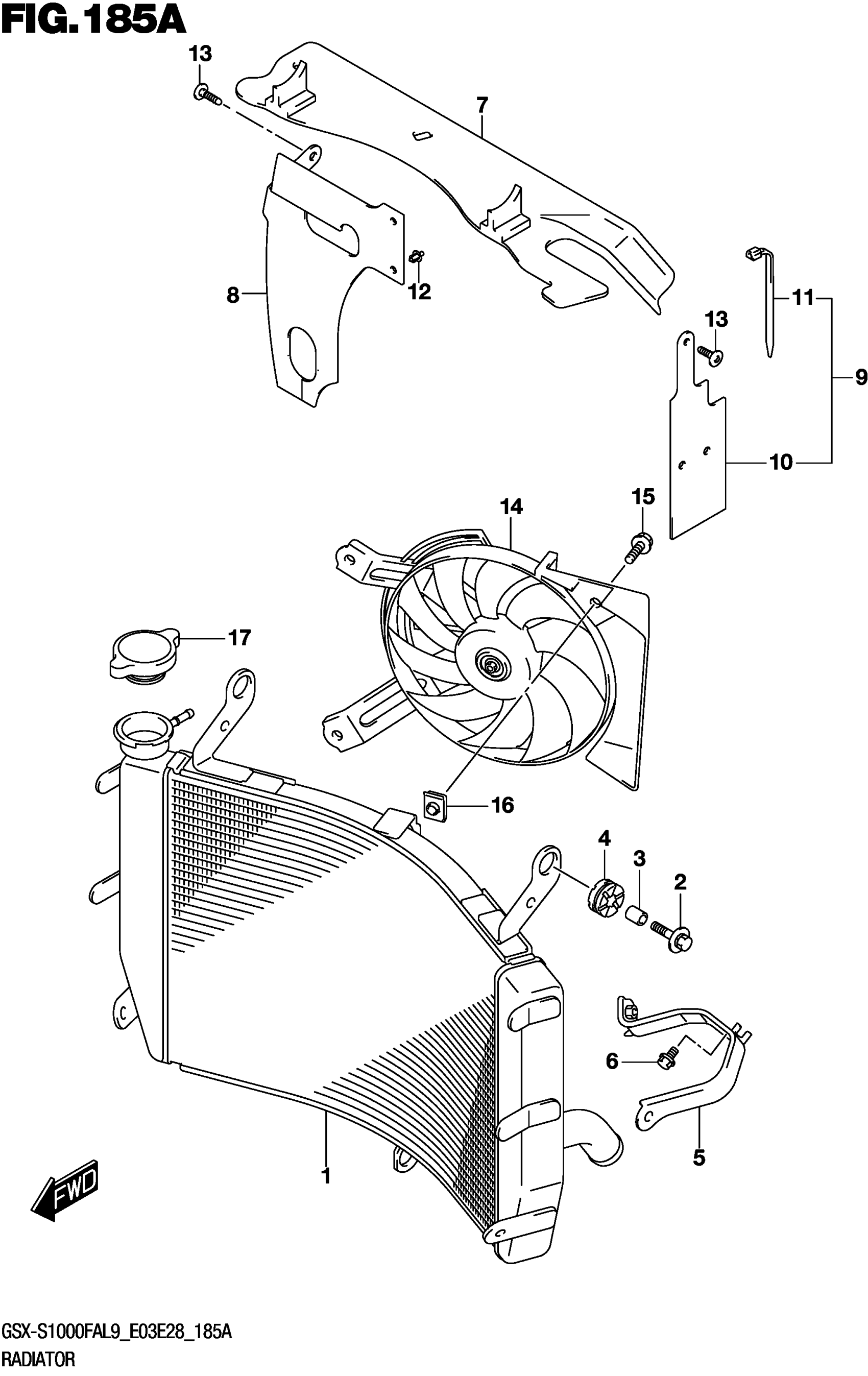

Suzuki GSX-S1000FAL9 (2019) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY,WATER

17710-04K00

$900.32

2

BOLT (6X25)

09118-06097

$2.50

3

SPACER (6.5X10X12)

09180-06290

$2.35

4

CUSHION

09320-10051

$2.99

5

BRACKET,RADIATOR LOWER

17760-04K00

$19.45

6

BOLT

01550-0612A

$1.97

7

SHIELD,RADIATOR HEAT

17771-04K00

Unavailable

8

.SHIELD, HEAT RH

17772-04K00

Unavailable

9

SHIELD ASSY,RADIATOR HEAT LH

17770-04K00

Unavailable

10

.SHIELD,HEAT LH

17773-04K00

Unavailable

11

CLAMP (L:190)

09407-19401

$3.05

12

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

13

CLIP

09409-06315

$1.57

14

FAN ASSY, RADIATOR This part replaces 17800-04K00.

17800-48K00

$450.78

15

BOLT

01550-0616A

$1.97

16

NUT,RADIATOR FAN

17802-14F00

$3.38

17

CAP,RADIATOR (1.1)

17730-14G00

$42.83
