Description

Price

1

GRIP,THROTTLE

57110-07L00

$20.40

2

LEVER ASSY,BRAKE

57300-29G40

$93.77

3

.BOLT,LEVER PIVOT

57431-29G00

$9.31

4

.NUT

08319-2106A

$1.91

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$38.46

6

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.19

7

GRIP,L

57211-21H01

$11.13

8

LEVER ASSY,CLUTCH This part replaces 57500-41G50.

57500-41G51

$107.15

9

.LEVER,CLUTCH

57621-41G10

$35.19

10

.BOLT,CLUTCH LEVER PIVOT

57431-41G00

$11.64

11

.COLLAR

57532-41G00

$19.74

12

NUT

08319-3106A

$2.03

13

.SWITCH ASSY,CLUTCH

57560-05A10

$30.85

14

.SCREW,CLUTCH SWITCH

57562-41G01

$9.58

15

BOLT

01547-0625B

$2.45

16

.NUT,ADJUSTER

57641-33E21

$35.94

17

.SPRING,ADJUST

57644-33E00

$9.07

18

.SCREW,SPRING

57642-33E00

$4.02

19

.HOLDER,CLUTCH LEVER

57512-41G00

$37.53

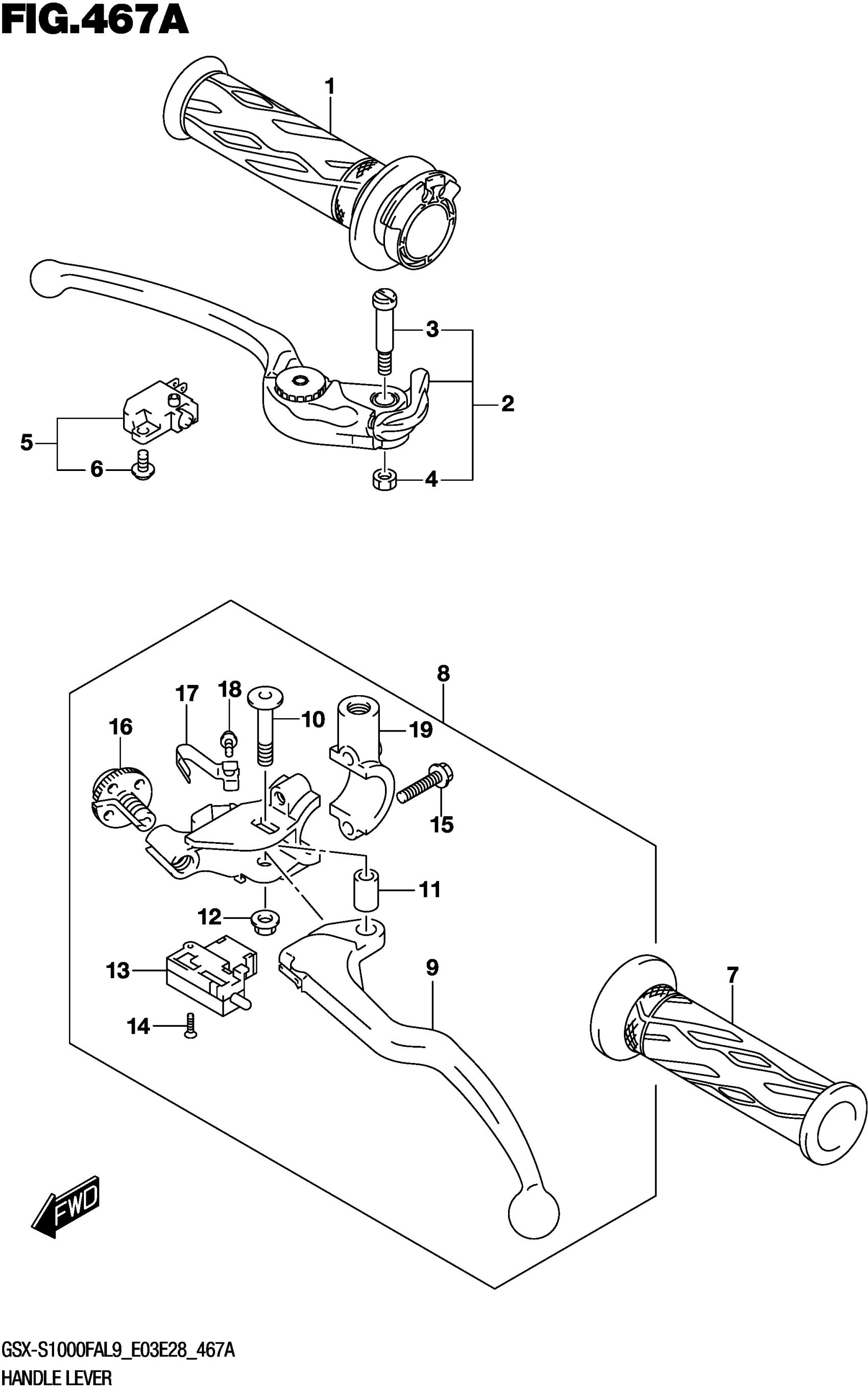

Suzuki GSX-S1000FAL9 (2019) HANDLE LEVER Diagram
