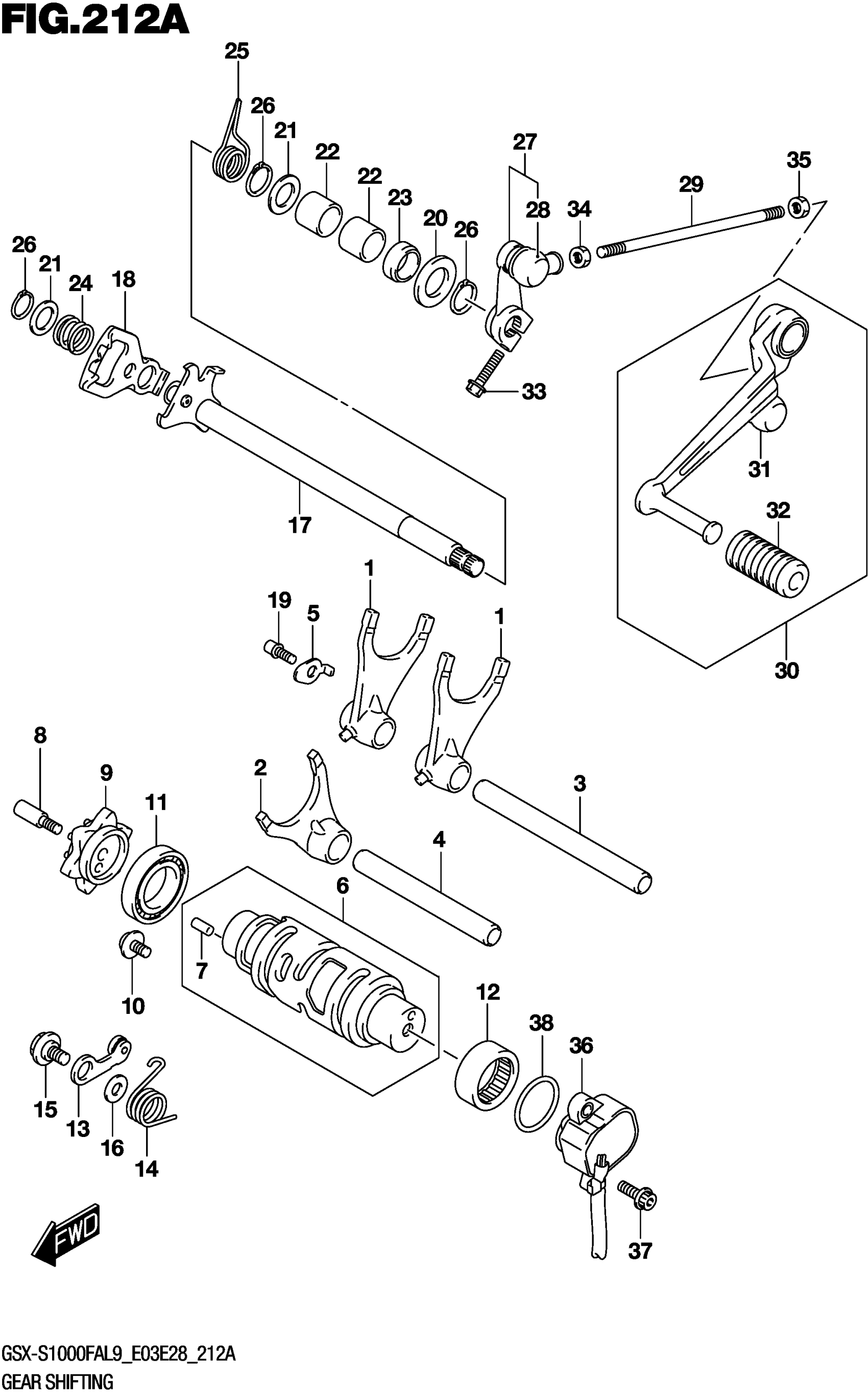

Suzuki GSX-S1000FAL9 (2019) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-35F11

$79.26

2

FORK, GEAR SHIFT NO.3

25231-35F11

$116.12

3

SHAFT,SHIFT FORK NO.2 (L:132)

25411-24F00

$32.85

4

SHAFT,GEAR SHIFT FORK (L:110)

25411-26D01

$28.98

5

RETAINER, GEAR SHIFT FORK

25451-35F00

$6.83

6

CAM,GEAR SHIFT

25310-40F00

$285.47

7

PIN (4X13.8)

04221-04089

$1.10

8

BOLT,GEAR SHIFT CAM PLATE

25312-42F01

$7.28

9

PLATE,GEAR SHIFT CAM

25381-13E00

$63.22

10

SCREW (6X12)

09136-06147

$3.48

11

BEARING (25X47X8)

09262-25006

$23.05

12

BEARING (25X32X12) | LH

09263-25018

$19.30

13

STOPPER, SHIFT CAM

25350-35F00

$19.62

14

SPRING,SHIFT CAM STOPPER

25355-03G00

$5.75

15

BOLT (6X14.3)

09111-06041

$2.63

16

WASHER

08211-06141

$1.61

17

SHAFT,GEAR SHIFT

25510-40F00

$128.60

18

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$22.32

19

STOPPER, GEAR SHIFT ARM

25671-35F00

$5.18

20

WASHER (14X29X0.8) | LH

09160-14016

$1.91

21

SHIM (14X22X1.0)

09181-14167

$2.55

22

BEARING (14X20X12)

09263-14027

$12.21

23

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.04

24

SPRING

09440-17009

$1.73

25

SPRING

09444-20003

$8.05

26

CIRCLIP

08331-3114A

$1.89

27

ARM COMP,GEAR S This part replaces 25520-04K10.

25520-04K11

$48.82

28

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

29

ROD, GEAR SHIFT LINK

25525-24F10

$12.38

30

LEVER ASSY, GEAR SHIFT This part replaces 25600-04K10.

25600-04K11

$94.93

31

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

32

.RUBBER,GEAR SHIFT PEDAL

25652-20C00

$4.98

33

BOLT

01547-0620A

$2.01

34

NUT

08310-0006A

$1.83

35

NUT

09140-06025

$1.84

36

SENSOR ASSY,GEA This part replaces 37730-41G02.

37730-41G03

$71.20

37

BOLT (5X16)

09106-05023

$2.80

38

O-RING (D:2.4,ID:26.2)

09280-26005

$2.31
