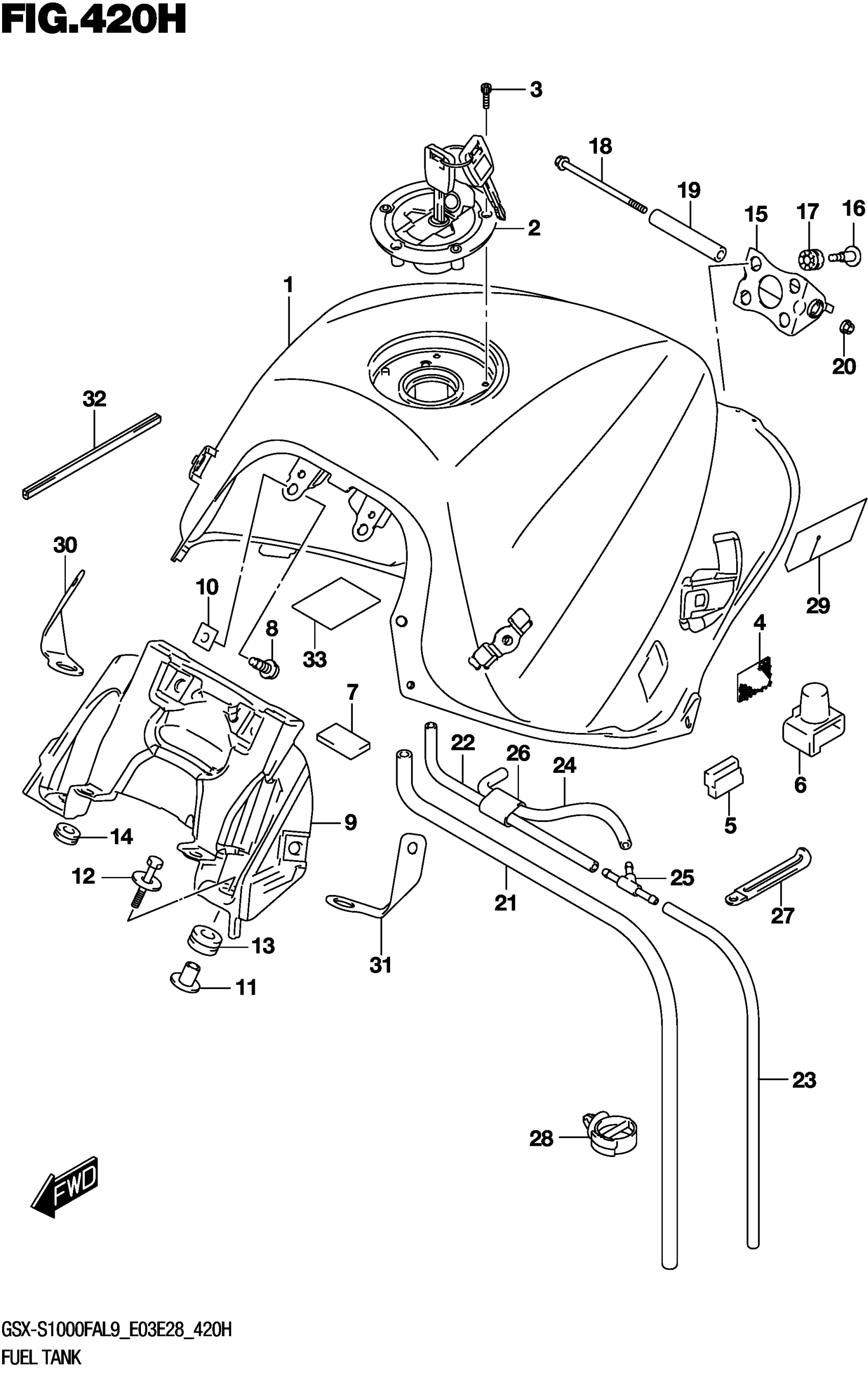

Suzuki GSX-S1000FAL9 (2019) FUEL TANK (GSX-S1000FZAL9 E28) Diagram

#

Description
Price

1

TANK ASSY,FUEL (BLACK)

44100-04K40-YKV

$1,339.58

2

CAP SET,FUEL TANK FILLER

44200-17820

$242.68

3

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

4

FASTENER (33X25X2.6)

44572-13G00

$10.13

5

CUSHION, FUEL TANK SIDE

44541-41G00

$5.47

6

CUSHION, FUEL TANK REAR This part replaces 44542-04K00.

44542-04K01

$10.00

7

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.80

8

SCREW, FUEL TANK FRONT BRKT

44543-04K00

Unavailable

9

BRACKET, FUEL TANK FRONT

44521-04K00

$106.70

10

NUT (M6)

44523-47H00

$13.30

11

SPACER,FUEL TANK FRONT

44512-04K00

$7.97

12

BOLT (6X30)

09116-06172

$2.50

13

CUSHION (10X22X13)

09320-10050

$3.07

14

CUSHION (6X18X6)

09320-06504

$4.47

15

BRACKET, FUEL TANK REAR

44530-04K00

Unavailable

16

SCREW (6X24)

09139-06203

Unavailable

17

CUSHION (8X18X16)

09320-08089

Unavailable

18

BOLT (6X100)

09103-06060

$2.61

19

SPACER,FUEL TANK RR

44561-18G00

$15.52

20

NUT (M6)

09159-06076

$2.80

21

HOSE, FUEL TANK DRAIN NO.1

44423-04K01

Unavailable

22

HOSE, FUEL TANK BRTHR NO.1

44424-04K01

$11.72

23

HOSE (5X8.2X530)

09352-50005-530

Unavailable

24

HOSE,FUEL TANK BRTHR NO.3

44424-15H11

$15.48

25

3 WAY

09367-06007

$3.17

26

HOSE

09352-12164-010

Unavailable

27

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

28

CLAMP

09403-20307

Unavailable

29

PROTECTOR, FUEL TANK

44283-06J00

$6.90

30

BRACKET, FUEL TANK FRONT RH

44561-04K00

$10.68

31

BRACKET, FUEL TANK FRONT LH

44571-04K00

$10.68

32

MOLDING,FUEL TANK (L:110)

44552-24B00

$13.26

33

CUSHION,FUEL TANK

44281-04K00

$6.08
