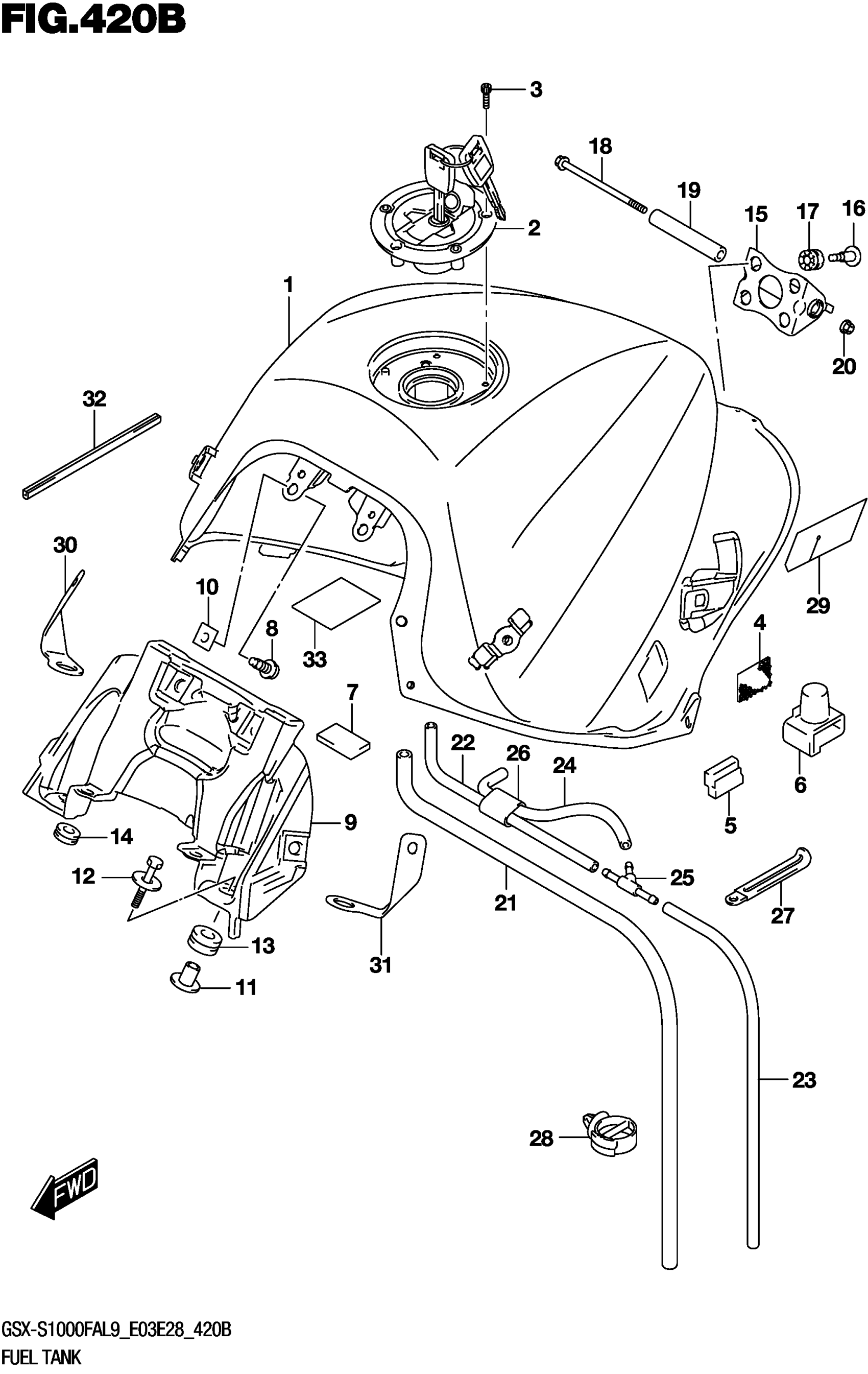

Suzuki GSX-S1000FAL9 (2019) FUEL TANK (GSX-S1000FAL9 E28) Diagram

#

Description
Price

1

TANK ASSY,FUEL (BLACK)

44100-04K40-YVB

$1,248.03

2

CAP SET,FUEL TANK FILLER

44200-17820

$218.08

3

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

4

FASTENER (33X25X2.6)

44572-13G00

$11.07

5

CUSHION, FUEL TANK SIDE

44541-41G00

$5.98

6

CUSHION, FUEL TANK REAR This part replaces 44542-04K00.

44542-04K01

$8.87

7

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.99

8

SCREW, FUEL TANK FRONT BRKT

44543-04K00

$4.22

9

BRACKET, FUEL TANK FRONT

44521-04K00

$94.98

10

NUT (M6)

44523-47H00

$10.02

11

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

12

BOLT (6X30)

09116-06172

$2.50

13

CUSHION (10X22X13)

09320-10050

$3.35

14

CUSHION (6X18X6)

09320-06504

$4.96

15

BRACKET, FUEL TANK REAR

44530-04K00

Unavailable

16

SCREW (6X24)

09139-06203

Unavailable

17

CUSHION (8X18X16)

09320-08089

Unavailable

18

BOLT (6X100)

09103-06060

$2.50

19

SPACER,FUEL TANK RR

44561-18G00

$16.96

20

NUT (M6)

09159-06076

$2.81

21

HOSE, FUEL TANK DRAIN NO.1

44423-04K01

Unavailable

22

HOSE, FUEL TANK BRTHR NO.1

44424-04K01

$10.38

23

HOSE (5X8.2X530)

09352-50005-530

Unavailable

24

HOSE,FUEL TANK BRTHR NO.3

44424-15H11

$13.72

25

3 WAY

09367-06007

$3.46

26

HOSE

09352-12164-010

Unavailable

27

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

28

CLAMP

09403-20307

Unavailable

29

PROTECTOR, FUEL TANK

44283-06J00

$6.10

30

BRACKET, FUEL TANK FRONT RH

44561-04K00

$9.47

31

BRACKET, FUEL TANK FRONT LH

44571-04K00

$9.47

32

MOLDING,FUEL TANK (L:110)

44552-24B00

$14.08

33

CUSHION,FUEL TANK

44281-04K00

$5.38
