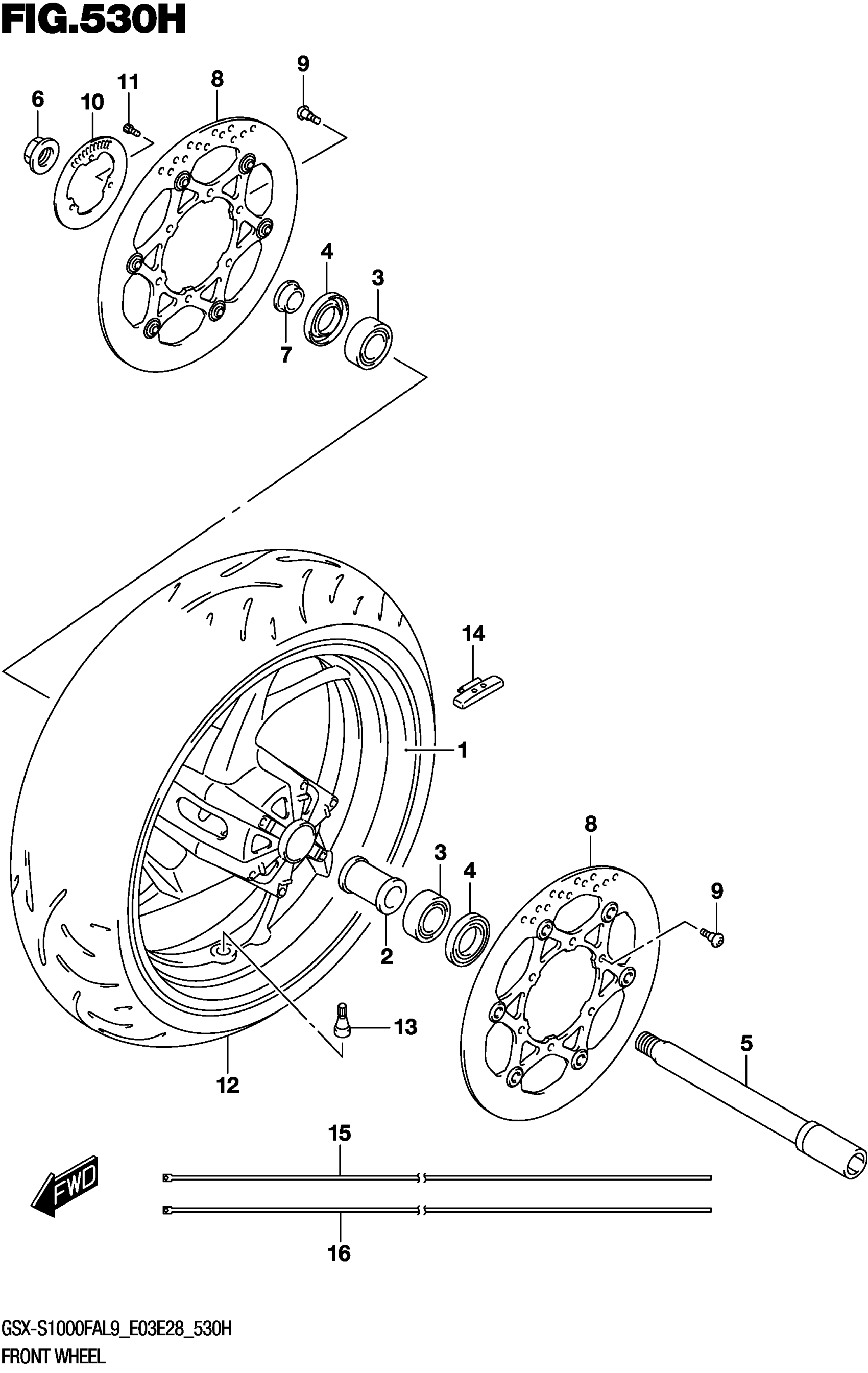

Suzuki GSX-S1000FAL9 (2019) FRONT WHEEL (GSX-S1000FZAL9 E28) Diagram

#

Description
Price

1

WHEEL,FRONT (17M/CXMT3.50,BLA This part replaces 54111-04K02-019.

54111-04K30-019

$644.58

1

WHEEL,FRONT (17M/CXMT3.50,BLA This part replaces 54111-04K02-019.

54111-04K30-019

$644.58

2

SPACER,FR HUB BEARING

54731-14J00

$21.58

3

BEARING This part replaces 09262-22035.

09262-22049

$43.81

4

SEAL,OIL This part replaces 09283-28016.

09283-28028

$9.13

5

AXLE,FR

54711-14J00

$143.18

6

NUT,RR SHOCK ABS BRACKET

62994-47H00

$42.02

7

SPACER,FR AXLE,L

54751-14J00

$18.33

8

DISC, FRONT BRAKE

59210-04K00

$330.48

9

BOLT (6X21)

09106-06124

$3.42

10

RING,SPEED SENSOR FR (50T)

54162-44H00

$23.73

11

BOLT

07130-0512A

$2.19

12

TIRE,FR(120/70R | D214F M T/L(R) This part replaces 55110-04K00.

55110-04K02

$262.18

12

TIRE,FR(120/70R | DUNLOP This part replaces 55110-04K00.

55110-04K02

$262.18

13

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

14-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

14-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

14-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47

15

TAPE, WHEEL RH

68251-04K00-BUM

$60.88

16

TAPE, WHEEL LH

68252-04K00-BUM

$60.88
